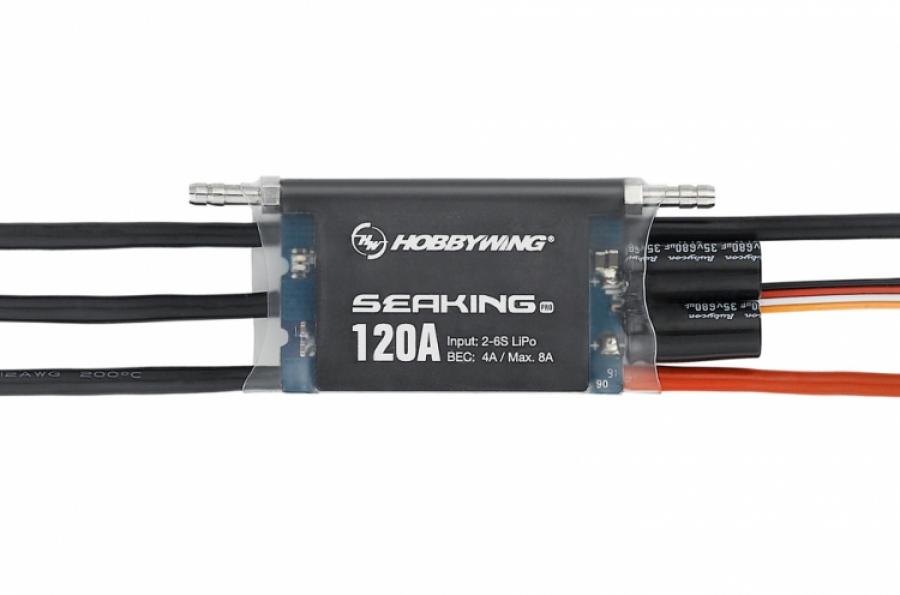

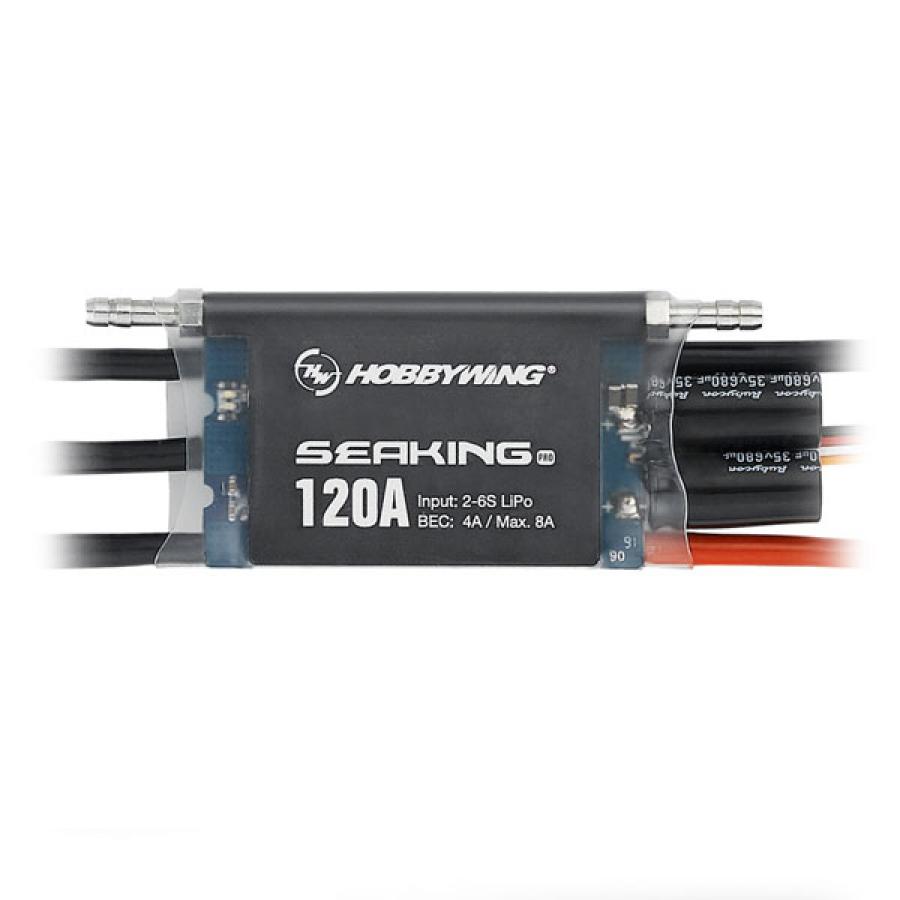

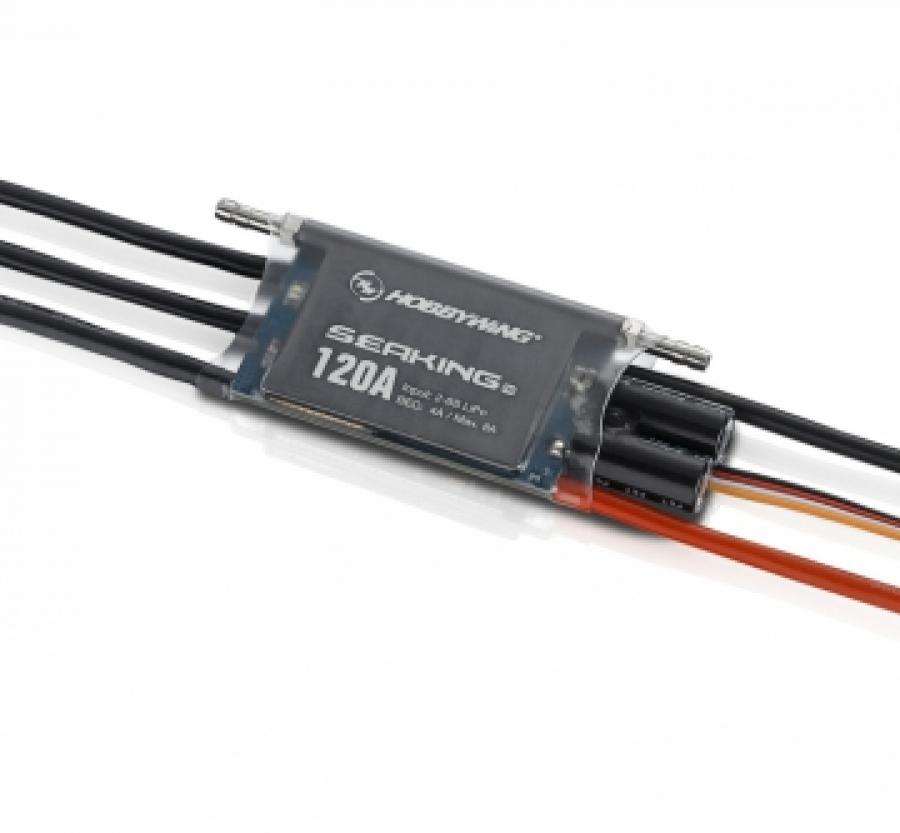

Hobbywing Seaking Pro 120A Marine ESC
Competition Design
The light-weight of the Pro 120A is designed to meet the users’ requirements of a light weight product for all marine competition which weight is a factor of speed and endurance. The core program for top-level competition products guarantees the user first-class control and “abundant” programmable parameter items for different competition environments. (* The ESC is especially applicable to ECO/MONO1)

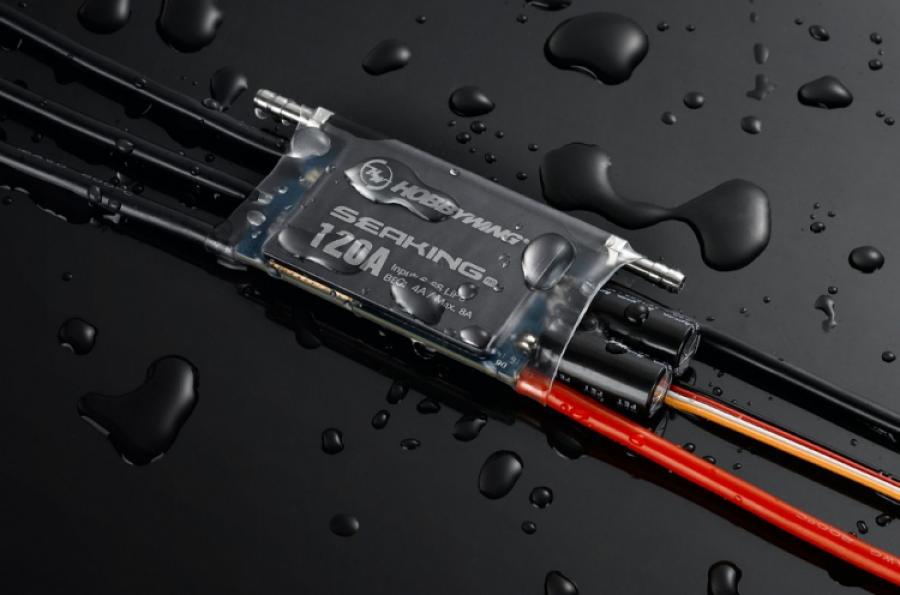

Splash-proof

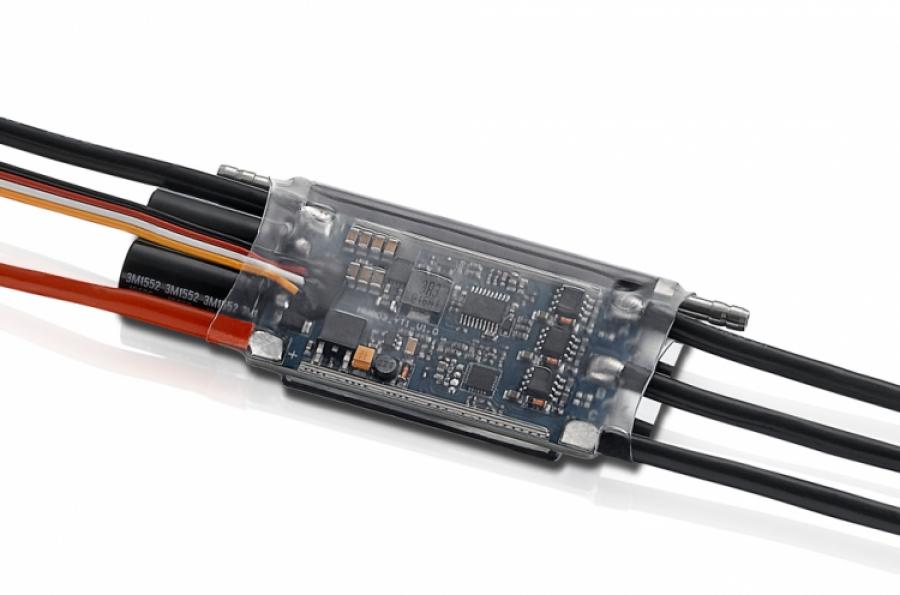

The whole circuit board and all the components on it have gone through nano-coating treatment; this makes the Seaking Pro 120A ESC splash-proof.
High Voltage Built-in BEC
The built-in switch mode BEC with a maximum output of 8A and adjustable voltage of 6V/7.4V make the ESC compatible with various high voltage servos.
High Durability & Reliability
Reliable hardware (i.e. MOSFETs with extremely low internal resistance) combined with advanced software (features low-voltage cutoff protection, thermal protection, throttle signal loss protection, and etc) guarantees the durability and reliability of the ESC and relevant electronic devices.
Innovative Turbo Function
The world’s first marine ESC to have implemented the turbo timing function which will give the user the edge over the competition with instant turbo boost.
Programming/Upgrading Wirelessly
With Hobbywing’s WiFi module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters or upgrade firmware without leaving the control stand.
Efficient Cooling System
The Hobbywing patented heat-conductive copper bar cover on the power board of the ESC combined with the water cooling module efficiently and effectively transfers heat to the outside thus keeping your ESC as cool as possible.
Regular Firmware Updates Free of Charge
You can upgrade the ESC with the Hobbywing WiFi/USB LINK software, a WiFi module/LCD program box and a smartphone /laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.
Click here to look at FAQ and Software Updates on Seaking Pro 120A ESC
Specifications
Brushed/Brushless: BL
Waterproof: Waterproof (IP55)
Cont./Peak Current: 120A/760A
Input Voltage: 2-6S Lipo/6-18 Cell NiMH
BEC Output: Switch Mode: 6V/7.4V,4A
Wires & Connectors
Input Wires: 12AWG 200mm
Output Wires: 12AWG 150mm
Input Connectors: No
Output Connectors: 4.0mm Gold Connectors (Female)
(Note: All the wire length above is the original length not the length you see from the outside.)
ESC Programing via
Transmitter: Supported
LED Program Box: Not Supported
LCD Program Box: Supported
WiFi Module: Supported
Program Port: Separate Program Wire
Firmware
Firmware Upgrade: Supported
Size & Weight
Size: 96.6 x 37.9 x 10.3mm
I.D./O.D. of the Water Cooling Pipe: ?2.0/5.5 mm
Weight: 87.5g
Applications
ECO, Mono1/Other Competition Boats (=100cm)
