Features

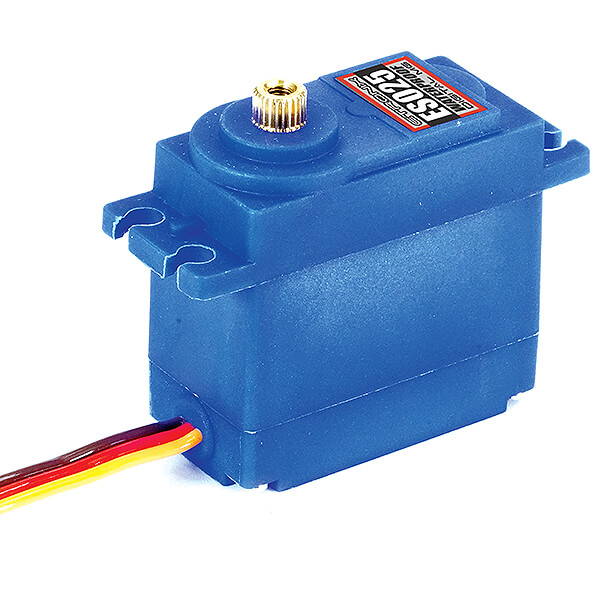

- High performance digital high voltage standard servo
- Dual ball bearings
- Waterproof
Specifications
- Dead Band: 3μs
- Working Frequency: 1520μs / 330hz
- Motor: DC motor
- Gears: Metal
- Spline size: 25T
- Operating Speed 4.8V: 0.22sec/60°
- Operating Speed 6.0V: 0.20sec/60°
- Operating Speed 8.4V: 0.16sec/60°
- Stall Torque 4.8V: 22kg.cm
- Stall Torque 6.0V: 25kg.cm
- Stall Torque 8.4V: 30kg.cm
- Dimensions: 40 x 20 x 40mm
- Weight: 64g
- Connector Wire Length: 240mm
