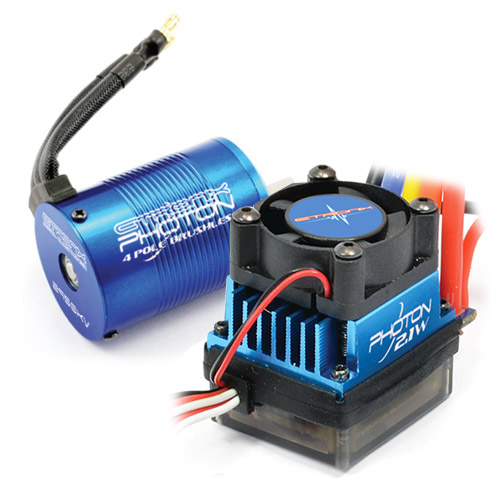

Etronix Photon 2.1W Combo With 13.0R/2950Kv Motor/45A Esc

Valmistaja: Etronix
Iskariöljy
120,03 €
star star star star star
Tuotteen lähetysaika 6-12 arkipäivää
-
+
Lisää ostoskoriin Lisää ostoskoriin

wishlist Lisää toivelistalle


Numero: ET0410
Tuotemerkki: Etronix

Tekniset tiedot Arvostelut

Tekniset tiedot

The convenience and performance of brushless technology is available for everyone with the Photon Sensorless Weatherproof System from Etronix. Simple to set-up and with a range of sensible KV rated motors for most r/c car applications and abilities the Photon is the ideal brushless start-up package or upgrade from a stock brushed set-up. An ideal choice for any 1/10th buggy, truggy, short course or truck application.

With the supplied programmable set up card (ET0107) the user can finely tune ten different parameters within the ESC to suit their particular needs.

When choosing your new ESC/ESC and motor combo, please take note of the relevant motor and battery cell count limits.


ESC Motor Limit:

  • 2S Battery - 4350KV
  • 3S Battery - 2950KV
  • 4S Battery - Not Compatible

Adjustable Parameters

  • Supplied with (ET0107) Etronix Photon SBS LED Programming Card
  • Cutoff Voltage (automatically detects the number of cells)
  • Running Mode (forward w/o reverse, forward/reverse, forward with pause then reverse)
  • Motor Timing (very low, low, normal, high, very high)
  • Initial Acceleration (low, medium, high, very high)
  • Throttle Percent Reverse (20% through to 100%)
  • Throttle Limit (0% through to 90%)
  • Percentage Braking (10% through to 100%)
  • Percentage Drag Brake (0% through to 30%)
  • Motor Rotation (normal, reverse)
  • Neutral Range (deadband setting 2% through to 10%)

Specifications

  • 2-3S Lipo
  • 5-10S NiMH/NiCd
  • 2A 6V BEC Output
  • 4 Pole sensorless brushless motor
  • 45A Constant current
  • 260A Burst current
