GMADE 1/10 GS02F KOMODO Double Cab TS Kit

GM57010 - 1/10 GS02F KOMODO Double Cab TS KIT

ASSEMBLE KIT

Radio Control / Electric

Performance

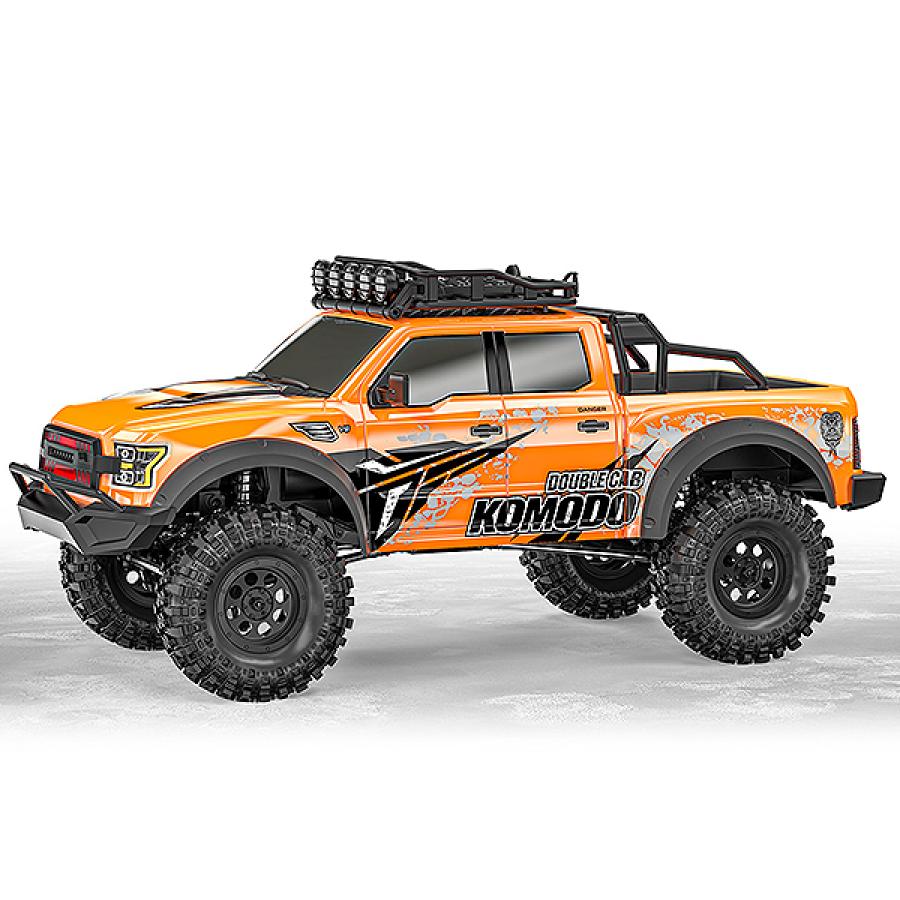

Shown with custom painted body.
Included body is clear.

EQUIPMENT NEEDED (not included)

Frame

Steel Ladder Frame

GS02F frame is designed to look as a chassis of a real car frame and the material of the frame is made of high strength steel, C-channel side rail and is with hex wrench bolted with cross members, which make it resistant to twisting or wraping.
Also, steel parts are black powder coated finish to prevent rust.

Inner Fenders

The inner fender is directly fixed to the frame to reduce the flex and bending of the chassis and parts, it also reduces external objects to entering to the chassis during driving.

Adjustable Wheelbase

GS02F chassis allows three type of easy adjustment of wheelbase convert kit to use any type of 313 and 324mm custom bodies. (optional link kits are sold separately)

Front Weight Balance

GS02F's weight balance designed to be placed on the forward of the chassis.
This will increase the tire tracktion to the front wheel to provide better crawling on a high tilt angle rocks and better driving performance when hill climbing and this will help minimizing the vehicle's rolling over when climbing.

Front Mounted Motor

Able to use 540 or 550 size motor with cooling fan with option.
The motor is designed to mounted in front of the chassis, so it can increases more tire traction to the front side.

Multiple Battery Locations

GS02F can use all sizes of lipo batteries and Ni-MH batteries, and can be freely locate the battery position purpose of uses.

Chassis Mounted Servo System with Panhard Bar

GS02F steering system has a steering servo on the frame just like a 1:1 real car.
It is designed to make it as closed to the zero bump steer so bump steer movement does not appear by front wheel suspension movements, so we ended up with maximizing the steering performance of the vehicle.
In addition, the Panhard-bar is designed to avoid interference with nearby parts, so that the front suspension and shocks can move freely without any loss.

Drivetrain

Drivelines

The drive lines of the front and rear axles are arranged in straight-line to reduce the fatigue stress of the universal shaft and reduce the loss of driving power by providing efficient driving lines.

Transmission

The GS02F transmission is designed to look as a real 1:1 scale vehicle, and provides the best performance according to the driving situation.

Overdrive

Overdrive means, front and rear wheels rotate at the different speeds.
The GS02F transmission is designed to rotate the front wheel faster than the rear wheel.

Better Steering Radius

Vehicles with overdrive on the front axle has an improved steering radius compared to non-overdrive vehicles, making it easier to control when driving on the rough surfaces.

Better Climbing

Increasing of the tire traction allows the vehicle to pass through steep slopes and obstacles without lifting the front of the body upward.

2-Speed HI/LO Transmission

The 1st gear is for hardcore rock crawling and the 2nd gear is for hill climb or high-speed driving.

Torque Twist Reduce Transmission

GS02F transmission is designed to drive in a stable position without pulling the balance of power transmitted to the axle.
The front and rear universal shafts based on the transmitter each rotates clockwise and counterclockwise, this compensates for the forces acting on the opposite rotational forces due to the action(torque) and reaction(reverse torque) because of that this vehicle can run in a super stable conditions.

Easy Adjust Motor Mount

You can easily replace and install the motor pinion gear to changing the gear ratio.

Dual Slipper Clutch

The slipper pads are designed to hold the spur gears evenly to allow more precise setting.

All Metal Internal Gears

Hardened Carbon Steel Universal Joints

The front and rear universal shafts of the steel joints provides smooth and stable power train.
The kit also includes the spare parts that allows you to adjust the length of the universal shaft.

GA44 Axle

GA44 axle is designed with the hardcore rock crawler in mind.
Axles are made of high-strength meterials, and it will look and perform optimum off-road perfermance as real 1:1 vehicle when 4-Link suspensions added.
The GA44 axle housing is a durable one-piece type.
The angle of the differential cover is designed to reduce the risk of damage due to frontal impact and is therefore very suitable for off-road driving.

Kingpin Angle

Keeping the scrub radius to a minimum to let your steering servo work at it's full potential and increases the steering efficiency.

Hi Steer Knuckle Arm

By increasing the approach angle, you can over climb the obstacles more easily than a typical trial trucks.

Adjustable Castor

The GA44 front axle can be adjusted to the steering style to have a smooth and short turn angle depending on the driving style or to adjust to improve straight stability by changing the caster angle.

Zero Ackerman Steering

The GA44 axle is using Zero-ackerman steering system with CVA to ensure maximum performance with a short turn radius and smooth motion even on rough off-road terrain.

Suspension

SD Scaler Shock Absorber

SD Scaler Shock is a Coil-over styled oil shock absorber optimized for the scale trucks.
The oil filled inside the shock minimizes splash when the vehicle is driven, and provides a high-durability aluminum shock body with 3.5mm heavy duty shock shafts are added, these will help you to drive roughly on rough surfaces.
Beginners also can easily assemble this shock and change setups, and the adjustable nut makes it easy to adjust the ride-hight so you can quickly change your car setup even when driving condition changes.

Wheels & Tires

MT-1903 1.9 INCH M/T Off-Road Tire

MT 1903 off-road tire made of super soft compound material provides high traction to the surface.
The treads of tire pattern are suitable for off-road driving and are designed with large diameter that enables to run smoothly on any
uneven road surface.

Specifications

Tire Height: 109mm
Tire Width: 40mm
Inner Diameter: 48mm (1.9")

1.9Inch NR03 Wheel

Width: 23mm
Diameter: 48mm (1.9")
Offset: 0.5mm positive offset
Hex mount: 12mm

Exterior

Komodo Double Cab Lexan Body

Komodo double cab body is made of 1.5mm thick high quality lexan and designed in pickup truck platform came out with strong and stylish detail body.
Includes a grille, light bucket, side mirror, wiper grille and bumper and roll bars for off-road adventure concepts that add body detail, allowing you to tune to the look of a real off-road truck.
Accessory parts are made of high-strength plastic and are extremely strong in impact and includes decals with realistic details.

Stealth Body Mount

This mount allows the body to be secured to the chassis without drilling unnecessary holes in the body, increase the realistic scale of the vehicle.

Specifications
