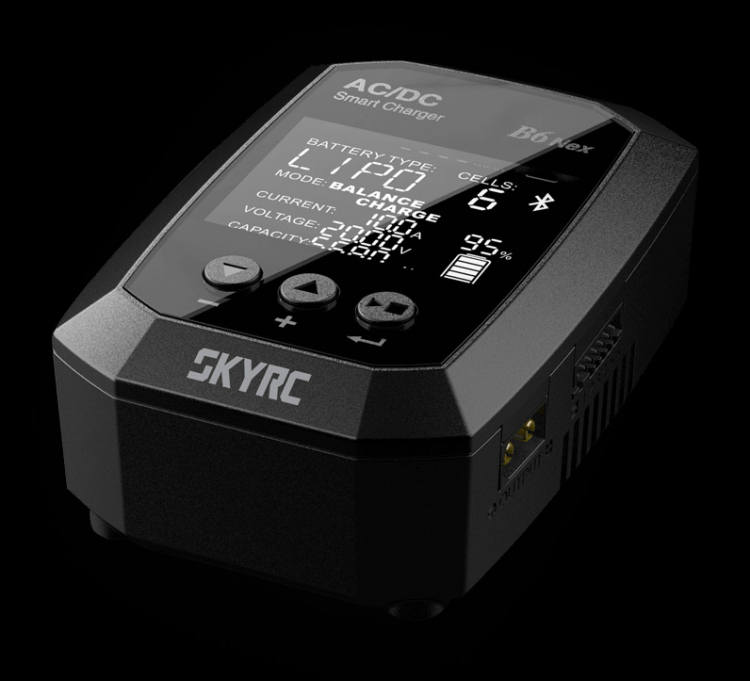

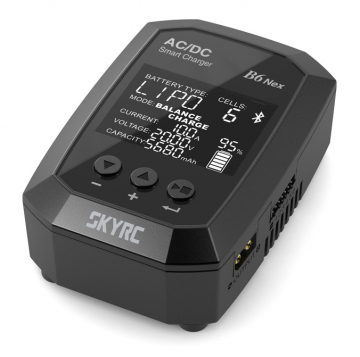

SkyRC B6 Nex - Multi-Purpose AC/DC Charger/Discharger
Building
on the success of our iconic legendary iMax B6, the SkyRC B6 Nex, is a
high-performance solution designed for hobbyists.
With the dual
power AC/DC input, B6 Nex can charge the 1-6 cell Li-ion or LiPo
batteries at a maximum charge current of 10A. The built-in Bluetooth 5.0
enables B6 Nex's connectivity with smartphones. The app can push
notifications reminding users that charge or discharge is completed or
there is a firmware upgrade. With B6 Nex, charging becomes a faster and
more convenient experience!
B6 Nex Features:- LiHV Battery Mode
- Battery Voltage Meter
- AC/DC Input
- Program Data Store/Load
- Bluetooth 5.0
- Max 200W
- XT60 Charge Port
- Terminal Voltage Control
Small in size, Big on powerThanks
to the lightweight structure and optimized firmware, B6 Nex can fit
into your pocket. The maximum power of B6 Nex can reach up to 200W.
On the cutting edge with GaN PowerBy
replacing silicon with gallium nitride, we’ve been able to implement
our proprietary charging algorithm and optimal thermal dissipation
technique to shrink its size, minimize the temperature rise, delivers
more power, further than ever before! Charging is a breeze!

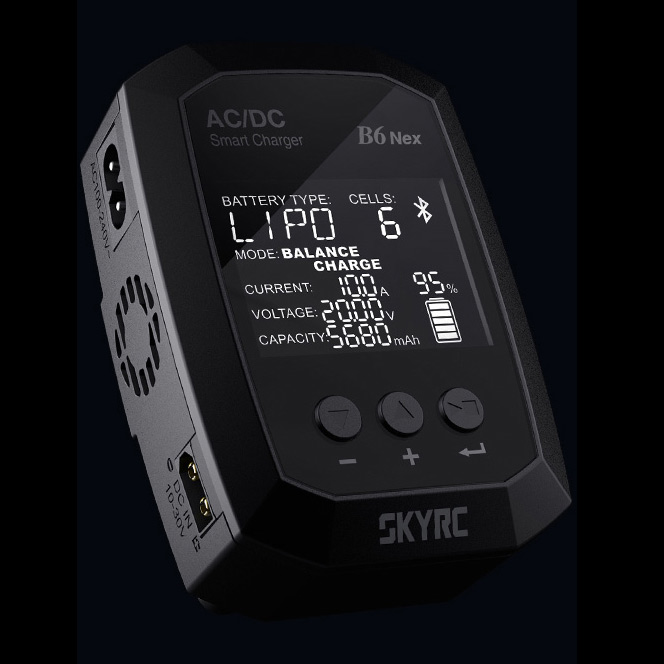

Stunning VA display: everything at a glanceMenu navigation is made easy with the intuitive three-button control interface.
With
the stunning backlit 2.4-inch VA screen, large viewing angle, high WBC,
rapid response, all information is clear at a glance
AC/DC Dual Power InputB6 Nex comes with both AC and DC power input, which can meet you on power supply in different circumstances.
AC input (100-240V)- B6 Nex can deliver is 50W
DC input (10-30V):- B6 Nex can deliver up to 200W
Multi-purpose for Most Battery ChemistriesThe
juice box comes with the charging algorithm for the most common battery
chemistries: LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCD, and Pb (lead acid).
Scan to go. Charge on the go.A
unique feature of the B6 Nex is SCAN TO GO (automatically charging
system): with the SkyCharger app, a unique QR code sticker can be
printed and pasted on the battery. Since all the essential information
is stored in the QR code, all you need to do is to scan the QR code, and
the charge or discharge process will start automatically.
Adjustable Cut-off VoltageYou
can set charging cut-off voltage according to your needs. Furthermore,
B6 Nex can memorize the last setting parameters (for professional
players only).
Smart & Efficient CoolingTemperature-controlled
12000rpm high-speed sleeve bearing cooling fan effectively blows the
air through the extruded aluminum heat sink, cooling the unit down.
We are Certified, We are Qualified!B6
Nex comply with the laws and regulations into each country we ship. Our
products are designed, tested and approved to meet worldwide standards
for Product Safety, Electromagnetic Compatibility and other regulatory
compulsory requirements, when used for their intended purpose.
A new generation of Bluetooth technology. Faster and more stable connectionB6
NEX has a built-in Bluetooth 5.0 chip which data transmission rate is 2
times higher than that of Bluetooth 4.0, and the connection is faster
and more stable.
Free App:Smart Phone
Control (both iOS and Android) The free SkyCharger App unleashes tons of
features and advanced settings, which tremendously expands the user
experience of B6 Nex.
Click or Scan to download App- Requires iOS 9.0 or above
- Requires Android 8.0 or above
Wireless firmware upgradeThrough
the smart app, the charger can be quickly upgraded wirelessly. There is
no need to buy an expensive legacy data cable for firmware upgrade
through a computer. The firmware upgrade is made easy with the
smartphone.
Prompt push notificationsWhen
charging or discharging is completed, the app automatically pushes to
remind the user that the process is completed. The user will get a push
notification whenever there is a software upgrade.
Dual Power InputWith
dual AC/DC power input, this charger is suitable for charging and
discharging of LiFe/ Lilon/ LiPo/ LiHV/ NiMH/ NiCd/ PB batteries.
Protection is built-in such as high/low input voltage, and input/output
reverse, reverse polarity protection.
Specs:- Case Material: Plastic

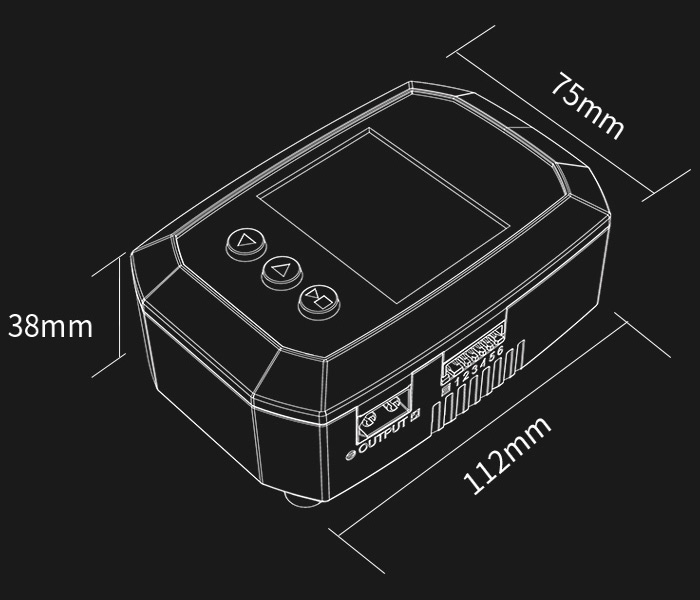

- Case Size: 112x75x38mm
- Weight: 237.7g
- External Port: 2-6S Balance Socket-XH,Battery Socket, DC Input, AC Input
- Buttons: Increase Button, Decrease Button, Start/Stop Button
- DC Input: 10-30V
- DC Charge: 200W
- DC Discharge: 10W
- AC Input: 100-240V (50-60HZ)
- AC Charge: 50W
- AC Discharge: 10W
Battery Types/Cells:- LiPo/LiIon/LiFe/LiHV: 1-6cells
- NiMH/NiCd: 1-15cells
- Pb: 1-10S(2-20V)
Battery Capacity Range:- NiMH/NiCd: 100-50000mAh
- LiPo/LiIon/LiFe/LiHV: 100-50000mAh
- Pb: 100-50000mAh
Charge Voltage:- NiMH/NiCd: Delta peak detection
- LiPo: 4.18-4.25V/cell
- LiFe: 3.58-3.7V/cell
- Pb: 2.4V/cell
- LiIon: 4.08-4.2V/cell
- LiHV: 4.25-4.35V/cell
- AGM/COLD: 2.45V/cell
Discharge Cut-off Voltage:- NiMH/NiCd: 0.1-1.1V/cell
- LiPo: 3.0-3.3V/cell
- LiFe: 2.6-2.9V/cell
- Pb: 1.8V/cell
- LiIon: 2.9-3.2V/cell
- LiHV: 3.1-3.4V/cell
- Charge Current: 0.1A-10.0A
- Discharge Current: 0.1A-2.0A
- Balance Cells: 1-6 cells
- Balance Current: 1000mA/cell Max
- Safety Timer: 1-720minutes off
Charge Method:- CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.
Supports 11 Languages:- Simplified Chinese
- Traditional Chinese
- English
- Japanese
- Spanish
- Swedish
- Polish
- French
- Czech
- Italian
- German
- Norwegian (Bokmål)
Bluetooth connection:- Bluetooth 5.0
- APP support operation
- charge and discharge complete push notifications
- Upgrades
Working and Storage:- Operating temperature: 0?-40?
- Working humidity: 0%-75%
- Storage temperature: -10?-70?
- Storage humidity: 0%-75%
