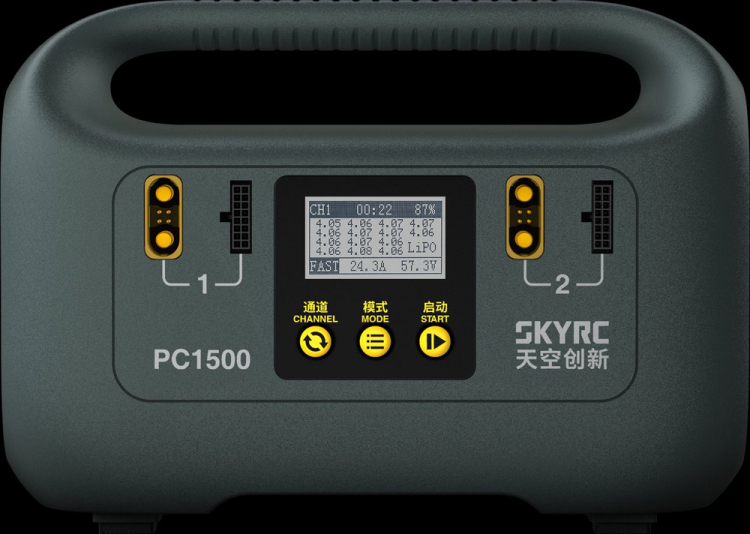

Laturi SkyRC PC1500 Charger LiPo/LiHV 12S/14S 9A/25A 1500W 220AC

596,90 €

Tuotteen lähetysaika 4-6 arkipäivää

Lisää ostoskoriin

Lisää toivelistalle

Tuotekoodi:	SK-100173
Numero:	SK100173-01
Varastopaikka:	0.0

Tekniset tiedot Arvostelut

Tekniset tiedot ∨

SKYRC PC1500 - 25A 12/14S Charger for Agricultural Drone Batteries (CAN bus)

PC1500 is a smart charger that integrates CAN communication for smart batteries and ordinary lithium batteries. It can connect two batteries at the same time. The charger's maximum output power is up to 1500W, with three modes of Fast(Fast Charge)/Charge(Slow Charge)/Storage. Batteries with customized CAN communication can recognize the charger instantly. Charging operation is convenient and straightforward, and better user experience is delivered.

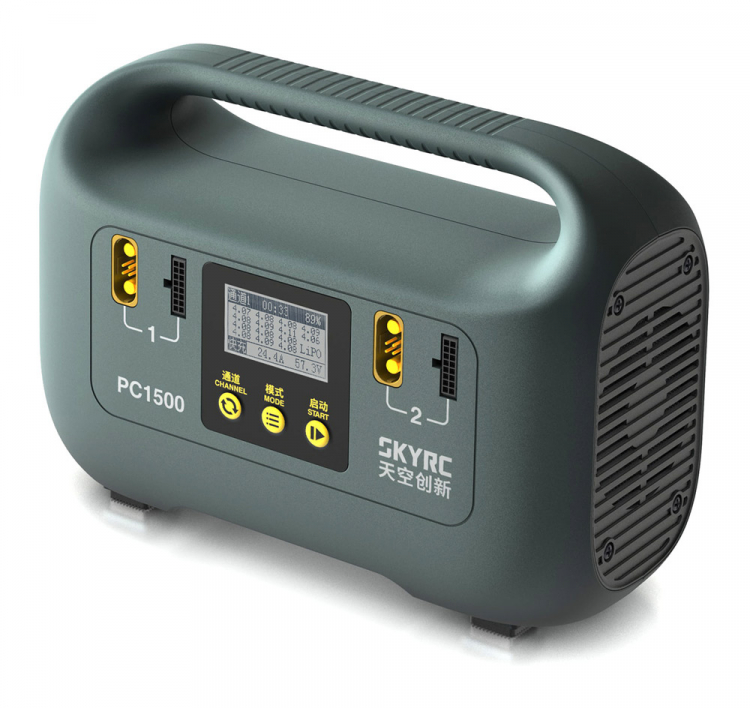

Intuitive Operation Interface
Routine charging is made easy by the simple and intuitive interface with the operation procedure simplified. Users only need to select Fast(Fast Charge)/Charge(Slow Charge)/Storage and press the Start button to get the job started.

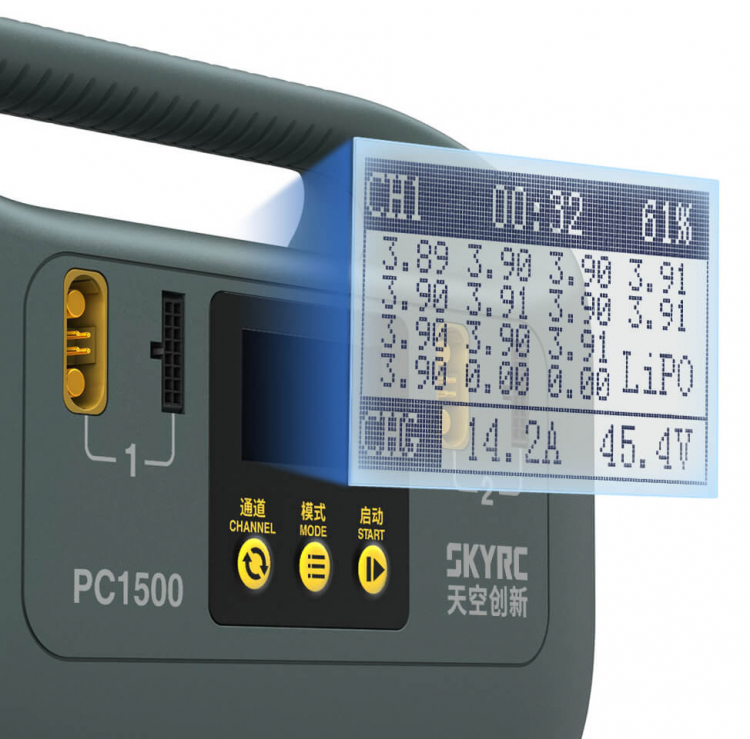

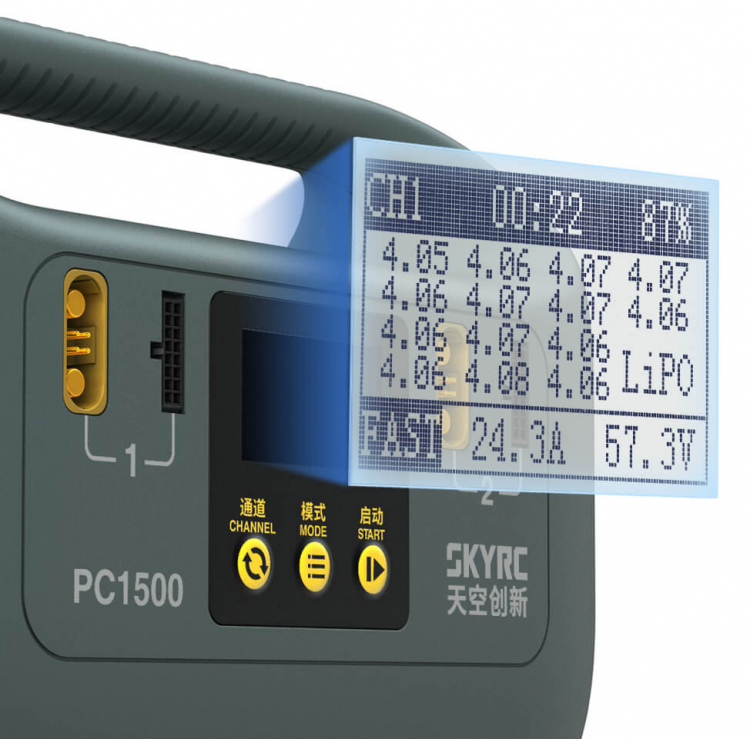

LCD Display
Real-time charging data at a glance! During the charging process, the display screen displays charging time, battery power percentage, and every single cell's voltage in real-time.

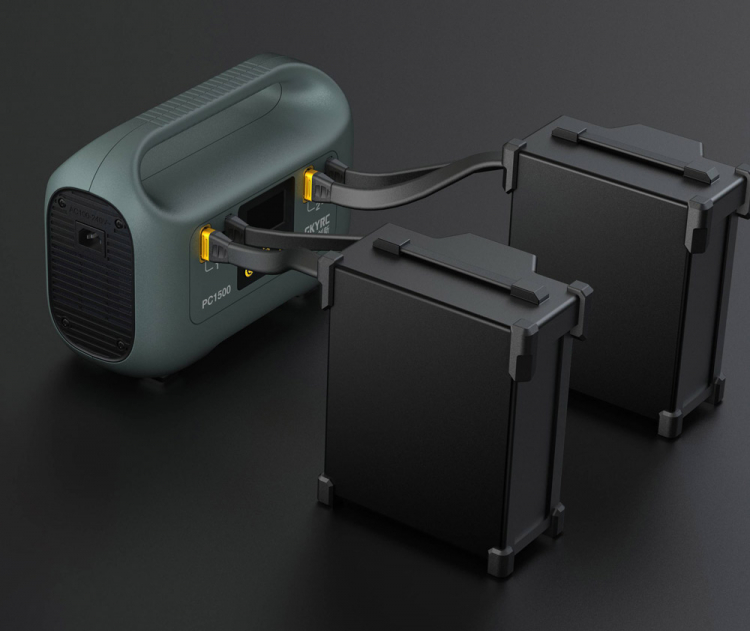

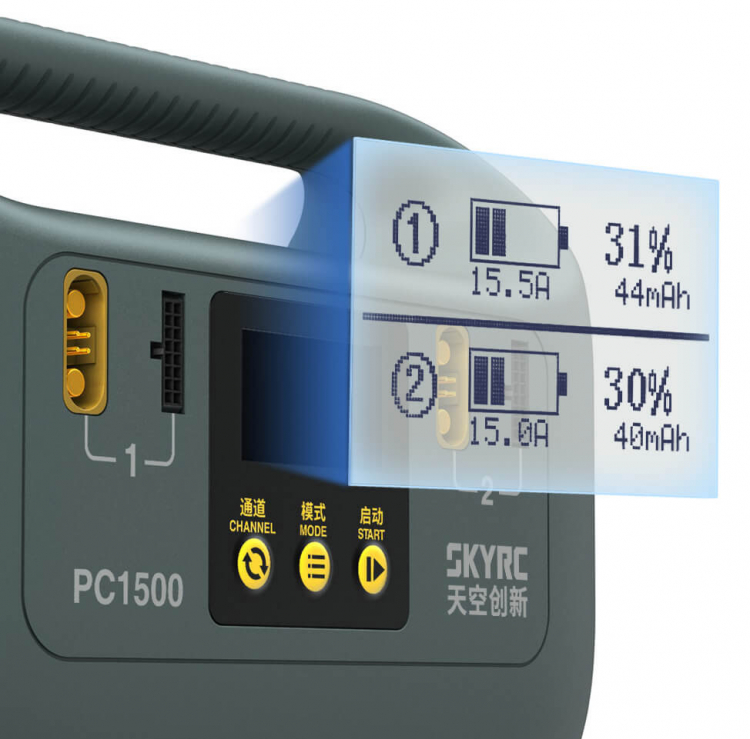

High Performance with Dual Channels
With high-power and dual channels, two batteries can be charged simultaneously in slow charging mode at a maximum charging power of 1500W.

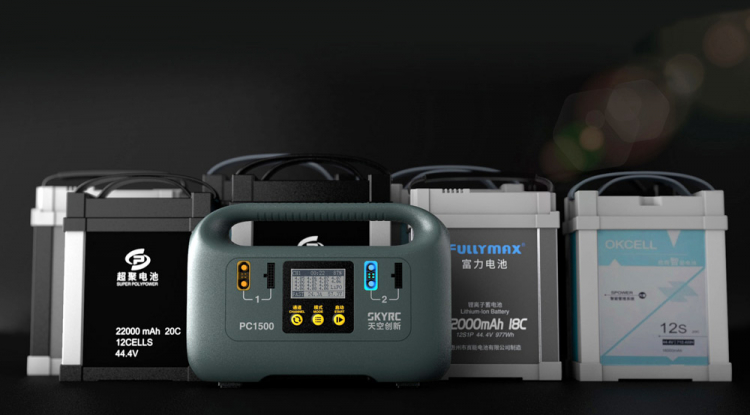

Compatibility of CAN
PC1500 charger is with built-industry CAN Bus communication. Smart batteries and lithium batteries with balance ports can be charged.

Better Protection with Conformal Coating
Anti-corrosion paint is applied to protect the key circuit's electronic components from extreme environments like moisture, mildew, and smoke corrosion. The charger's reliability and stability are ensured for outdoor work.

Multiple Protection:

Short Circuit Protection
Reverse Polarity Protection
Over-temperature Protection
Customers can rest assured of our quality safety and reliabilit

SPECIFICATIONS

Material: Plastic (Flame Retardant PC-ABS)
Size: 294 x 136 x 212mm
Weight: 4.2Kg
Power Supply: AC Input 100-240V
Charging Power: 1500W
Battery Type: Lithium Battery
LiPo Battery Cells: 12S/14S
LiHV Battery Cells: 12S
Fast Charge Current: 25A
Slow Charge Current: 25A
Discharge Power：60W
Charging Mode：Fast charge, Slow, Storage
Working Temperature: 0℃-40℃
Working Humidity: 0%-75%
Storage Temperature: -10℃-70℃
Storage Humidity: 0%-75%

Weight:	4200 g
Input Voltage:	100-240VAC V
Dimensions:	294x136x212 mm
Charge Current:	25A
Charges (Li-Po):	14 Cells
Charging (Battery type):	Li-Po, LiHV
Output:	1500W
Special Functions:	CAN bus
