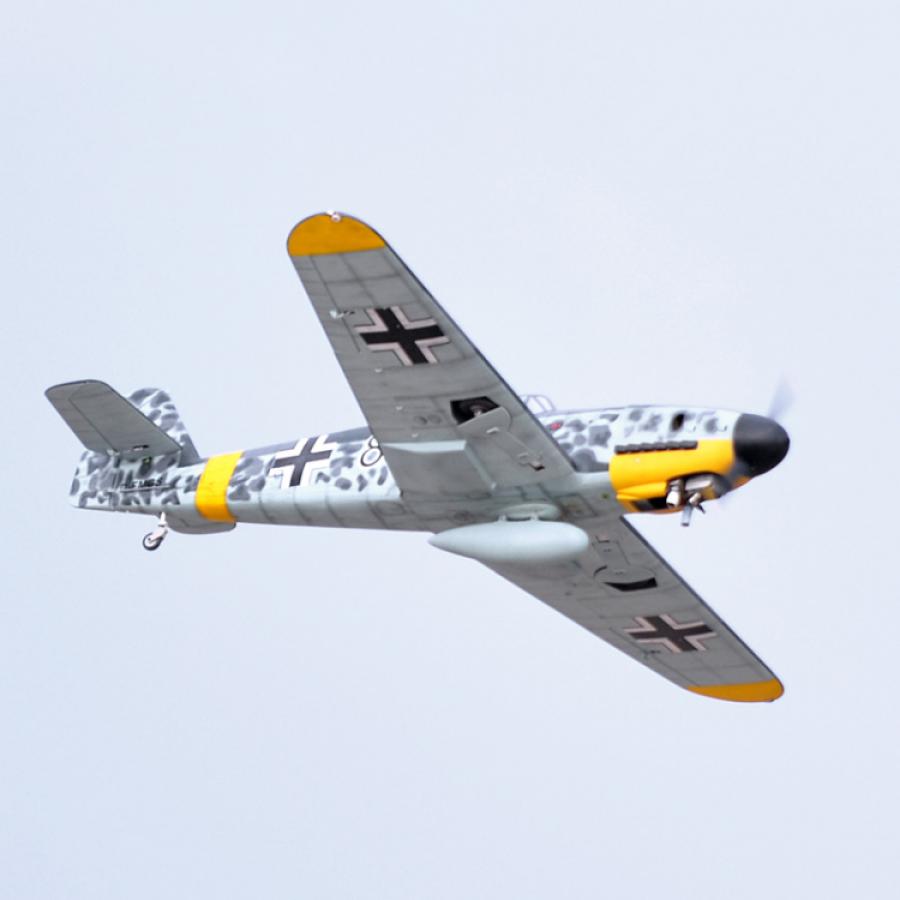

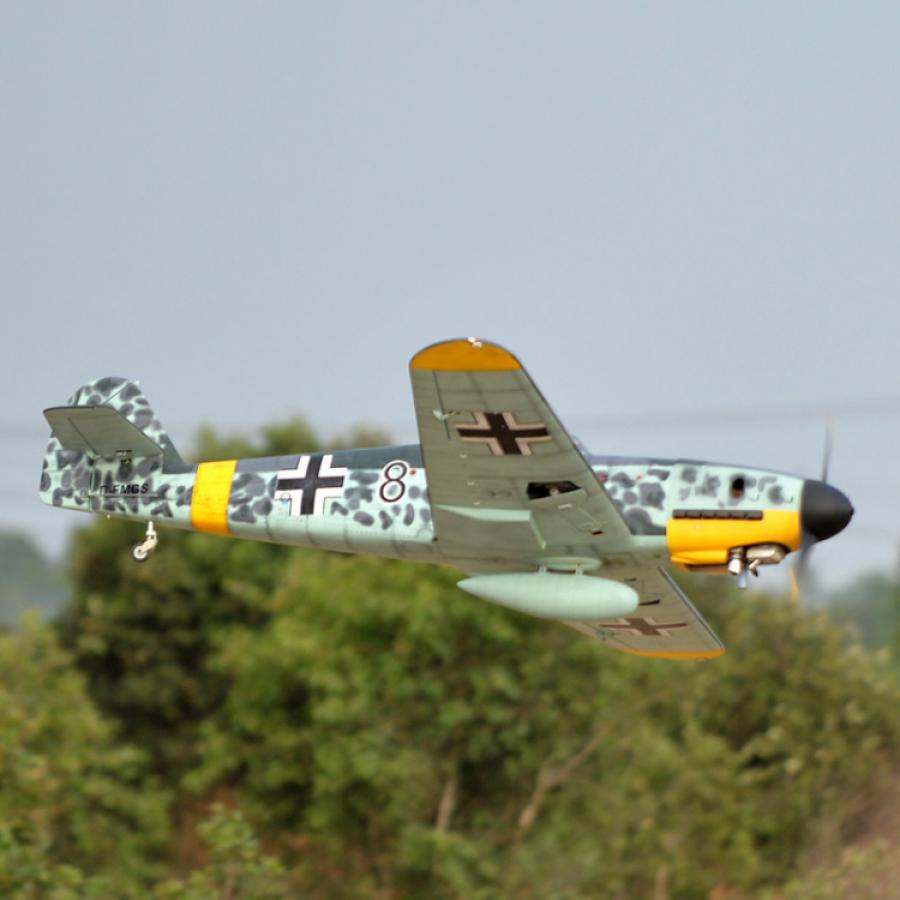

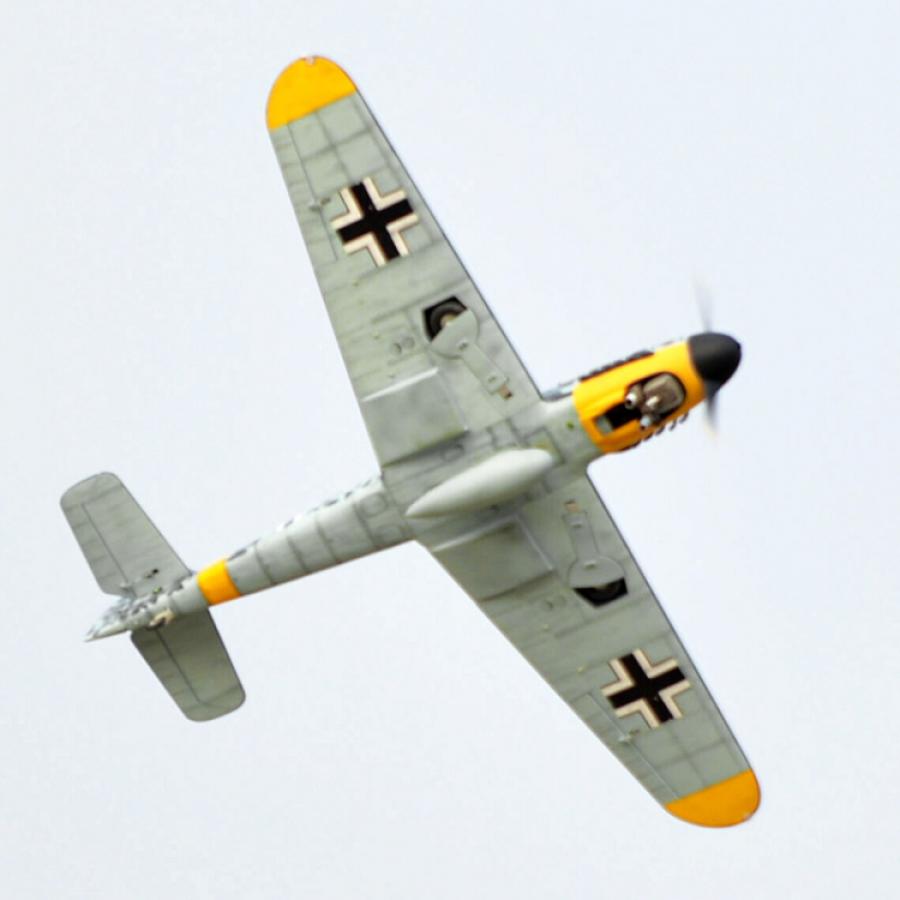

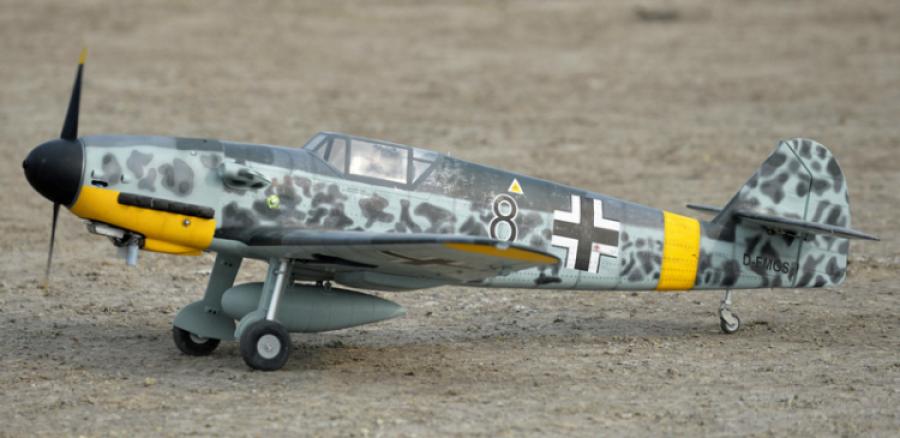

Black Horse BH188 - Messerschmitt BF 109G - Glow and EP - ARF
- ALL BALSA – PLYWOOD CONSTRUCTION
- COVERED IN PRINTED HEAT-SHRINK FILM
SPECIFICATIONS:
- Wingspan: 2255mm
- Length: 1964mm
- Weight: 9.5–10.5kg
- Wing area: 81.6 dm2
- Wing loading: 128 g/dm2
- Wing type: Naca Airfoil
- Spinner: 150mm
- Servo mount: 42x21mm - For elevator: 37x16mm
- Main gear type: Electric retract gear with oleo struts for main gear (included)
- Tail gear type: Oleo struts for tail gear (included)
- Engine: 55-65 cc gas
Parts listing required (not included):
- Radio: 7 channels minimum
- Servos: 8x standard high torque servos + 2 standard high torque mini servos (size 35x15mm for elevator)
Electric Conversion:
- Motor: Brushless outrunner 5000 – 6500W, 180KV.
- Recommended motor: Admiral GP60 8925-180KV Brushless
- Propeller: Suit with your engine
- Lipo cell: 12 cells 5500–6000mAh
- Receiver battery: 6-7.4V, 2600-3200mAh (3 Packs)
- ESC: 120A
