| Tuotekoodi: | 060-0082-00 |
|---|---|
| Numero: | CC060-0082-00 |
| Varastopaikka: | 0.0 |
| Tuotetyyppi: | Harjaton moottori anturilla |
| Tuotemerkki: | Castle Creations |

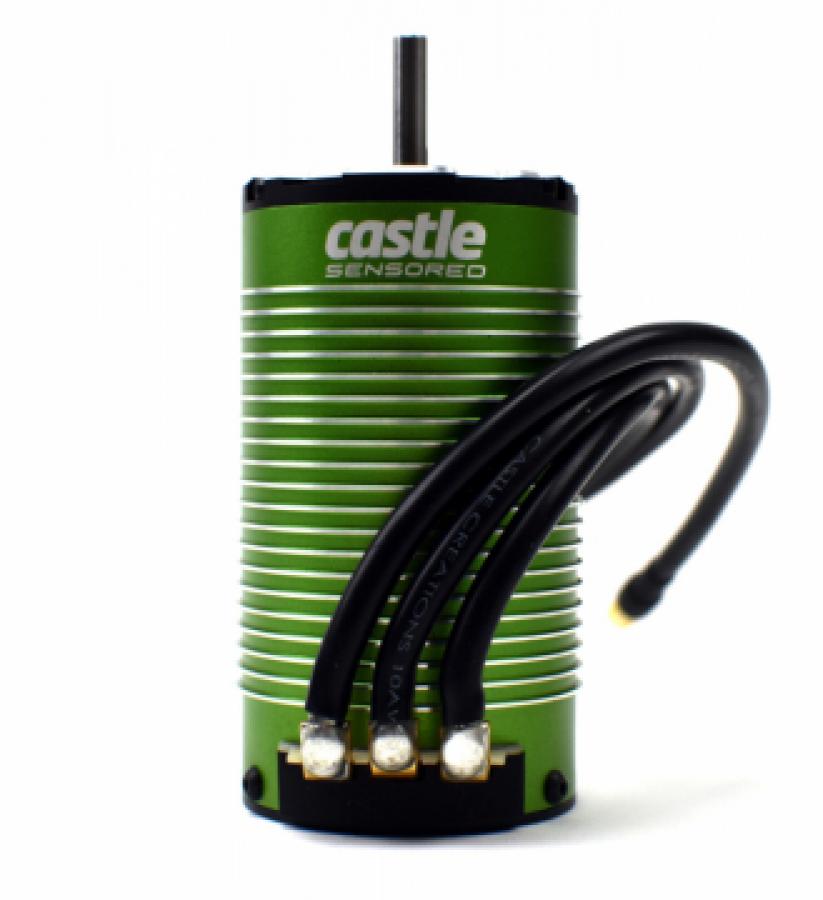

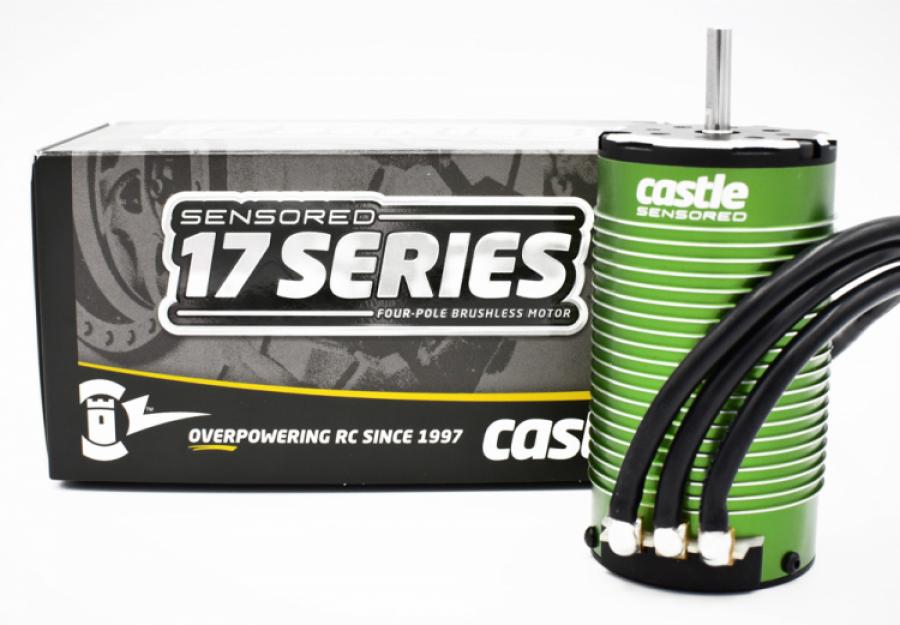

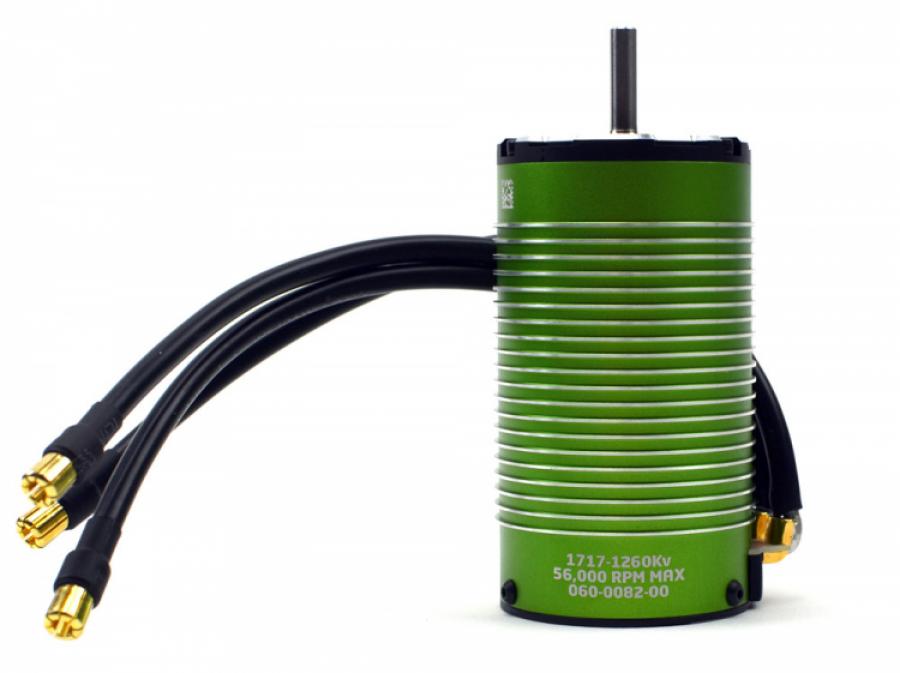

The Castle 1717-1260KV motor is a 4-POLE 12-SLOT design that boasts exceptional EFFICIENCY and produces LESS HEAT. This motor is a blast from the past with the added benefit of sensored capabilities! It is the perfect upgrade for any 1/6th scale vehicles weighing up to 20 lbs and running up to 8s LiPo; it is also a great upgrade for drivers looking for a reliable, high torque 8s motor for their 1/8th scale vehicles.
NOTE: The 1717-1260kv has a lower wattage/power rating compared to the 1717-1650kv; as such the 1260kv will run hotter than the 1650kv when geared for the same speed. For higher power applications (IE speed and drag setup), the 1717-1650kv is preferred with appropriate gearing.
Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the HIGHEST EFFICIENCY possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn’t put our name on anything less.
Application: Ideal for 1/6 scale vehicles up to 9kg running 6s – 8s LiPo; it is also a great upgrade for drivers looking for a reliable, high torque 8s motor for their 1/8th scale vehicles. Examples include Losi LST2-E; Traxxas: E-Maxx™, E-Revo™, UDR™, Summit™; Redcat Shredder™
Specs:
NOTE: The 1717-1260kv has a lower wattage/power rating compared to the 1717-1650kv; as such the 1260kv will run hotter than the 1650kv when geared for the same speed. For higher power applications (IE speed and drag setup), the 1717-1650kv is preferred with appropriate gearing.
Tech Notes:

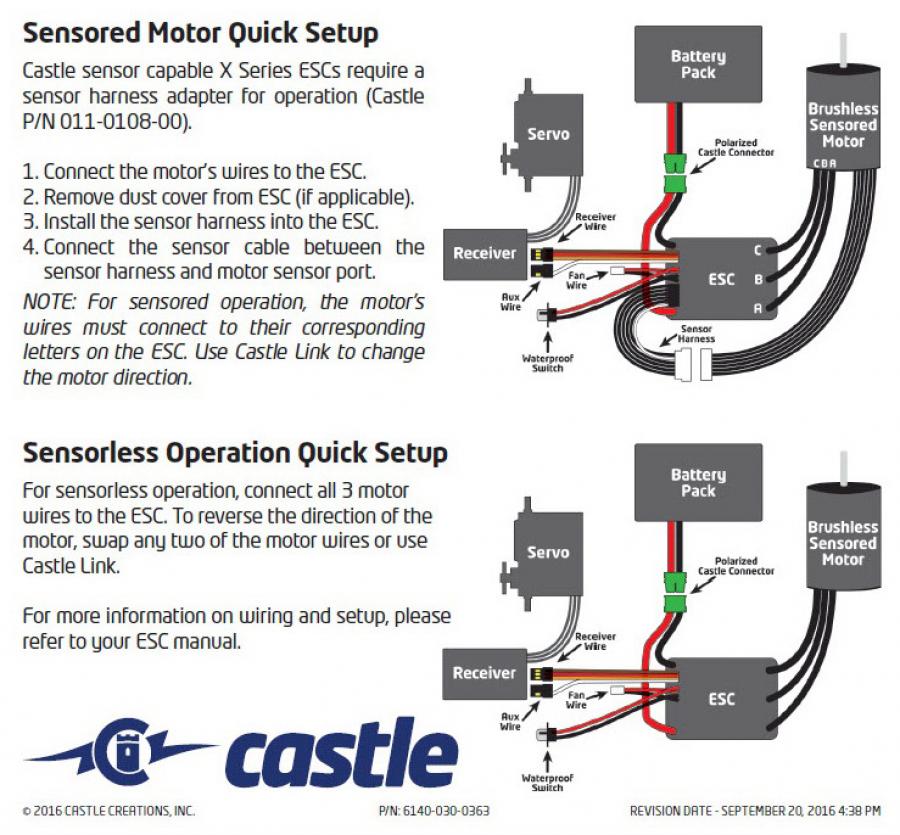

The 1717-1260Kv is a water resistant design. The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. We recommend applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
