SAVÖX SA-1256TG PLUS - Coreless Titanium-Geared High Torque Servo
The SA-1256TG-PLUS servo is a high torque servo and is perfect for those who are looking for a minimized backlash to use on flying surfaces of RC planes.
Features:
- New: Soft Start
- New: Sanwa SSR Compatible
- Titanium gears ensure long life, durability & lighter weight
- Minimized backlash for precision aerobatic airplane use
- Aluminum middle case to help with cooler operating temperatures
Specifications:
- Torque @ 4.8V: 16kg/cm
- Torque @ 6V: 20kg/cm
- Speed @ 4.8V: 0.18 sec/60 deg
- Speed @ 6V: 0.15 sec/60 deg

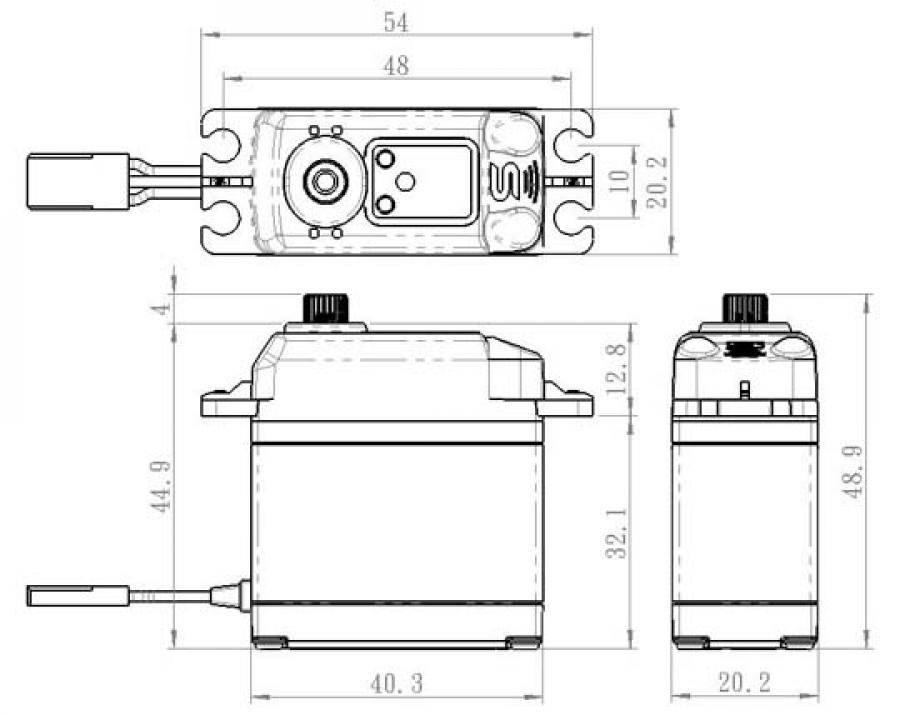

- Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
- Weight: 64g
Technical Details:
- Operating Temperature: -10° - 50°C
- Running Current (no load): 100mA @4.8V, 120mA @6.0V
- Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 200 +/- 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 ? 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 ? 2200 µ second
- Maximum Travel: Appx 130° (900 ? 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless
