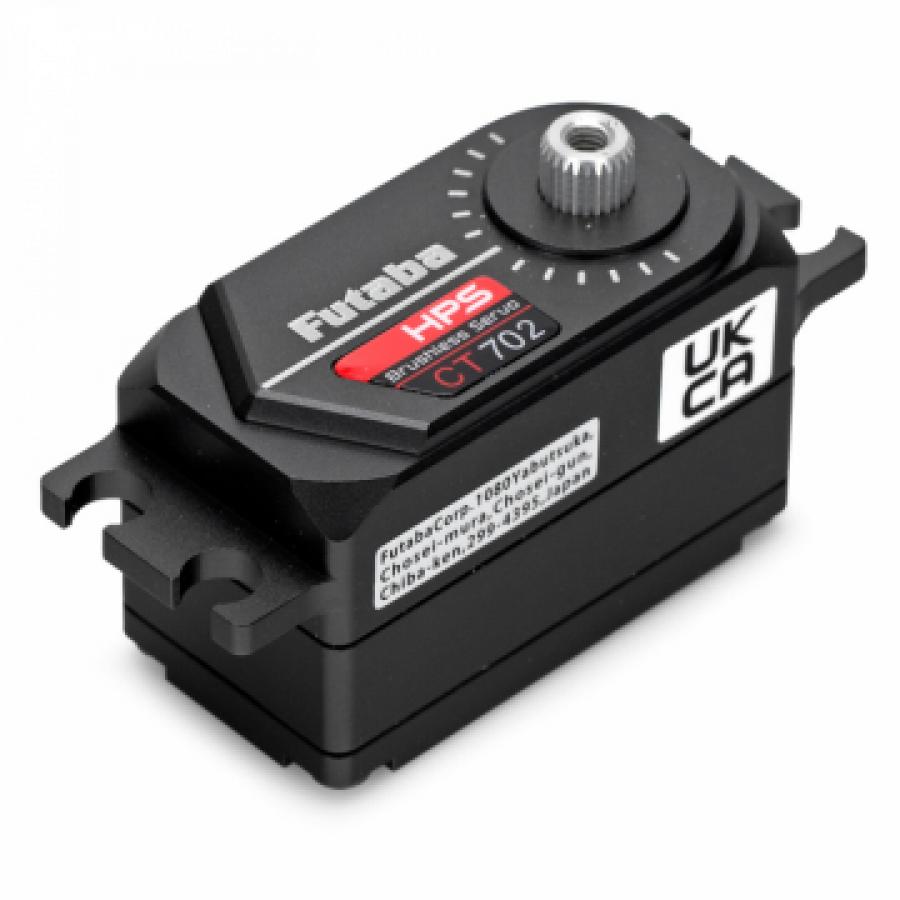

Futaba HPS-CT702 – S.Bus2 High-Voltage Low-Profile Surface Servo
High-Performance Servo with Brushless Motor
FEATURES:
- Suitable for RC cars 1/10 scale on/off road and drifting
- Programmable/HV Brushless Servo
- Custom New high power Brushless Motor
- Supports SR mode (Super Response) with T4PM/T7PX/T10PX
- Programmable and compatible with S.Bus and S.Bus2 systems
- Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
- Upper/middle/bottom: Aluminum Case
Specs:
- Speed: 0.07sec/60° @ 7.4V / 0.08sec/60° @ 6V
- Torque: 30kg/cm @ 7.4V / 23kg/cm @ 6V
- Servo Size: Low profile Standard
- Dimensions: 40.5x21x26.2mm
- Weight: 53g
- Rated Voltage: 6-7.4V
- Operating Voltage: 4.8-8.4V
| Length: | 40,5 mm |
| Height: | 26,2 mm |
| Width: | 21 mm |
| Weight: | 53 g |
| Max Voltage: | 7,4 V |
| Speed at 6,0V: | 0,08 sec/60° |
| Speed at 7,2/7,4V: | 0,07 sec/60° |
| Torque at 6,0V: | 23 kg/cm |
| Torque at 7,2/7,4V: | 30 kg/cm |
| Features: | Aluminium Case , HV , S.Bus , S.Bus2 |
| Delivered With: | Horns , Mounting Hardware |
