Fine Pivot Drill Bit 1.2mm (Shank Dia. 1.5mm)
Fine pivot drill bits allow the drilling of more precise holes. Pivot drill bits have bits which are thinner than their shank, for greater resistance against shattering and decreased deviation. The new diameter are being released to complement existing 0.2-0.5mm (Items 74113-74116), 0.6-0.7mm (Items 74127-74128) and 0.8-1.0mm (Items 74132-74134) bits. Please note that they share their thicker shank (1.5mm diameter) with Items 74132-74134.
About the Items
• Durable material is shatter-resistant and is marked with bit size for easy recognition.
• High-quality bit finish gives excellent hole quality.
• Can be used on a range of materials including plastic, metal, brass and wood.
• Each size comes with a plastic storage case.
• Compatible with 74050 Pin Vise D and 74112 Pin Vise D-R.

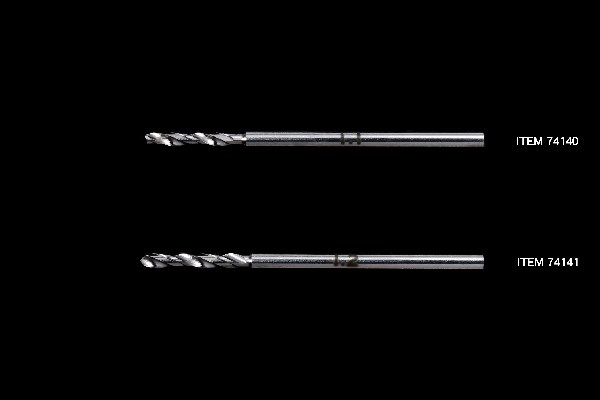

Item 74141
• Bit size: 1.2mm
• Shank diameter: 1.5mm
• Flute length: 8mm
• Recommended hole depth: 7.5mm
