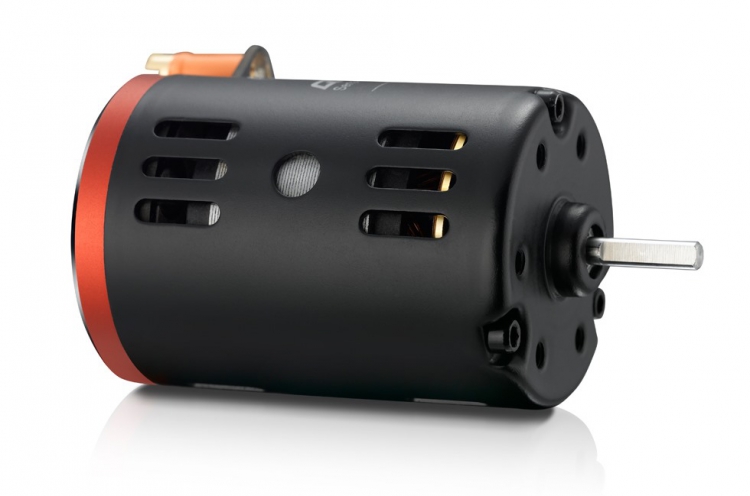

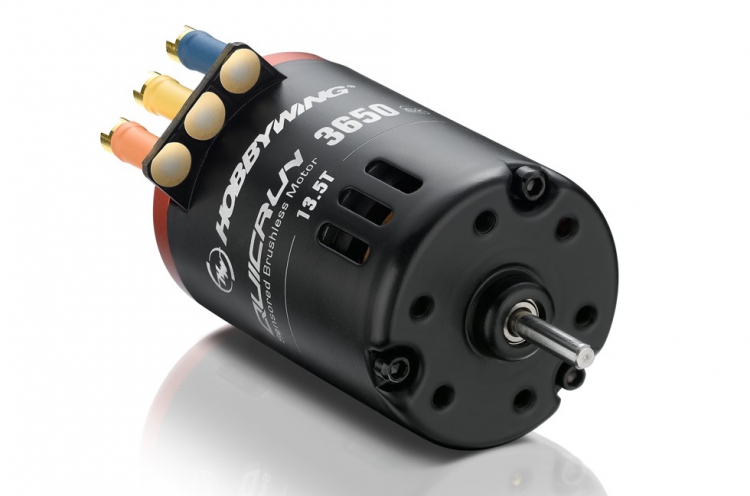

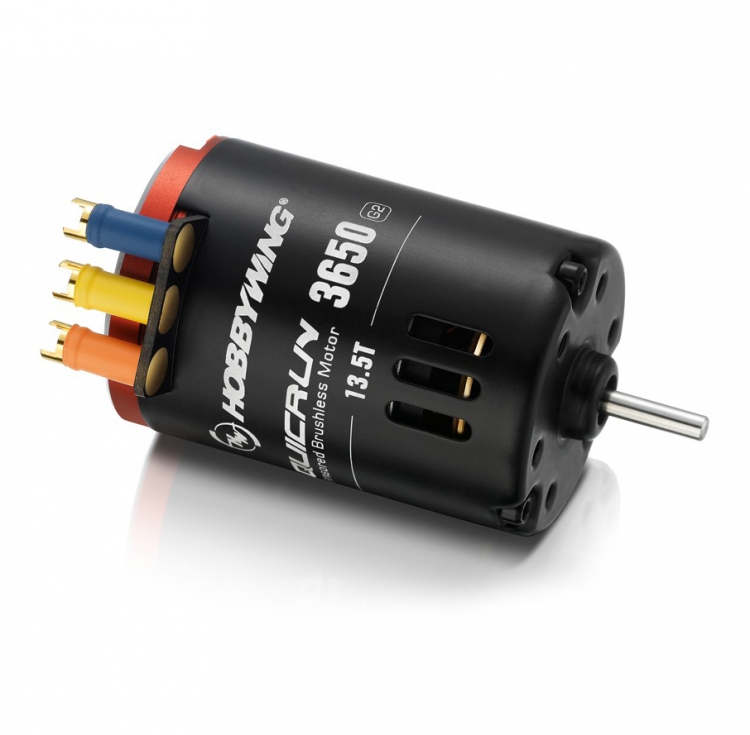

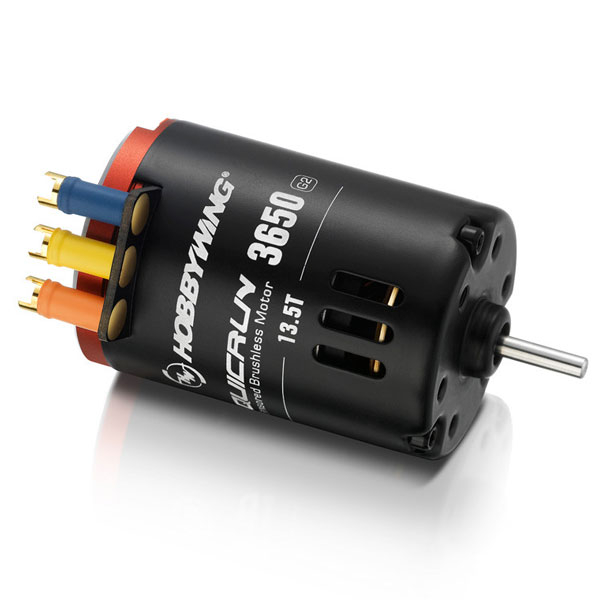

Motor QuicRun 3650SD 10.5T G2

Valmistaja: Hobbywing
Hiiliharjaton moottori
72,79 €
star star star star star
Tuotteen lähetysaika 6-12 arkipäivää
-
+
Lisää ostoskoriin Lisää ostoskoriin

wishlist Lisää toivelistalle


Tuotekoodi: 30404309
Numero: HW30404309
Varastopaikka: B062
Käyttövoima: Sähkökäyttöiset
Tuotetyyppi: Harjaton moottori anturilla
Tuotemerkki: Hobbywing

Tekniset tiedot Arvostelut

Tekniset tiedot

Linear & Smooth Control

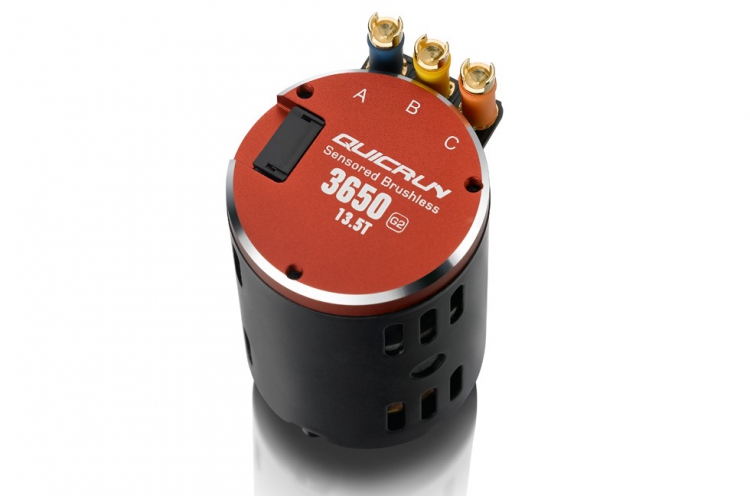

The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.

Great Heat-dissipation
The silicon O-ring fitted between the end bell and stator helps to conduct inner heat to the unique motor case to maximize cooling for extreme cooling conditions.

Plug-and-Play
Customized 3.5mm low impedance bullet connectors soldered to the motor wires guarantee "plug-and-play" and stable connections between the ESC and motor.

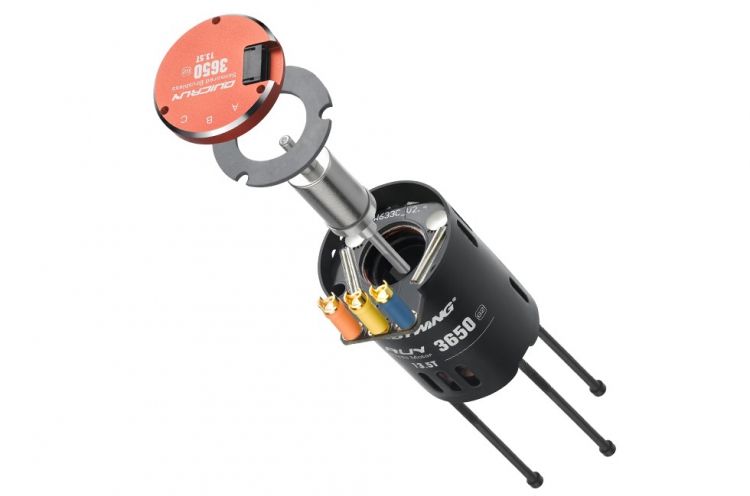

Re-buildable Design
The end bell is easy to be removed for maintenance purposes and for the replacement of common wearing parts such as rotor and sensor module (Ex bearings).

Compatible (with QuicRun-10BL60-Sensored ESC)
When pairing the QuicRun3650 G2 motor with the Hobbwing QuicRun-10BL60-Sensored ESC, the excellent match between ESC and motor will give you a very smooth and linear power band.


Specifications

  • Scale: 1/10th
  • Brushed/Brushless: BL
  • Sensored/Sensorless: SD
  • Pole Count: 2
  • KV Rating: 3600
  • LiPo Cells: 2-3S
  • No-load Current(A): 2.8
  • O.D.(mm): 36(1.147in)
  • Length (mm): 52.8(2.079in)
  • Shaft Diameter (mm): 3.17(0.125in)
  • Weight (g): 186(6.561oz)
  • Timing: Fixed


Applications
1/10th, 1/12th On-road (Race or drift Touring cars, F1, M vehicles and etc.) & Off-road (Buggies/2WD SCTs & Trucks) STOCK/SPORT Calss Competitions (About Motors' T counts, please refer to rules regulated by race organizors), Beginners for practice, and Rock Crawlers (applicable to 21.5T,25.5Tmotors)
