QuadPack 35 - Multi Rotor 35A ESC's (4)

Manufactor: Castle Creations

218,20 €

Shipping 4-6 business days

Add to cart

Add to wish list

Product code:	CC-010-0125-00
Number:	CC010-0125-00
Stock place:	0.0
Brand:	Castle Creations

Technical information Reviews

Technical information ∨

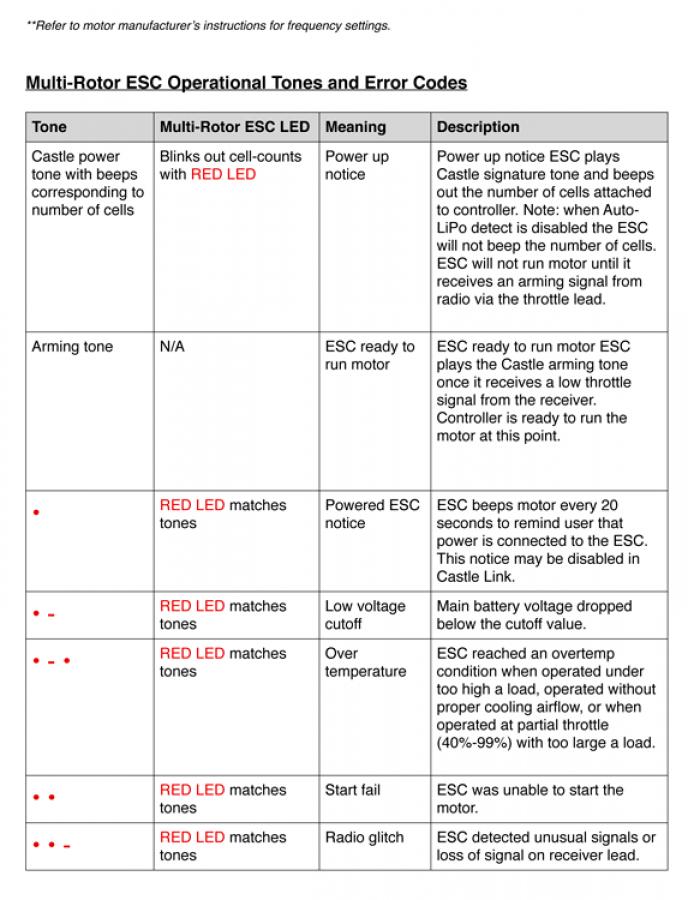

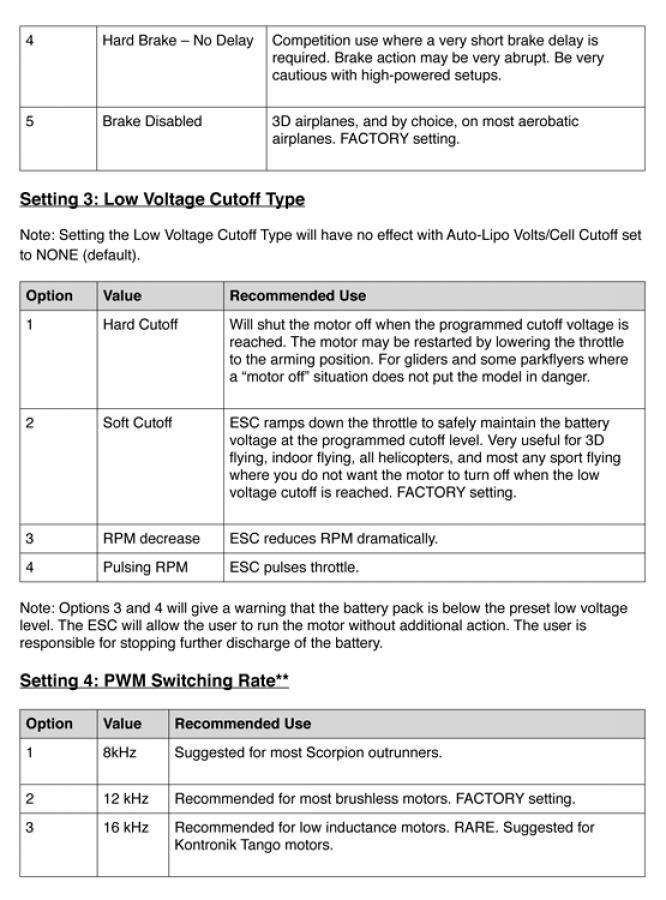

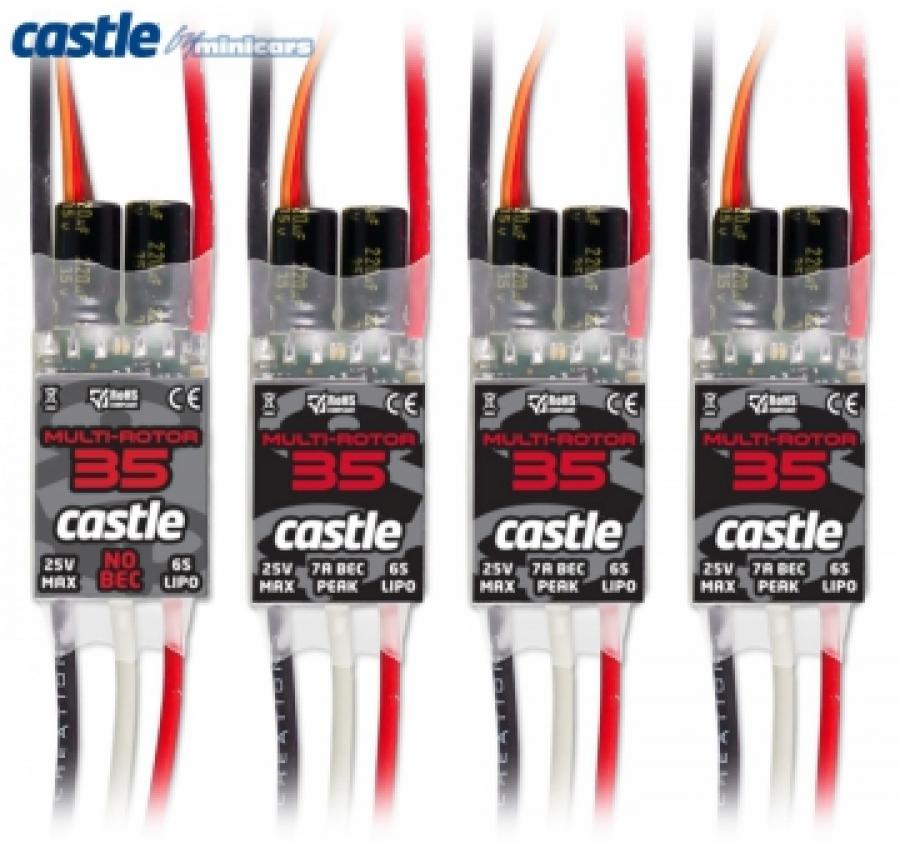

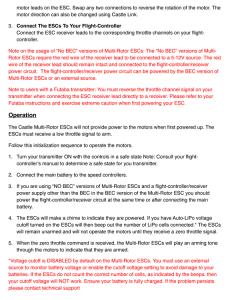

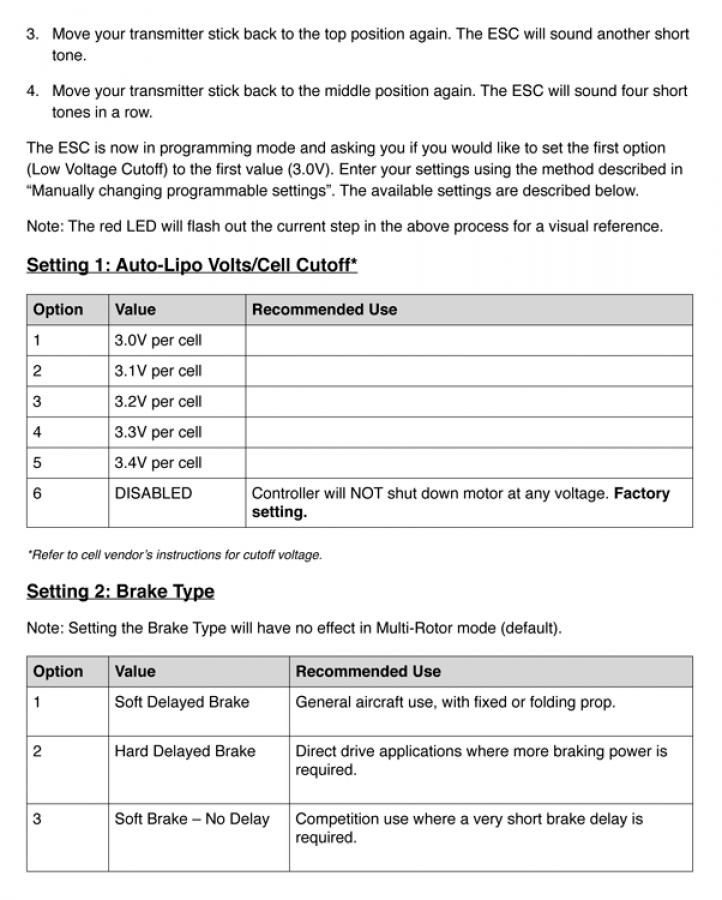

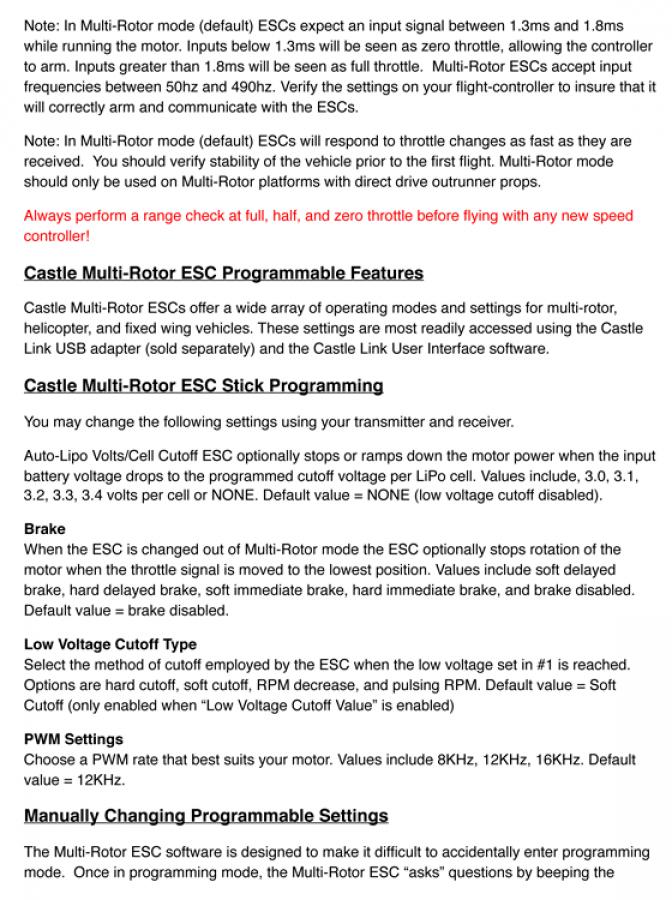

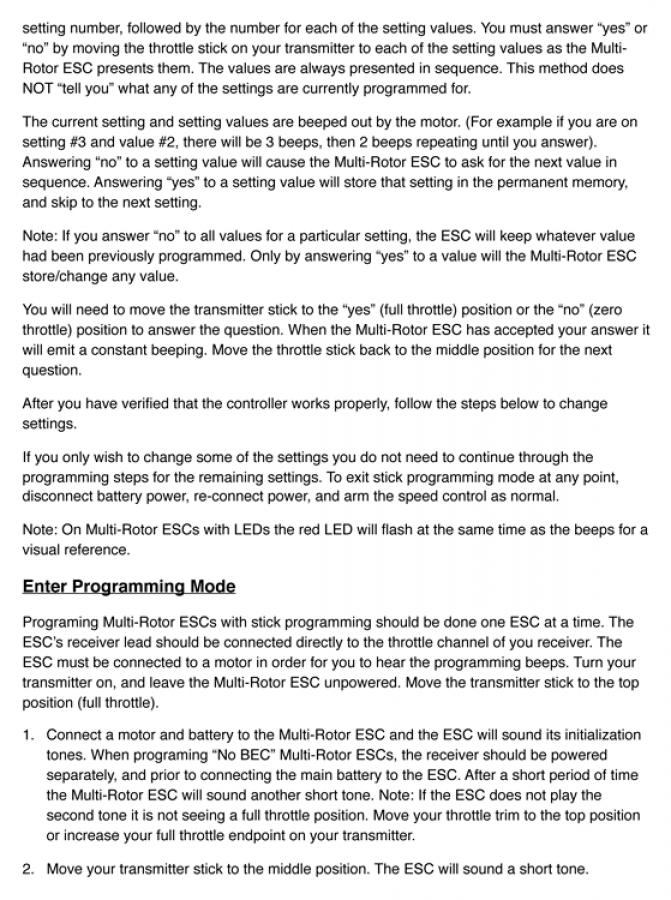

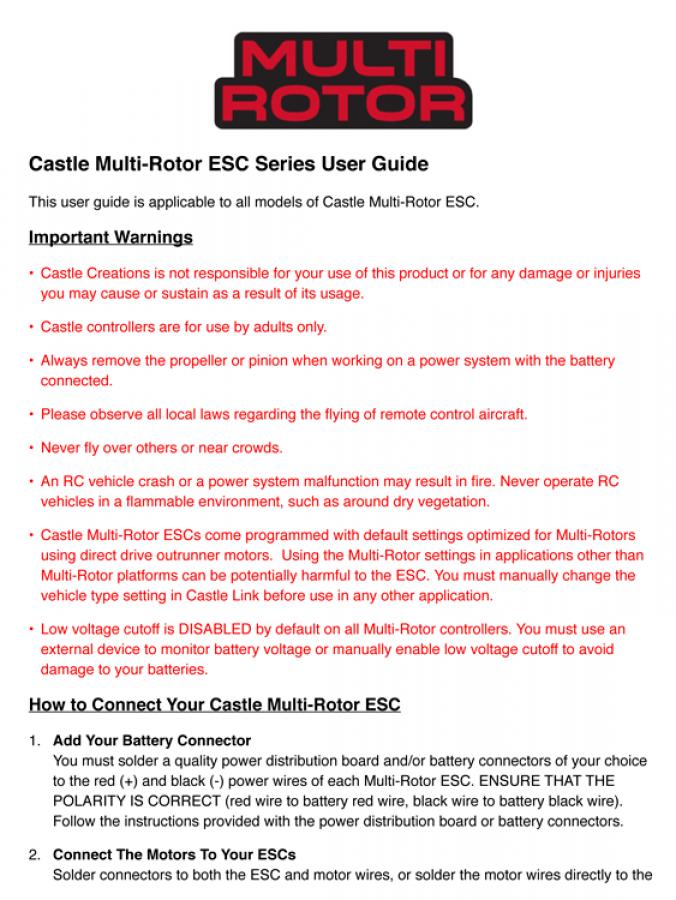

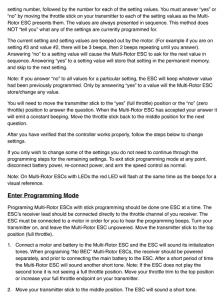

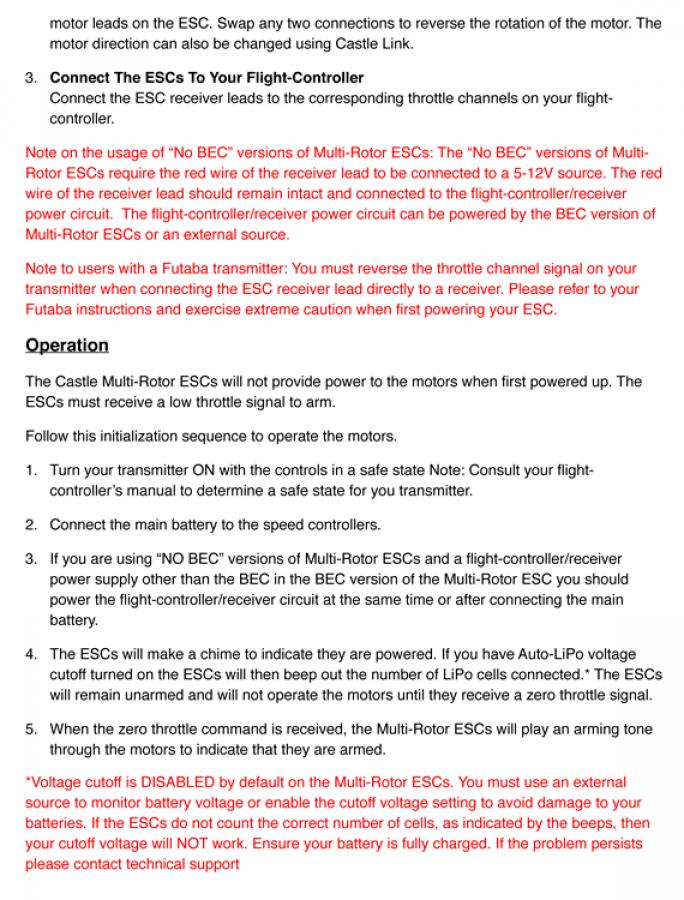

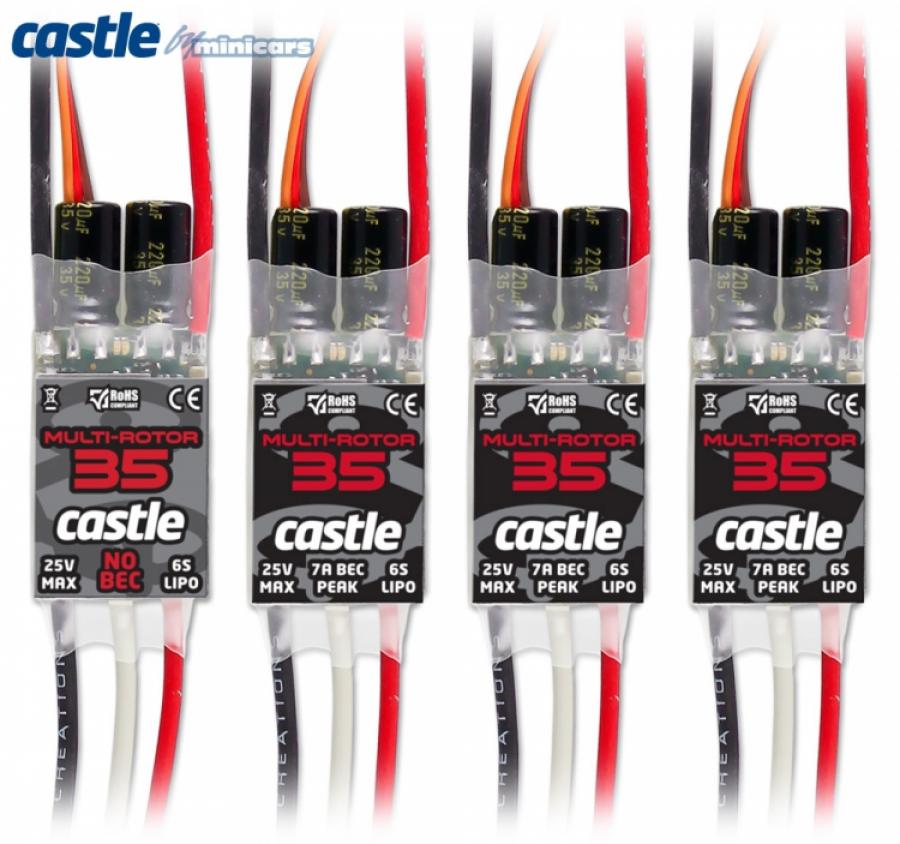

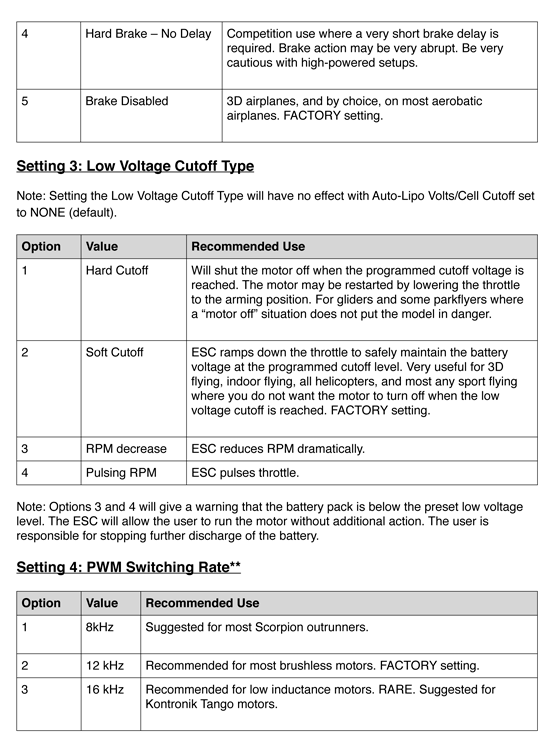

This pack of four 35 amp Multi-Rotor ESCs is equipped with three (3) ESCs without a BEC and one (1) with a BEC*. Each ESC has optimized firmware specifically designed for Quadcopter and other Multi-Rotor platforms. Refresh rates up to 490 Hz gives your platform optimum stability and maneuverability without missing a beat. QuadPack 35 comes preprogrammed for Multi-Rotor platforms and is recommended for platforms ranging from 450 to 650 sizes pulling up to 35 amps** and running up to 6S LiPo. As with all Castle ESCs, this product is easily programmable using the Castle Link USB adapter (sold separately).Instructions - click HERE.Specs:Input voltage: MIN: 2S LiPo - MAX: 6S LiPoMax continuous amperage at full throttle: 35 amps**BEC voltage (voltage regulator for powering radio and servos): 5.5 volts*BEC output: 7 amp peak*** - 5 amp continuous (always check servo draw prior to first flight)Dimensions:Width: 22.4 mmLength: 49 mmDepth: 8.4 mmWeight with wires (each): 27.8 gWeight without wires (each): 12 gItems needed for operation or installation:Battery connector and motor connectors sold separatelyProgrammability:Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.*This package contains one Multi-Rotor 35 with a BEC and three with no BEC. The single BEC supplies power for all 4 controllers.**RC HOBBY APPLICATION RATING: 35 amps for the duration of a single 4,000 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and may shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC’s operating temperature.***Peak indicates amperage sustainable for 0.5 seconds - long enough for most servos' current draw transients. Always confirm servo current draw before the first flight of the model.
