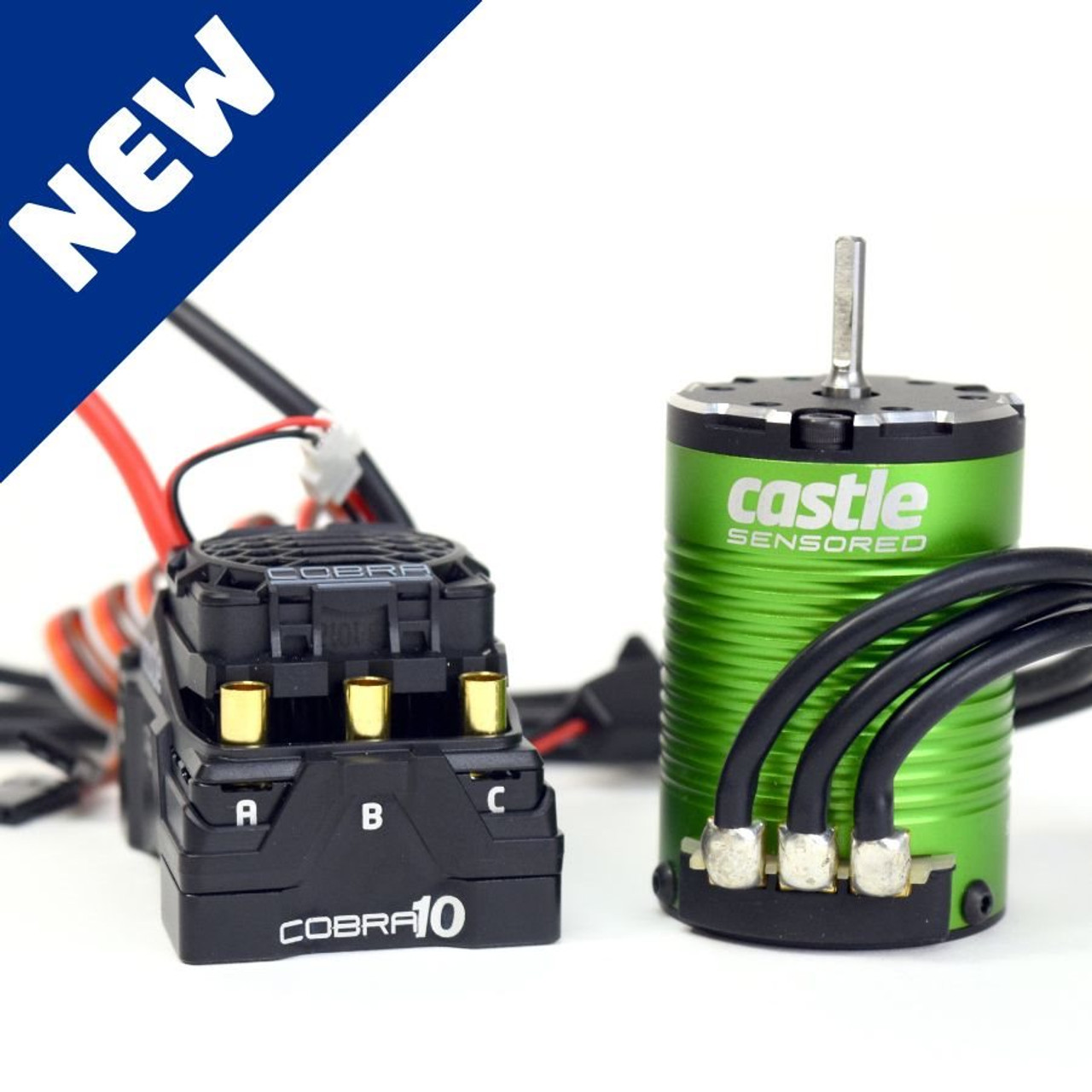

Combo Cobra 10 6S ESC & 1406-4600kV Sensored Motor

The Cobra 10 boasts a state-of-the-art 32-bit, dual-core processor,ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.

Crafted with a CNC aluminum bottom case, the Cobra 10 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.

One of its defining features is our acclaimed CRYO-DRIVE™technology, engineered to reduce operational temperatures,significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 10 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.

BASHER/RACING COMBO  APPLICATION
1406-4600kv Perfect combo for 1/10th scale vehicles weighing less than 5lbs.
Suggested applications are 1/10th scale touring cars, buggies and
 stadium trucks up to a 3s LiPo. It can also be used in a 1/10th scale
 2WD Short Course Truck on 2s LiPo  and geared conservatively.
Not for use in 4WD short course trucks.
NEW FEATURES:

32-Bit Processing power for smoother motor control and improved response time.
Enhanced Data Logging includes:
Double the maximum sample frequency of older generations.
8x increased logging time of older generations.
Data point for ESC electrical motor timing.
Data point for acceleration via onboard accelerometer.
Looping feature prevents interruptions in data log recording.
Ability to download specific sessions.
Hill Hold feature
Incredibly strong drag brake enhancement feature for rock crawling. Eliminates any creep or movement of the motor on an incline.
Additional tuning features include:
Improved braking adjustability
Separate brake and reverse curves
Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
Mounting holes located in bottom of aluminum case for installation into vehicle. (Mounting template available under resources)
MORE FEATURES:

Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo); 3s max with included 1406-4600kv motor
SmartSense™, Sensored Only and Brushed Motor Operation Modes
Powerful Integrated 8A Peak Adjustable BEC (5.0V - 8.0V)
CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to  protect the electronics and promote efficient heat transfer
Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
Oversized factory equipped thermally controlled 25mm cooling fan
Waterproof design for all weather conditions
Data logging capability to capture and record performance data from your vehicle
Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
Cobra 10 is proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty

COBRA 10 COMES WITH:

Cobra 10 ESC
1406-4600kv sensored brushless motor
Castle Link V4 USB Adapter
250mm Direct Connect Sensor Wire
Castle Decals
ESC Quick Start Guide

Cobra 10 Technical Specs
Controller
Input Voltage Range: MIN: 2s LiPo
MAX: 6s LiPo (25.2V) (3s max with included 1406-4600kv motor)
BEC Specifications: 5.0V - 8.0V adjustable in 0.1V increments; (8A Peak); default 5.5V
Operating Environment: Waterproof* design allows for use in nearly any environment.
 Running Modes:  SmartSense Brushless, Sensored Only, Brushed
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes, waterproof
Cooling Fan: Yes, factory equipped (25mm),temperature controlled
Size: 55.9mm x 38.3mm x mm (2.2" x 1.51" x 1.44")
Weight (with no battery connector): 4.02oz (114g)
Battery Wire: 12AWG
Connectors: 4.0mm female bullets for motor connection, matching 4.0mm male bullets required
Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 70+ amps, such as Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs
soldered to the battery leads.
Product Use Statements:
Not intended for drag racing applications.

*Although Cobra 10 is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.

**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.

Max. Recommended Vehicle Weight
Less than 5lbs/2.3kg, with batteries, ready-to-run with included 1406-4600Kv sensored motor.
Programmability:
Fully programmable Castle feature set using the included FREE Castle Link V4 USB adapter and freely downloadable NEW Castle Link Windows™ software. (Windows 10+ required)
Castle Link Mobile App (B-Link):
In development
Tech Tips:
Cobra 10 setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1:10th and 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
Applying voltages higher than 25.2V will cause irreparable damage to ESC.
1406-4600kv Technical Specs
Input Voltage Range: 2-3S LiPo
Kv: 4600
Max. RPM: 100,000
Size: Length: 49.5mm
Diameter: 36mm
Weight (w/wires): 193g / 6.8oz
Shaft Size: Length: 15mm
Diameter: 1/8" (3.17mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional, coming soon!
Connectors: 4mm male Castle Bullet Connectors
Application Guidelines: For 2WD short course trucks on 2s LiPo and geared conservatively.
1/10th 2WD Stadium trucks and buggies on 2s for bashing and limited runs on 3s with conservative gearing.
Great for 1/10th scale on-road cars for 2s and 3s use.
NOT for use in 4WD short course trucks.
Please refer to our Product Finder for recommended motor, battery and gearing for some of the more popular vehicles on the market.
Max. Recommended Vehicle Weight: 5lbs
Tech Notes:
Running modes: SMARTSENSE™, Sensored only

Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
