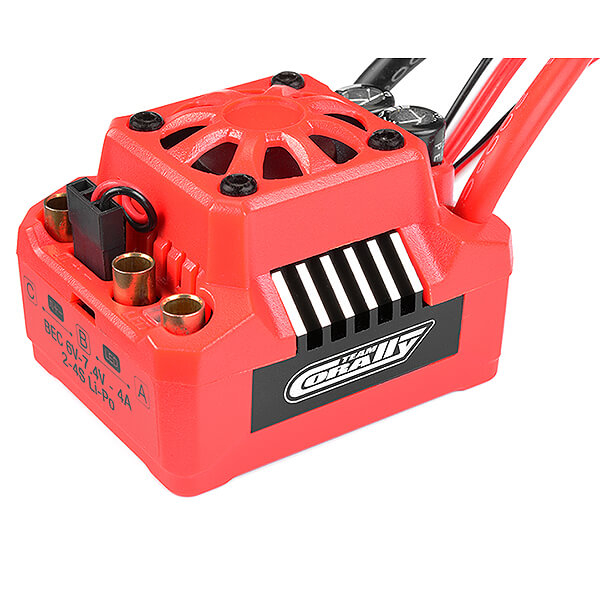

| Numero: | C-54012 |
|---|---|
| Tuotemerkki: | Team Corally |
Max. Cont. Current (A): 135A
Weight (g): 105 g
Motor Limit: Brushless Motor Limit with 2S LiPo / 6 Cell NiMH: KV=6000 (3656 size motor) Brushless Motor Limit with 3S LiPo / 9 Cell NiMH: KV=4000 (3656 size motor) Brushless Motor Limit with 4S LiPo / 12 Cell NiMH: KV=3000 (3656 size motor)
Input Voltage (V) min. - max.: 7.4 - 14.8V
Max. Current (A): 830A
Length (mm): 49.0mm
Nr of Li-xx Cells: 2-4S LiPo
Width (mm): 39.5mm
Nr of Ni-xx Cells: 6-12 Cells
Height (mm): 34.7mm
BEC Voltage (V): 6-7.4V programmable
BEC Current (A): 4A
Lipo Cut off: Programmable
Thermal Protection Temperature: 105°C / 125°C programmable
Water Protection: Yes
Cooling Fan: 25x25x10mm
Connector (Motor): 4.0mm female
Connector (Battery): XT90-connector
Battery wire size: 12 AWG
Car Type Use: 1/10 - 1/8 scale
