FA-120R3 20cc 4-stroke 3-cyl Radical Nitro Engine

Valmistaja: Saito

Saito lennokin polttomoottori

737,30 €

Tuotteen lähetysaika 4-6 arkipäivää

Lisää ostoskoriin

Lisää toivelistalle

Tuotekoodi:	SAFA-120R3
Numero:	SAFA-120R3
Varastopaikka:	0.0
Tuotemerkki:	Saito

Tekniset tiedot Arvostelut

Tekniset tiedot ∨

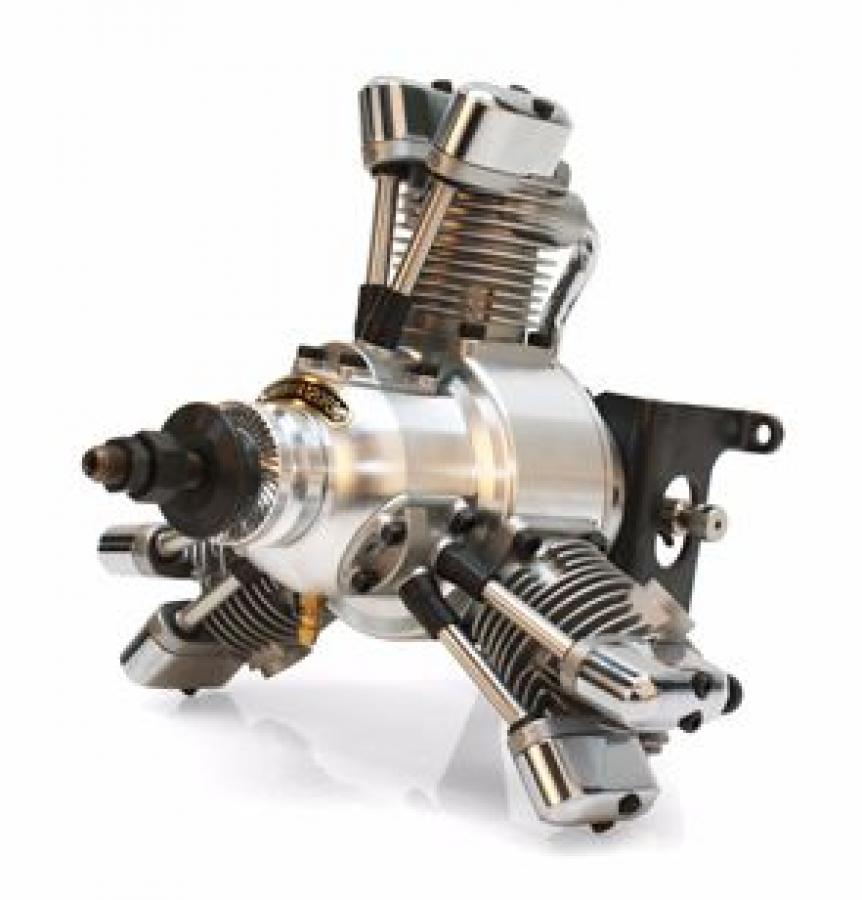

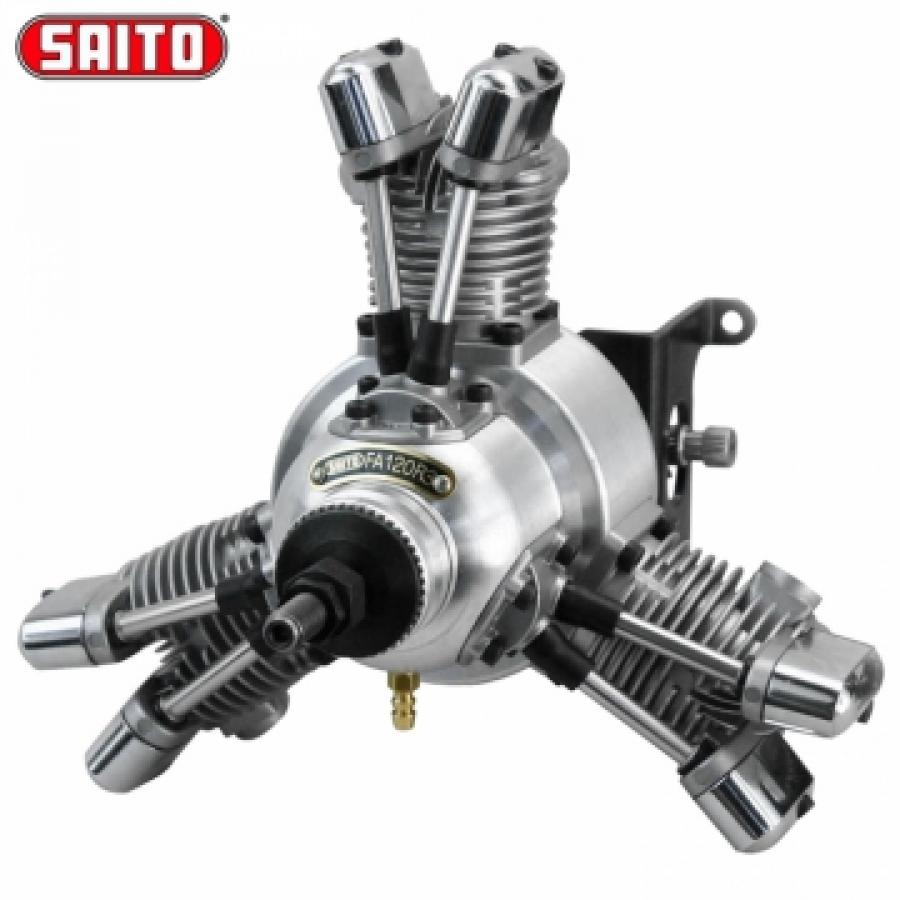

Saito FA-120R3 Radial Nitro/Glow Engine

The Saito™ brand continues to expand their radial engine line with the addition of the FA-120 3-cylinder radial. Ideal for 60- to 90-size models, the FA-120R3 is an upgrade from the FA-090R3 engine, featuring 33% larger displacement and more power—all at a lighter weight for a higher power-to-weight ratio. The FA-120R3 also comes with a 3-piece flex exhaust system, making for an all-inclusive package.

And, like all Saito engines, this powerhouse is engineered with that same Saito quality and reliability you have come to know and trust.

Key Features:

Optimum for small-size scaled airplane
Low vibration (assured by constant-interval explosion)
Real sound of the exhaust
The engine is designed to equalize fuel mixture and minimize misfire due to insufficient distributing at idling by means of special port type intake manifold originally developed by SAITO
Cylinder head: Improved semi-spherical combustion chamber assures better combustion efficiency and volumetric efficiency
Cylinder: The aluminum cylinder is directly hard-chrome plated on its inner surface without installing liners to reduce weight and increase durability. The monolithic structure of cylinder head and cylinder prevents distortion and improves cooling efficiency.
Piston: The piston is made of high silicon content aluminum and attached with a compression ring to heighten engine performance
Crankshaft: Has a forged solid construction made of chrome molybdenum steel, and supported by two ball bearings
Camshaft: Features high cam providing longer maximum lift time
Carburetor: High-performance of slow throttling type
Propeller nut: designed to have double nuts preventing loosening and fall-off for the safety.
More power for 60- to 90-size planes
Proven performance and reliability

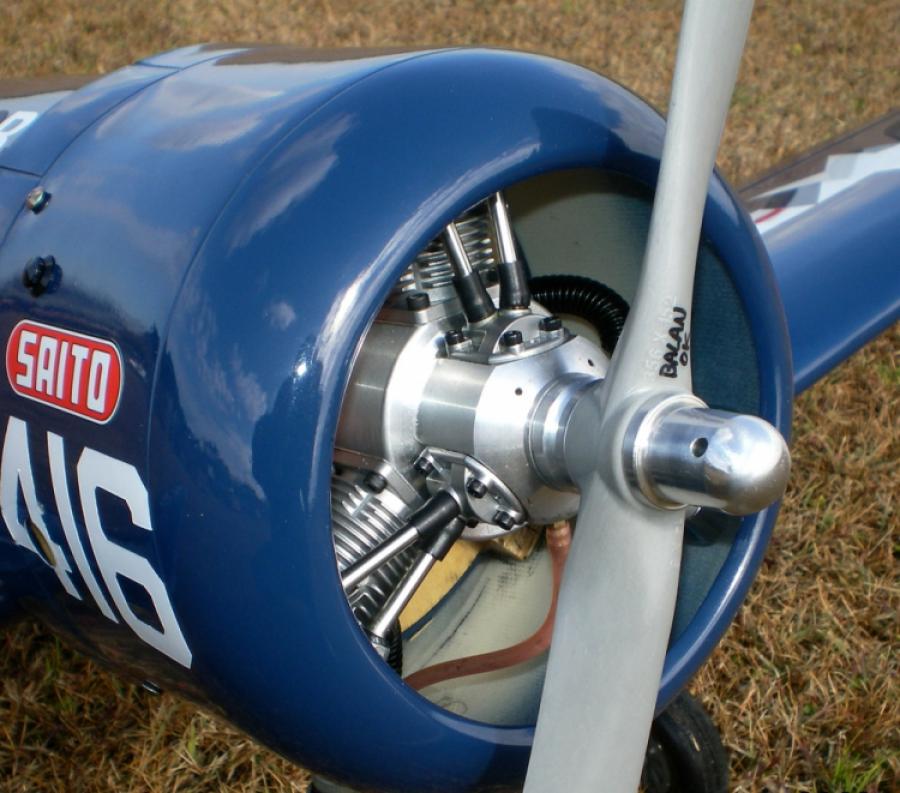

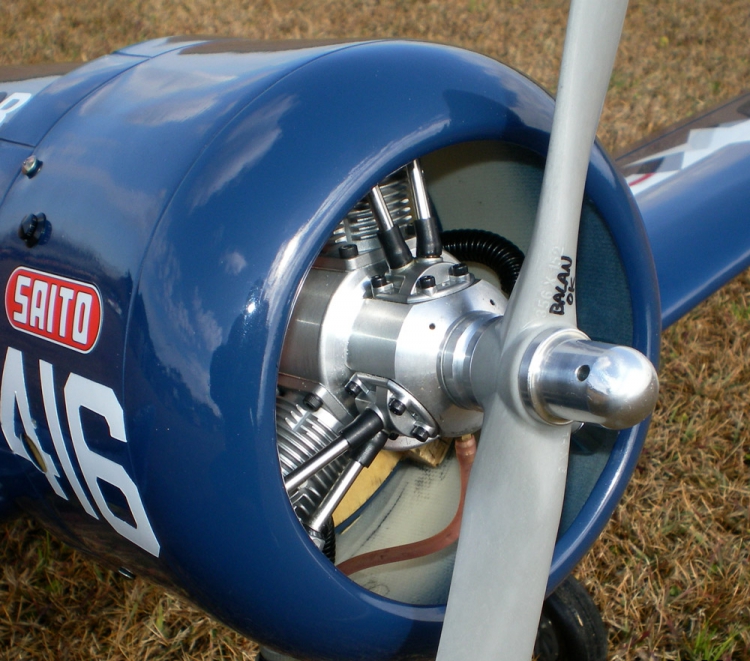

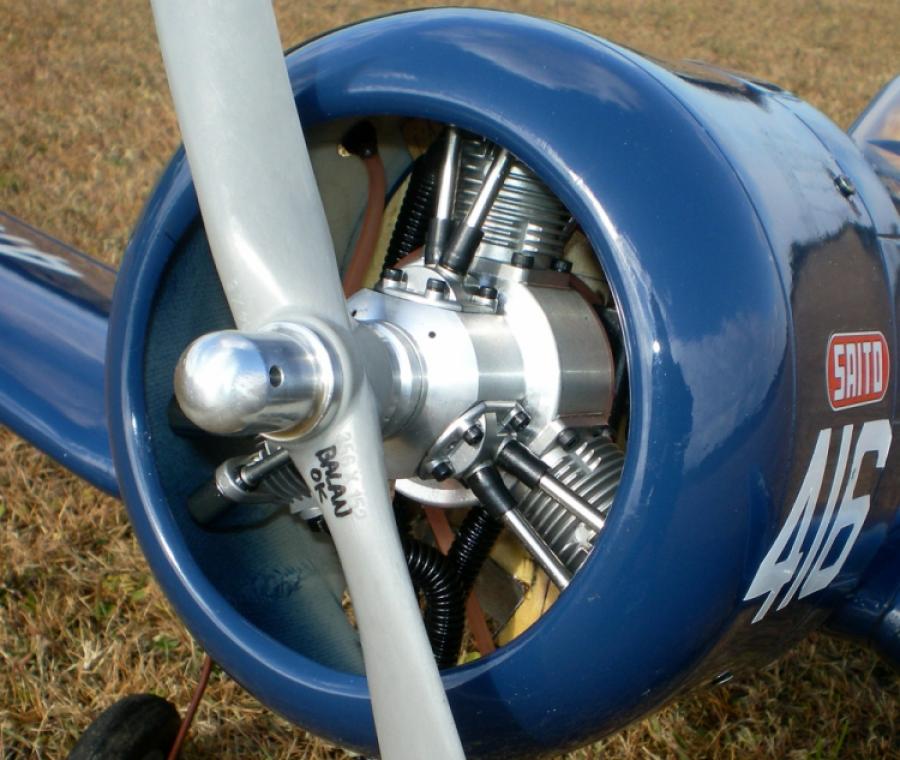

Fits great into round cowl planes

Specs:

Displacement: 19.18 cc
Bore: 22.4 mm
Stroke: 16.2 mm
Crankshaft Threads: M7x1 mm
Cylinder Type: AAC
Cylinders: Radial
Muffler Type: Three flex tube exhaust hoses (included)
Prop Range: 13x8-14x6
Rec Prop: APC 14x5 @ 9.400 rpm
RPM Range: 1.800 - 10.000
Max ground rpm: 8.800-9.500
Recommended Fuel: Glow fuel with 5-20% nitro and synthetic oil
Total Weight: 890 g w/ mufflers
