Flyfun 80A Esc 3-8S V5

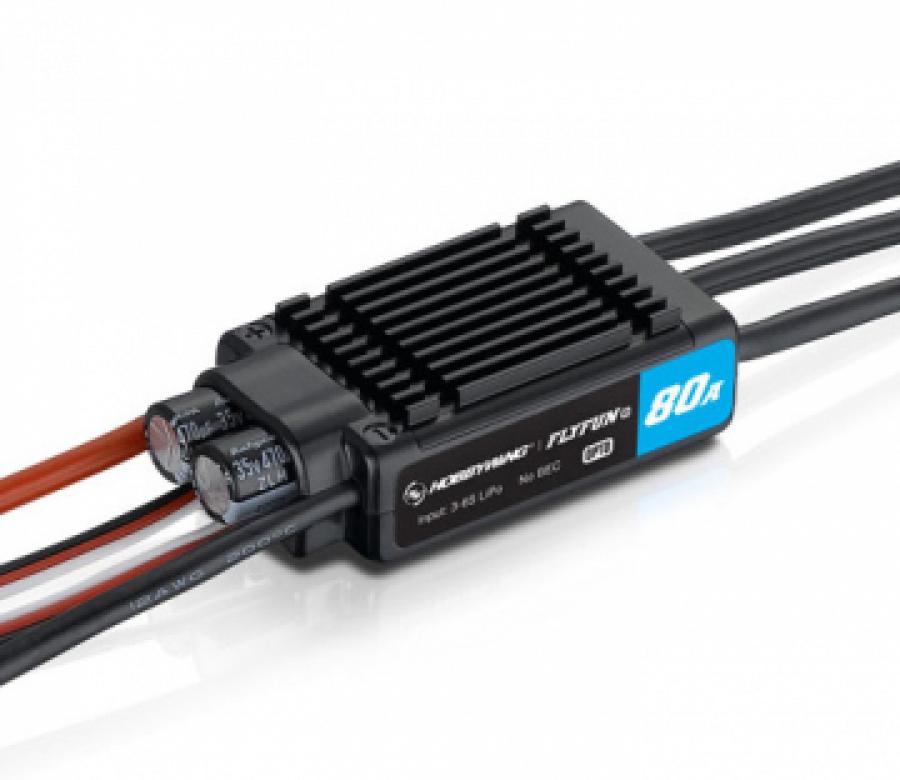

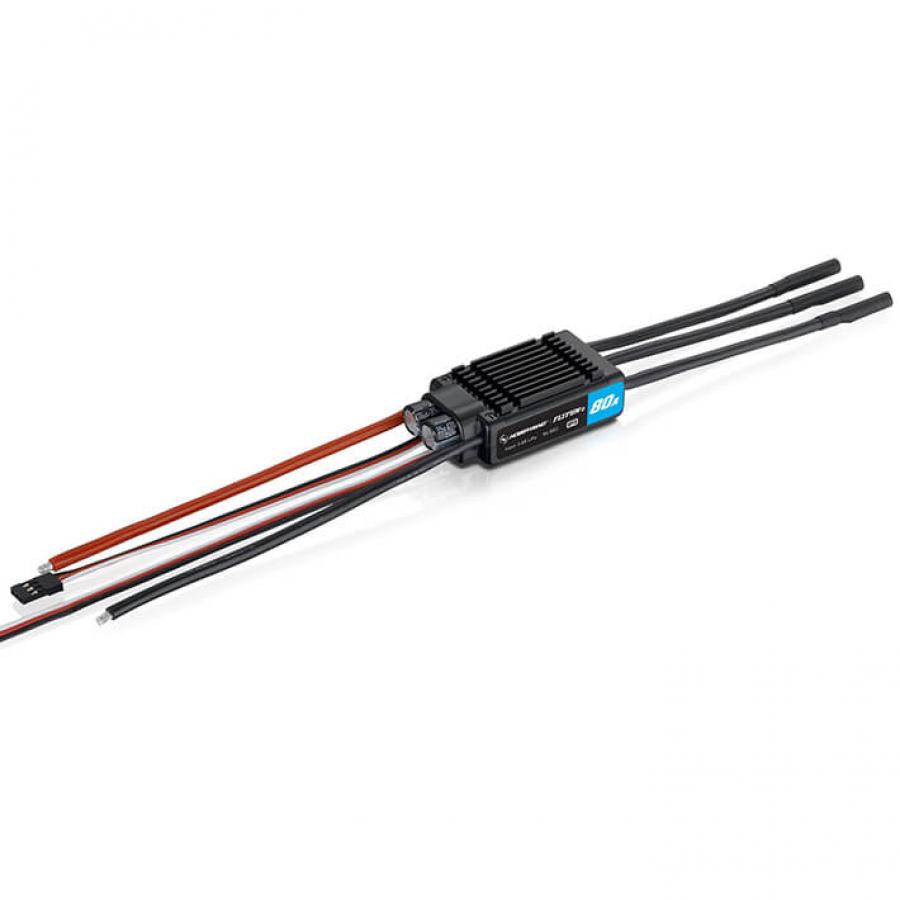

Hobbywing FlyFun 80A V5 3-8S ESC

DEO Technology / Active Freewheeling
The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:

• Rapider and smoother throttle response, better stability and flexibility during flight.
• Higher driving efficiency, longer flight time.
• Lower ESC temperature, more reliable operation.

Features:

• ESC which features a high performance 32-bit ARM M4 microprocessor (with a running frequency of up to 72MHz) is compatible with various brushless motors.
• Microprocessor powered by a separate DC regulator has better anti-interference performance greatly reduces the possibility of losing control.
• DEO (Driving Efficiency Optimization) Technology greatly improves throttle response & driving efficiency and reduces ESC temperature.
• Built-in high-power BEC with output voltage adjustable among 5.2V, 6.0V and 7.4V. The BEC module is separate from other circuits on the ESC, so the normal BEC output can be guaranteed (when issue like burnt
• power board happens) to allow users to get the aircraft back before crash. (Note: FLYFUN 110A/130A/160A-HV-OPTO-V5 don’t have this function . FLYFUN 20A/30A Mini can not be adjusted)
• Normal/Soft/Very Soft start-up modes are compatible with regular propeller airplanes and EDF jet airplanes (pls ensure to select the “Very Soft Start-up” mode when using EDF jet airplanes).
• Separate programming cable for connecting ESC to a LED program box and allows users to program the ESC anytime, anywhere. (For detailed info, please refer to the user manual of HOBBYWING LED program box.)
• Normal/proportional/reverse brake modes (esp. reverse brake mode) can effectively shorten the landing distance for the aircraft. (Note: FLYFUN 20A/30A Mini /130A/160A-HV-OPTO-V5 doesn’t have this function.)
• Multiple protection features like start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage and throttle signal loss effectively prolong the service life of the ESC.

Soft Start-ups & Reverse Brake
New soft start-up modes are applicable to regular propeller aircraft and EDF aircraft with different sizes. With Reverse Brake mode enabled when landing can effectively shorten the sliding distance of the aircraft to simulate the landing of a real aircraft (within a super short distance, the FLYFUN 130A/160A-HV-OPTO-V5 doesn’t have this function). Normal Brake Mode, Proportional Brake mode, and Brake Disabled mode are also available; the brake amount is adjustable in normal brake mode while in proportional brake mode, the brake force will be automatically allotted on the basis of the position of radio throttle stick.
(Warning! This is Hobbywing's registered patened)

High-power BEC
High-power switch-mode BEC with continuous/peak current of 8A/20A and voltage adjustable among 5.2V, 6.0V and 7.4V allows users to have more electronic devices or devices with higher power like servo, flight controller, and on-board light on their aircraft.

Multiple Protections
Multiple protection features include start-up, over-current, ESC thermal, capacitor thermal, overload, throttle signal loss (or Fail Safe), and abnormal input voltage effectively prolongs the service life of the ESC.

New Design & Great performance
New design brings exquisite look and good heat-dissipating performance. Imported components, the high-performance 32-bit microprocessor, and the PCB (printed circuit board) with extremely low impedance adopted by the ESC guarantee great current endurance, excellent performance and high reliability. The ESC is available in high-voltage/regular version with different Amps.

Multiple Programmable Parameters
Multiple programmable parameters for setups of different fixed-wing aircraft are adjustable via transmitter or Hobbywing LED program box.

Specifications:

• Brushed/Brushless: Brushless
• High Voltage/Regular: Regular
• Cont./Peak Current: 80A/100A
• Input: 3-8S LiPo
• BEC Output: Switch Mode: 5.2V/6V/7.4V, 8A/20A
• Input Wires: 12AWG-150mm
• Output Wires: 12AWG-150mm
• Input Connectors: No
• Output Connecotors: 4.0 Gold Connectors (Female)
• Size: 69.8 x 34.6 x 19.2 mm
• Weight: 92 g

ESC Programmig via:

• Transmitter: Supported
• LED Program: Card Not Supported
• LED Program Box: Supported
• LCD Program Box: Not Supported
• WiFi Module: Not Supported
• Program Port: Separate Program Wire
• Firmware Upgrade: Not Supported
