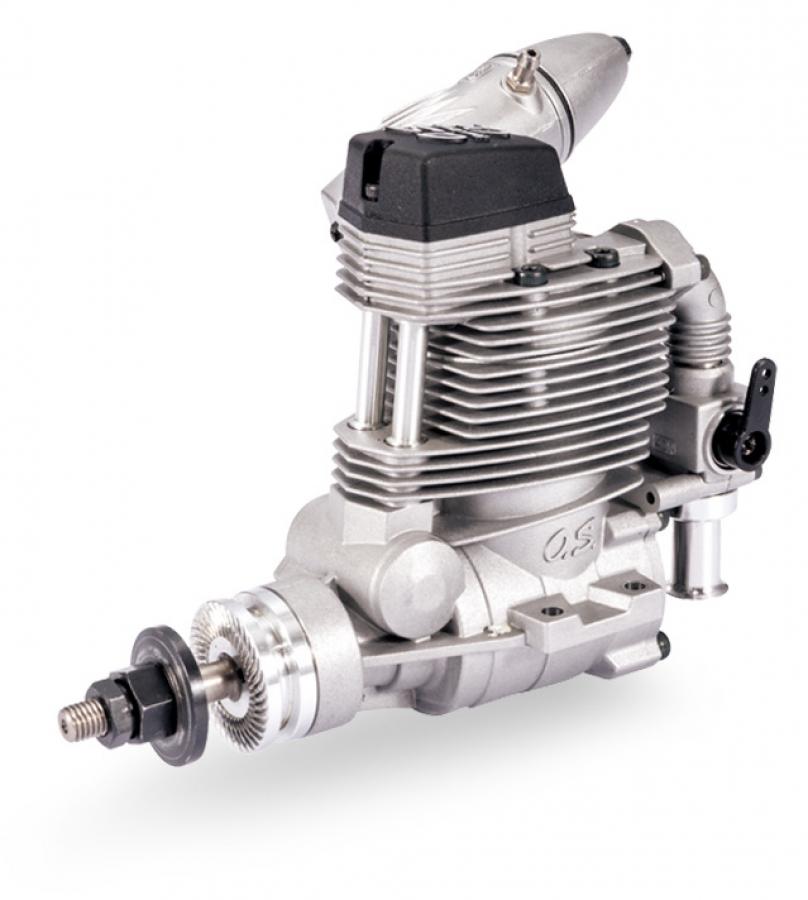

FS Alpha-56 II 9.32cc 4-Stroke Engine w/ Silencer

Valmistaja: OS Engines

OS Lennokin polttomoottori

395,00 €

Tuotteen lähetysaika 4-6 arkipäivää

Lisää ostoskoriin

Lisää toivelistalle

Tuotekoodi:	34330
Numero:	OS34330
Varastopaikka:	0.0
Tuotemerkki:	OS Engines

Tekniset tiedot Optio- ja lisäosat Arvostelut

Tekniset tiedot ∨

O.S.Engine FS Alpha-56II 4-Stroke 9.32cc Airplane Engine

In 2007, O.S., a pioneer and leading company in the mass production of 4-stroke model engines is proud to announce the first in a new line of “state of the art” 4-stroke model engines. Based on the original world leading FS series engines introduced to the modeling world over 30 years ago, the new FSα series incorporate many new features specifically incorporated in the FSα engines.

A significant feature is the elimination of the crankcase oil breather nipple with the oil that would normally be expelled on the aircraft now being recirculated through the engine.

In addition, the connecting rod, wristpin and valve assembly have all been beefed up for increased strength and the carburetor modified for increased and more suitable performance.

If you are looking for an engine with the latest in engine technology, quality and power, you should consider the new FSα series engines.

Muffler:
The off-set distance is now adjustable as is the direction of the outlet for easier cowl installations.

Camshaft Housing:
Decreased in width for less interference with the sides of the aircraft’s nose section.

Mounting:
The new FSα-56 retains the same mounting dimensions and spacing as the FS-52S allowing the engine to be interchanged.

Piston:
As with other O.S. brand engines, the piston has been fabricated from a high silicon content aluminum.

Crankcase Venting:
No longer used. Excess crankcase oil is now drawn by negative pressure through notches cut in the sides of the cam follower housing through the pushrod tubes into the rocker cover and injected back into the engine combustion chamber via a pin hole drilled along the side of the intake valve guide.

Carburetor:
The new model carburetor features an extended intake tube to restrain the reverse flow of the air/fuel mixture.

Rocker Arm Cover:
An aluminum casting anodized Sapphire blue in color with O.S. Four Stroke and Alpha symbol in raised letters on the top.

Connecting Rod:
Beefed up and stronger than those used in the former FS Series engines.

Valve Train Parts:
Upgraded and that heat treated harder for increased wear resistance.

Crankshaft:
Redesigned with more precise quality.

Bearings:
As with all O.S. engines, only the highest quality bearings are used.

Specs:

Displacement: 9.32cc
Bore: 24.0mm
Stroke: 20.6mm
Power output: 0.99hp @ 10.000RPM
Weight: 461g (including silencer)
Suggested propellers: 10x8-9, 11x7-9, 12x6-8 & 13x6-7
