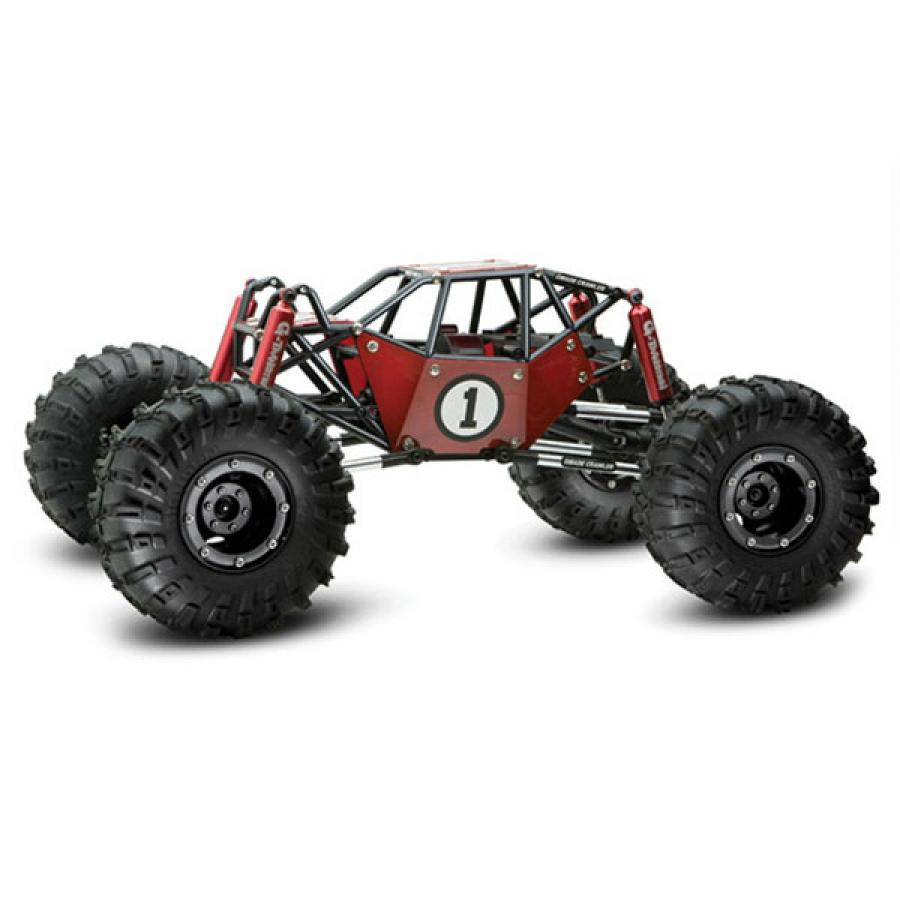

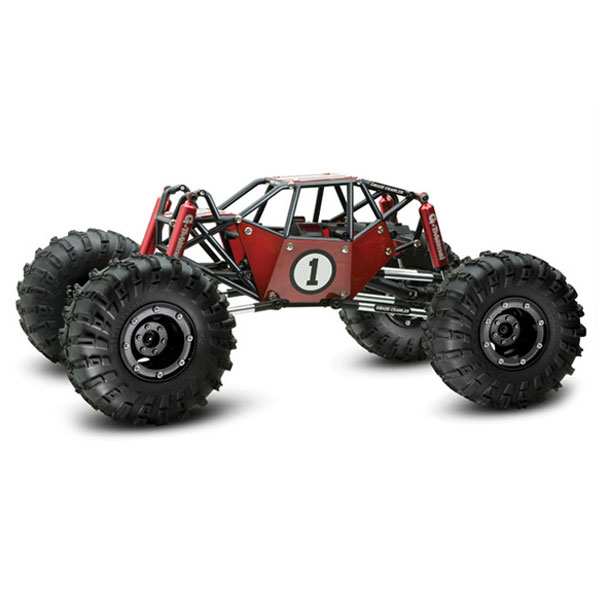

Gmade 1/10 R1 Rock Buggy 4WD Crawler Kit (Clear Panels)

Valmistaja: GMade
401,35 €
star star star star star
Tuotteen lähetysaika 6-12 arkipäivää
-
+
Lisää ostoskoriin Lisää ostoskoriin

wishlist Lisää toivelistalle


Numero: GM51000
RC-auton tyyppi: Crawler (hitaat maastoautot)
Käyttövoima: Sähkökäyttöiset
Vetotapa: Nelivetoinen
RC-auton skaala: 1/10 - pituus n. 40cm
Vaikeusaste: Helppo-keskivaikea RC
Valmiusaste (RTR, Kit): Rakennettava sarja
Tuotemerkki: GMade

Tekniset tiedot Arvostelut

Tekniset tiedot

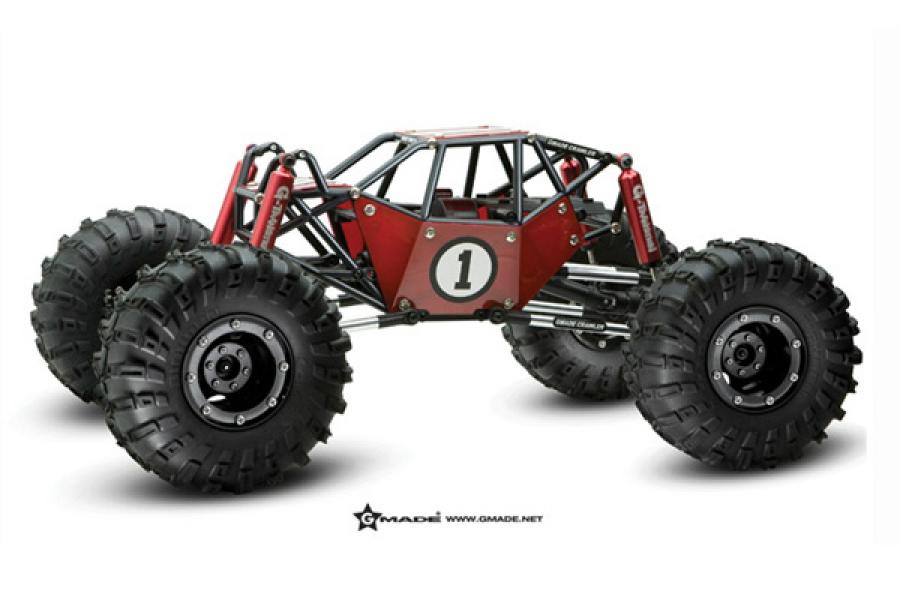

The R1 Rock Buggy is a shaft driven crawler that replicates the look of a high performance rock buggy, and delivers performance that makes it a capable scale recreation of the real thing. The moulded composite tube frame features an incredibly realistic appearance, and clear lexan body panels allow you to add a personalized touch to your rig. But this design does more than look the part, it provides protection to your electronics, and keeps everything safe when you tumble down the rocks.

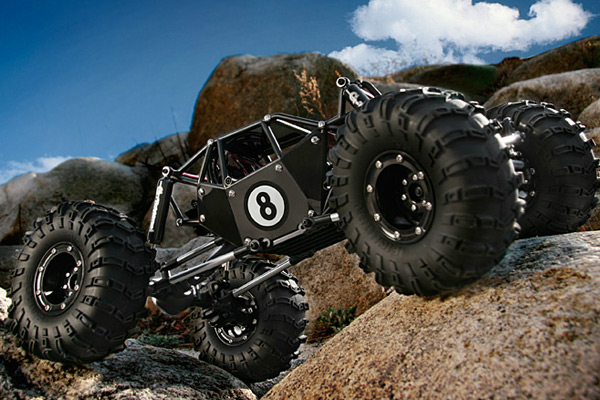

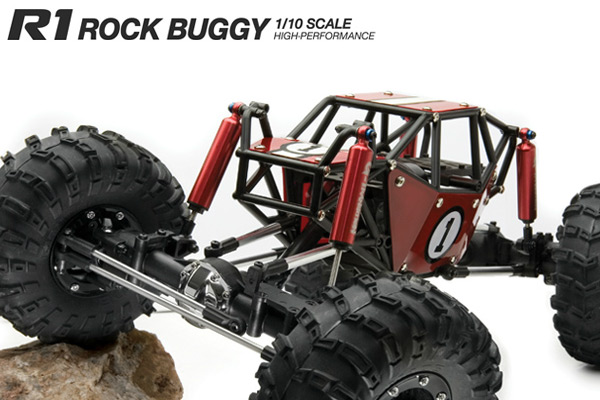

Gmade R1 Rock Crawler

Other notable features include tough universal slider shafts that deliver the power from the transmission to the unique 'Portal' high clearance front and rear axles. Plus, with a fully sealed transmission, the awesome G-transition shocks, and standard 2.2 size wheels, the Gmade R1 is destined to become a standard in the world of rock racing crawlers.

This version of the Gmade R1 is sold in kit format (requires building) and with a clear bodyshell for those who want to design their own rig.

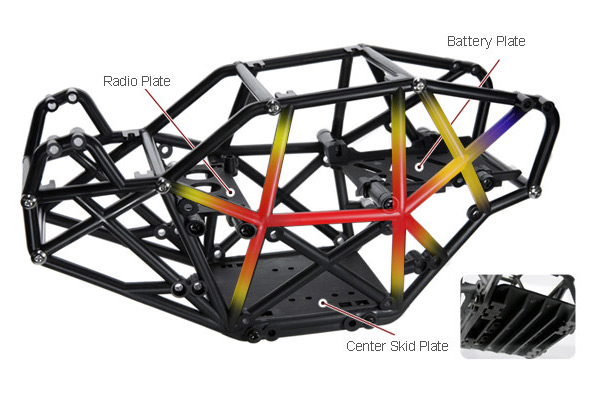

Gmade R1 Chassis details

R1 TUBE CHASSIS

The one-piece graphite axle housing is made of high strength plastic for maximum durability and easy maintenance. Inside, both front and rear axles have solid differential gears to provide a stronger driving force in any driving conditions. The gears are protected by a glossy metal cover for added scale realism.

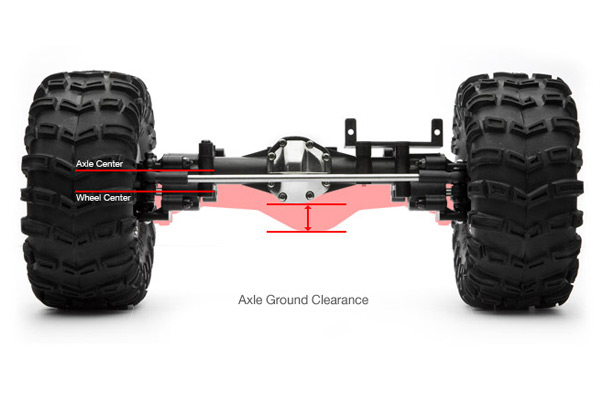

Gmade R1 Portal Axel Detail

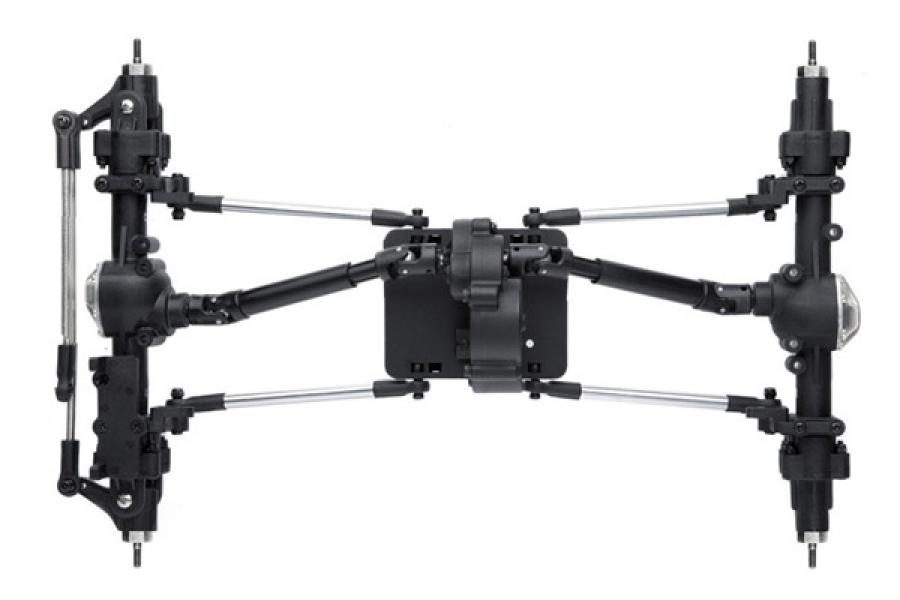

R1 DRIVE TRAIN

Portal axles simply mean the drive axles are above the center of the wheels. This gives theR1 greater ground clearance beneath the axles than other trucks using the same tyres.

The R1 portal gear offers high ground clearance and can reduce speed

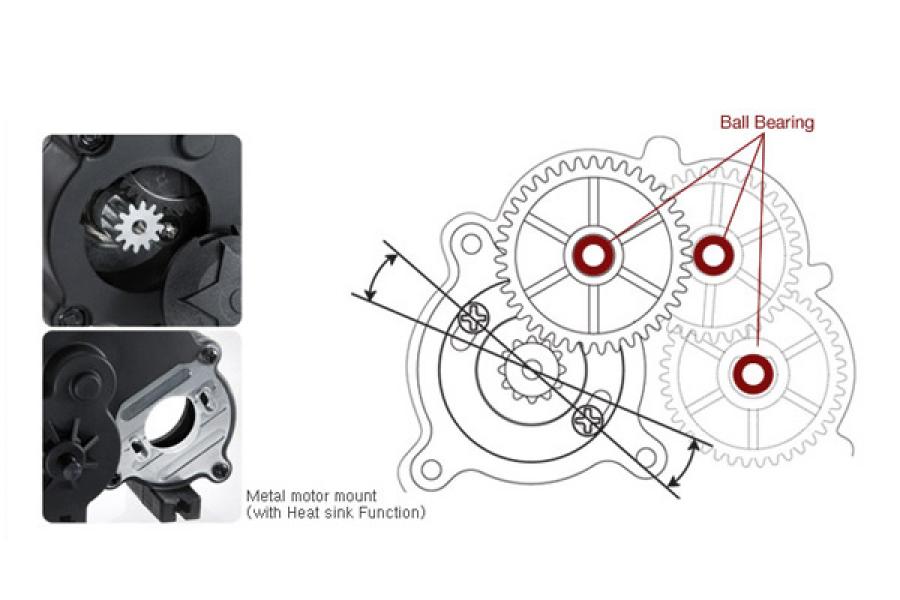

Gmade R1 Transmission Details

R1 TRANSMISSION

The perfectly sealed R1 transmission is dust proof. Full ball bearings are placed at all axis of the gears. You can also adjust the gear mesh backlash exactly the way you want because the motor mount cap can be opened and closed for you to see in.

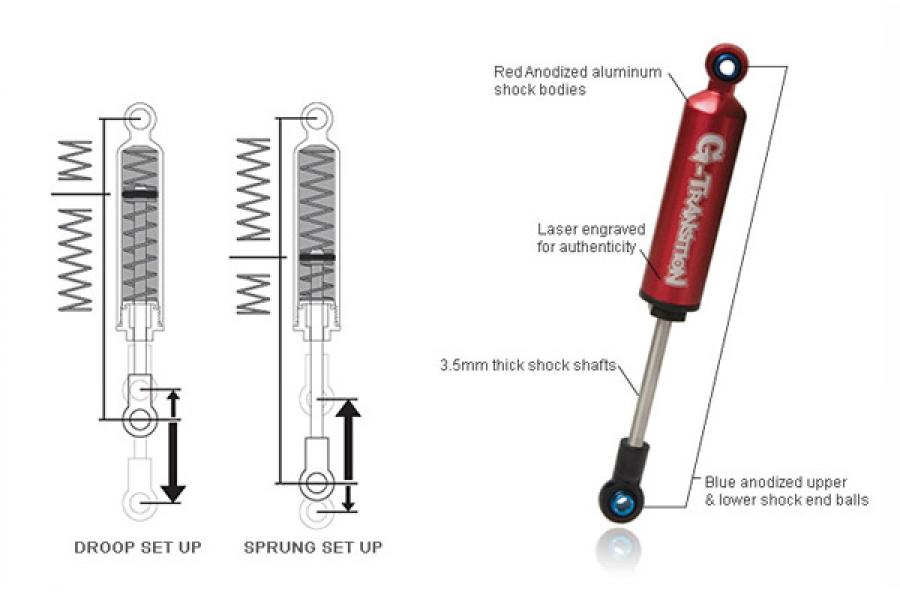

Gmade G-Transition Shock Absorber Detail

R1 G-TRANSITION SHOCK ABSORBER

The G-Transition shock settings can be changed to suit your driving style, courses and terrain, these can be setup to run in Droop or Sprung suspension setup. This can greatly upgrade your driving performance. You can set up to run in Droop or Sprung suspension setup


Gmade R1 Rock Crawler Setup


Gmade R1 Features:

  • Realistic tube chassis
  • Portal axles
  • Portal gears
  • Sealed dust proof transmission
  • Full ball bearings on all of the gears
  • G-Transition Shock absorbers

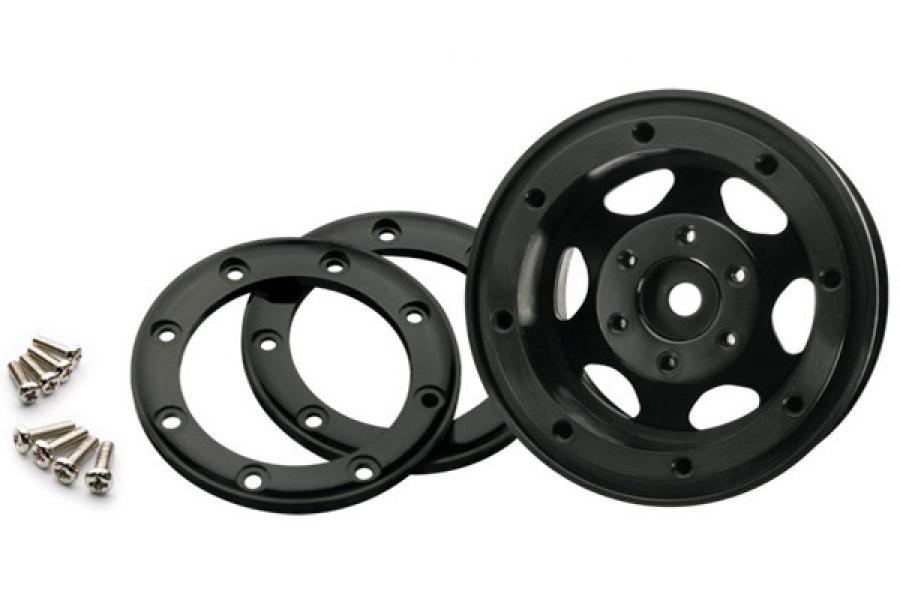

  • 2.2" GT beadlock wheels
  • Super soft Bighorn tyres

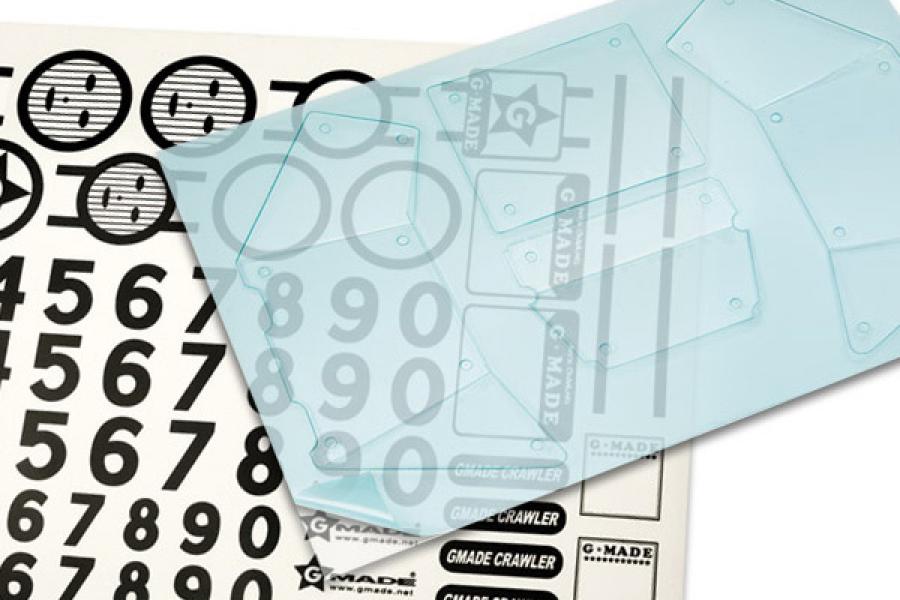

  • Body panels and decals

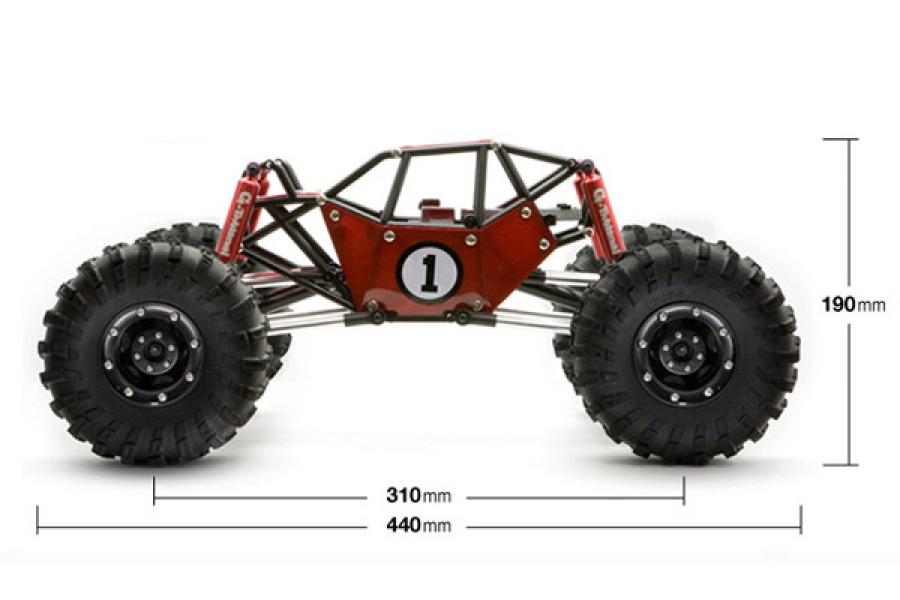

Spec Check:

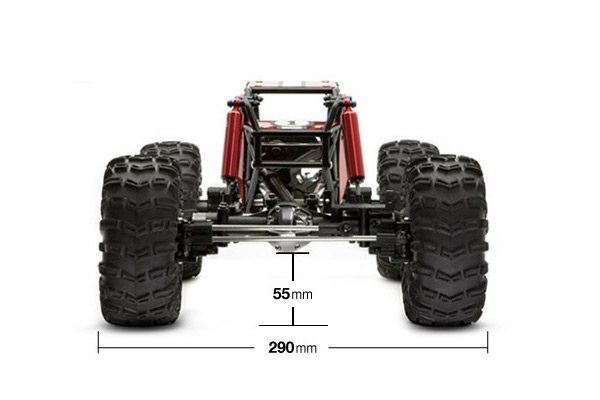

  • Width: 290mm (11.4 inch)
  • Height: 190mm (7.5 inch)
  • Length: 440mm (17.3 inch)
  • Wheelbase: 310mm (12.2 inch)
  • Wheels: 56mm (2.2 inch) Dual side beedlock wheels
  • Tyre Height: 136mm (5.3 inch)
  • Tyre Width: 59mm (2.3 inch)
  • Tyre Inner Diameter: 56mm (2.2 inch)
  • Axle Ground Clearance: 55mm (2.2 inch)
  • Center Ground Clearance (Droop Set-up): 75mm (3 inch)
  • Center Ground Clearance (Sprung Set-up): 95mm (3.7 inch)

2.2 INCH BIGHORN TYRE
Gmade Bighorn Tyres

The Bighorn tyre is made of a super soft compound which is designed to provide high grip over all kinds of terrain. The large diameter enables it to run smoothly on uneven road surfaces and with large deep lugs provides exceptional traction over rock, mud, and dirt.



Tyre Spec:

  • Tyre Height: 136mm(5.3")
  • Tyre Width: 59mm(2.3")
  • Inner Diameter: 56mm(2.2")


Required for completion: 2-Channel radio system & high torque steering servo, 540 size rock crawler motor & ESC, Battery pack & compatible battery charger, Pinion gear & Paint for the clear body panels.
