Mamba Micro X2 Combo with 0808-5300KV Motor

Valmistaja: Castle Creations
195,99 €
star star star star star
Tuotteen lähetysaika 4-6 arkipäivää
-
+
Lisää ostoskoriin Lisää ostoskoriin

wishlist Lisää toivelistalle


Tuotekoodi: 010-0169-02
Numero: CC010-0169-02
Tuotetyyppi: Moottori ja Säädin Combot
Tuotemerkki: Castle Creations

Tekniset tiedot Arvostelut

Tekniset tiedot

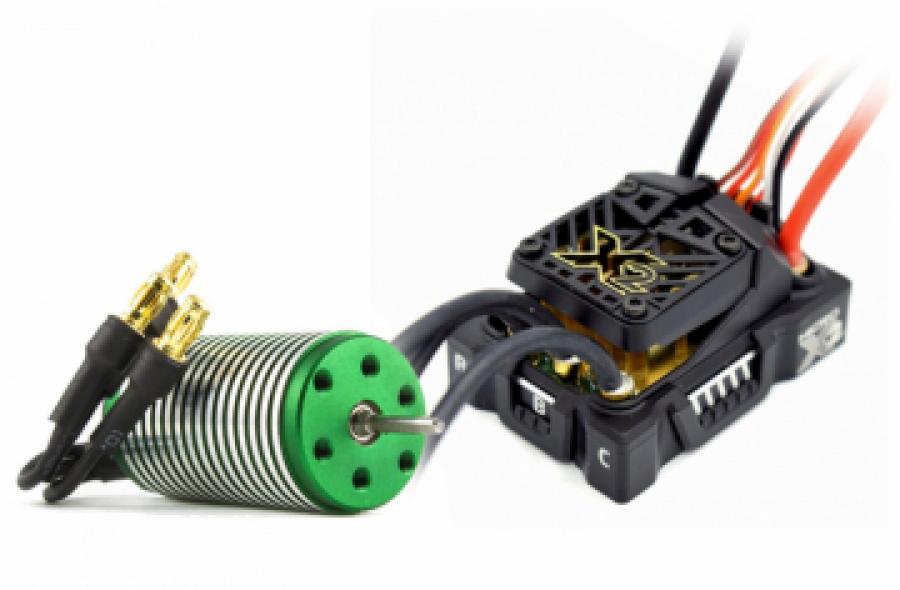

Castle Mamba Micro X2, 16.8V, WP Sensored ESC W / 0808-5300KV MOTOR

The Mamba Micro X2 is a refresh of our popular 1/18 scale Mamba Micro X esc. This new ESC increases the maximum input voltage to 4s (max 3S with this motor combo). We also added DATA LOGGING and our CRYO-DRIVE™ TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it boasts an 2 amp peak BEC,waterproof* and has SENSORED MOTOR SUPPORT (included 0808 motor is sensorless).

This is the perfect upgrade for 1/18 scale RC vehicles, up to 3S LiPo and weighing in at up to 0.9kg. Vehicles include: Losi Mini-T 2.0, Traxxas LaTrax Rally, Traxxas LaTrax Teton & Axial Yeti Jr.

The Mamba Micro X also works well in some 1/10th scale crawlers for low speed operation (no rock racing/hill climbing). You can now purchase the Mamba Micro X2 Crawler Edition ESC paired with our Slate Crawler motors.

ESC FEATURES:

  • Input Voltage range 2S-4S LiPo (16.8V Max) (3S max with included 0808-5300Kv motor)
  • Adjustable BEC: 5.5V or 7.5V (2A Peak), default 5.5V
  • Waterproof design
  • Convenient transmitter programming for six common adjustable settings
  • Additional settings and software updates available via Windows®-based Castle Link software and USB adapter or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
  • Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
  • Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake
  • Audible Alerts that will notify you of possible issues with calibrations and error conditions
  • Designed and manufactured in Olathe, Kansas, USA


Mamba Micro X2 w/0808-5300Kv Motor Combo Includes:

  • Mamba Micro X2 ESC
  • 0808-5300Kv Brushless Sensorless Motor
  • Quick Start Guide
  • Castle Decals


Application Guidelines:

  • Up to 3S LiPo and weighing in at up to 900g
  • Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T & Traxxas Mini E-Revo etc


*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
