Mamba XLX2 8S 33,6V ESC, 2028-1100KV Motor Combo 1/5

Valmistaja: Castle Creations
652,19 €
star star star star star
Tuotteen lähetysaika 4-6 arkipäivää
-
+
Lisää ostoskoriin Lisää ostoskoriin

wishlist Lisää toivelistalle


Tuotekoodi: 010-0167-02
Numero: CC010-0167-02
Varastopaikka: 0.0
Tuotetyyppi: Moottori ja Säädin Combot
Tuotemerkki: Castle Creations

Tekniset tiedot Arvostelut

Tekniset tiedot

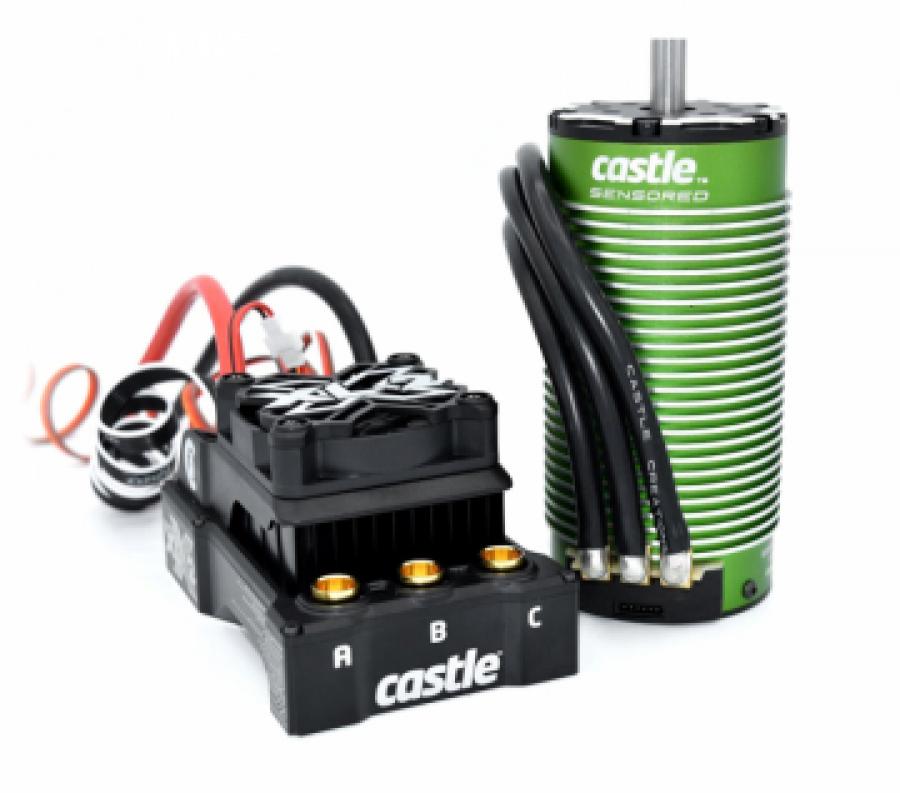

Castle Mamba XLX2, 8S, 33.6V ESC with 2028-1100KV Sensored Motor Combo




Introducing the Mamba XLX2, an ESC that will redefine the limits of 1/5th scale R/C!


Engineered from the ground up, the Mamba XLX2 is packed with a potent combination of hardware and software advancements, sensored performance, CRYO-DRIVE™ and waterproof design that will set a new standard for high performance power systems. The Mamba XL family is well known for its extreme performance capabilities. The XLX2 pays homage to the legacy of its predecessors and exceeds their performance on all levels.

The Mamba XLX2 and 2028-1100kv combo is designed for the most extreme and demanding RC applications. The massive motor and high power ESC are capable of pushing vehicles and drivers to their limits and beyond. This is the perfect combo for vehicles weighing up to 30 lbs and up to 8s LiPo.

MAMBA XLX2 FEATURES:

  • Input Voltage Range 3S-8S LiPo (33.6v max)
  • Sensorless, Sensored, SmartSense™ and Brushed Running Modes
  • Powerful Integrated 20A Peak Adjustable BEC (5.25V-8.0V)
  • CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
  • ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
  • Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
  • Oversized factory equipped thermally controlled 50MM cooling fan
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
  • Mounting holes located in bottom of aluminum case for affixing to your vehicle
  • Waterproof design for all weather conditions
  • Data logging capability to capture and record performance data from your vehicle
  • Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
  • Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
  • Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
  • Easily tune and update ESC with USB and Bluetooth™ programming options
  • Castle Link USB programming kit (coupon included with purchase)
  • Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately and Castle Link all available on Google Play or Apple App Store)


MOTOR FEATURES:

  • 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
  • Proprietary stator winding produces low internal resistance for a cooler running motor
  • Dual sensor ports to ensure optimal installation in your large-scale vehicle
  • Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
  • High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
Application:Car
Motor Type:Brushless
kV Value:1100 kV
Motor diameter:57 mm
Motor length:113,2 mm
Shaft length:30 mm
Shaft Diameter:8 mm
Weight:1250 gram
Max Rev.:45000 rpm
Connector:8mm Bullet
Max voltage:33.6 V
