Platinum Pro 60A ESC LV 3-6S V4

Valmistaja: Hobbywing

71,29 €

Tuotteen lähetysaika 6-12 arkipäivää

Lisää ostoskoriin

Lisää toivelistalle

Tuotekoodi:	30215100
Numero:	HW30215100
Tuotemerkki:	Hobbywing

Tekniset tiedot Arvostelut

Tekniset tiedot ∨

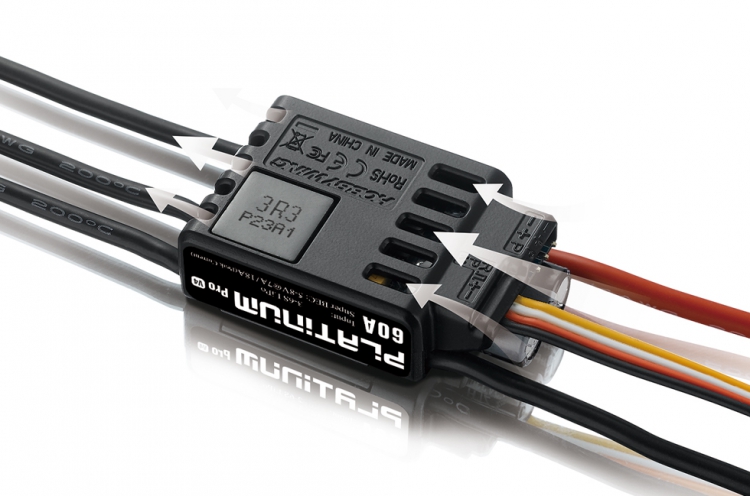

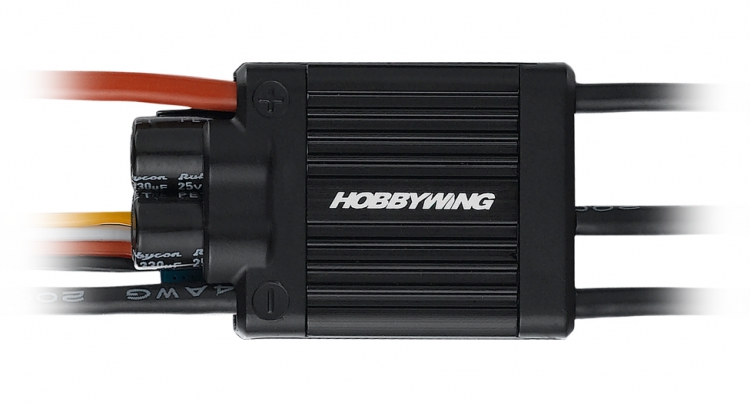

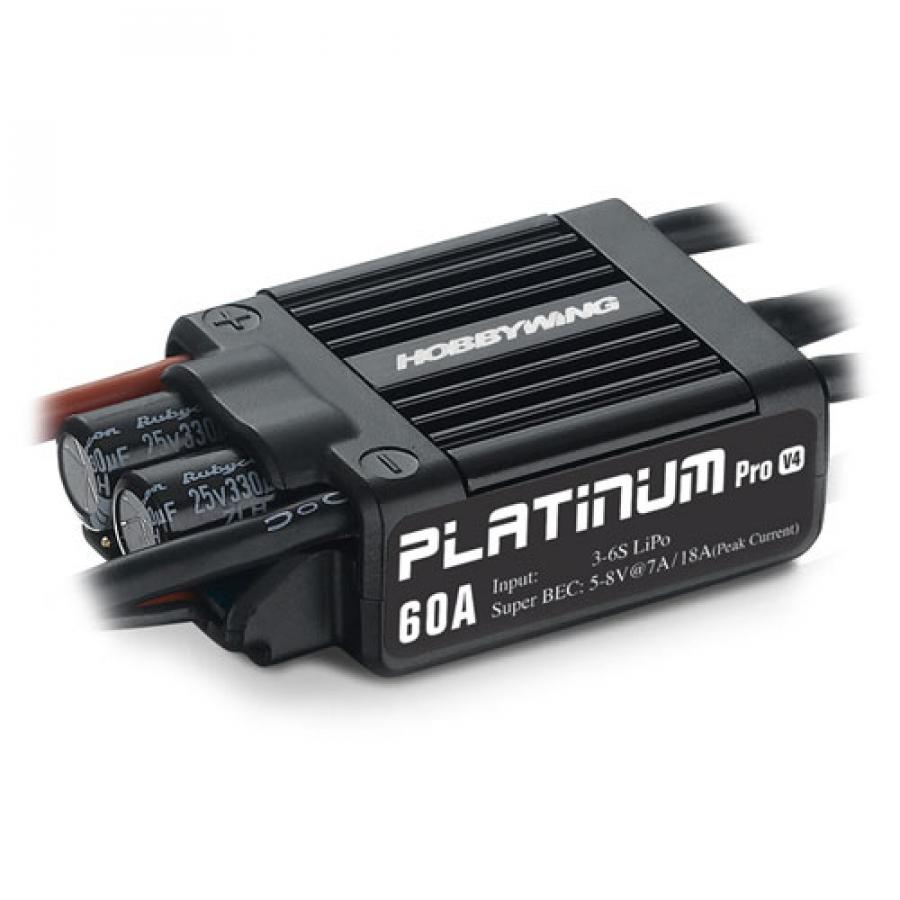

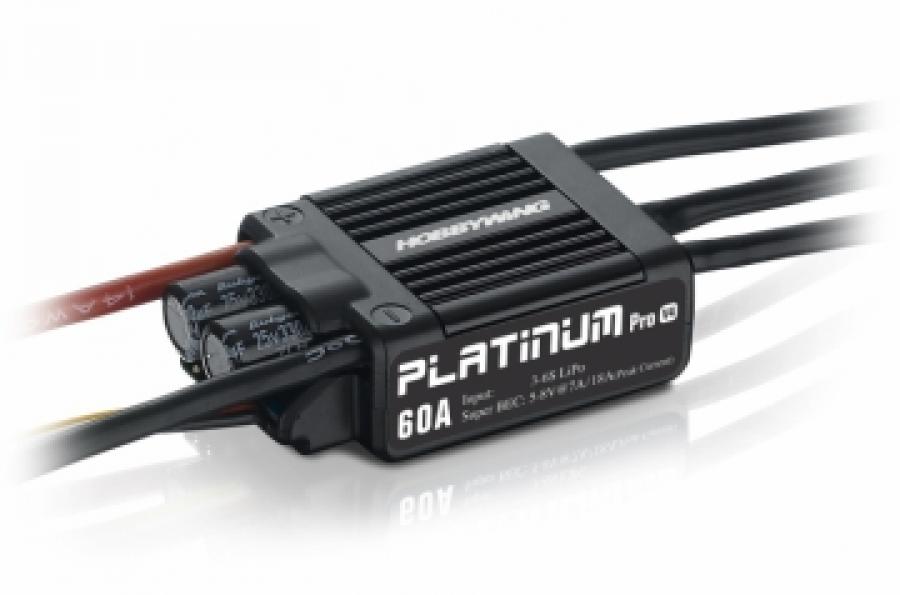

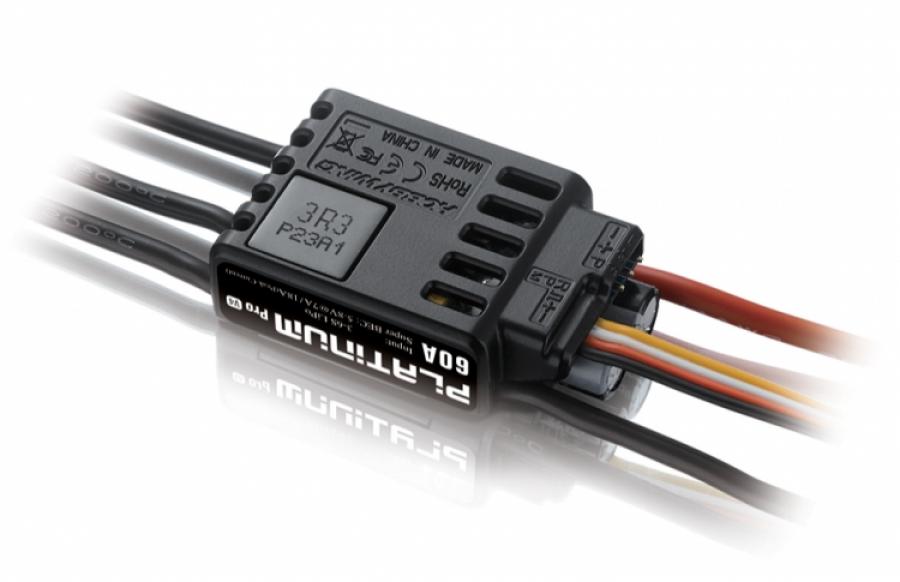

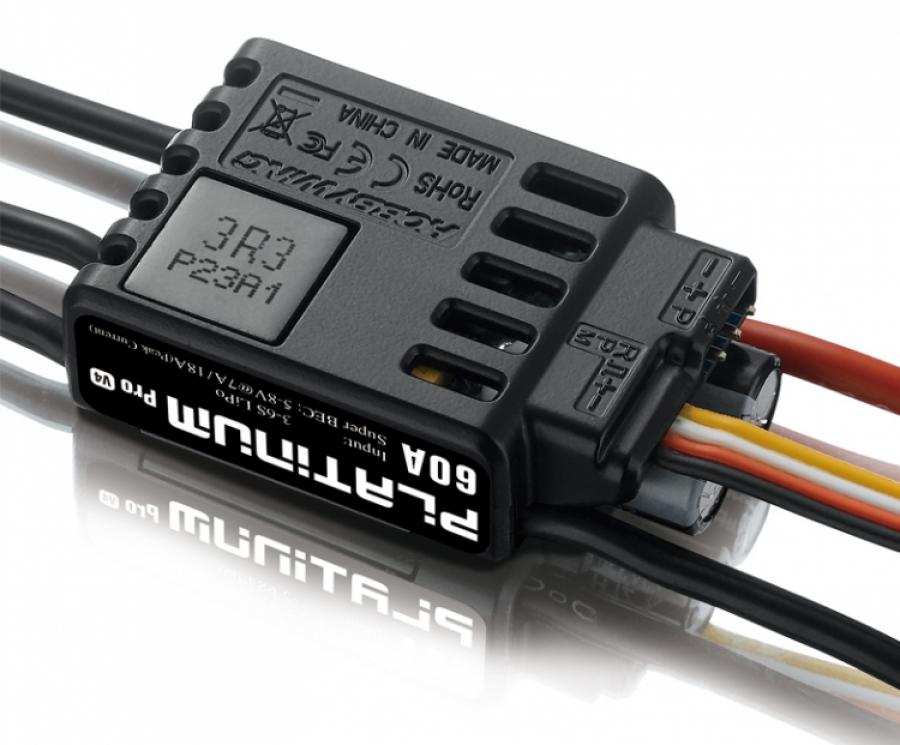

Hobbywing Platinum 60A V4 ESC

Excellent Motor Governing Speed
High-performance 32-bit processor with a running frequency of 72MHz combined with advanced algorithm optimizes the speed governing. Together with the adjustable governor parameters guarantees every pilot a precise control experience.

High Voltage Built-in BEC
The built-in switch mode BEC with an adjustable voltage range from 5V to 8V, a continuous current of over 7A and peak current of 18A can supply enough power for your servos to operate efficiently.

DEO Technology
The DEO (Driving Efficiency Optimization, or so called "Active Freewheeling") technology implemented in the ESC has multiple advantages.

Quicker response to the throttle change.
Higher driving efficiency, longer flight time.
Lower ESC temperature and a more reliable operation.

Four Brake Modes
This Platinum 60A V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake and Reverse Brake” four brake modes. The brake amount is adjustable in normal brake mode; in proportional brake mode, the brake force will be
automatically allocated based on the position of the radio throttle stick; in reverse brake mode, the motor rotation can be changed via a spare transmitter channel.

Multiple Protections
Multiple protection features include, ESC thermal, capacitor thermal (HOBBYWING-patented technology), ESC overload, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC.

Other Features
A separate programming port for connecting the programmer on this ESC allows user to:

Program ESC
Check flight data include minimum voltage, maximum temperature, standardized RPM and speed curve (in Heli Governing Store mode) of the flight data recorded by the ESC
Upgrade ESC firmware with a multifunction LCD program box or a Wi-Fi Module & our Apple/Android phone App

Specifications:

Type: Brushless
High Voltage/Regular: Regular
Cont./Peak Current: 60A/80A
Input Voltage: 3-6S LiPo
BEC Output: Switch Mode:5-8V / 7A
Input Wires: 14AWG x 100 mm
Output Wires: 14AWG x 75 mm
Input Connectors: No
Output Connecotors: 3.5mm Gold Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via:

Transmitter: Not Supported
LED Program Card: Not Supported
LED Program Box: Not Supported
LCD Program Box: Supported
WiFi Module: Supported
Program Port: Program/Throttle Wire
Firmware Upgrade: Supported

Size & Weight:

Size: 48 x 30 x 15.5 mm
Weight: 49g

Applications:

450-480 Class Heli (Main Blade: 325-360mm）
