| Numero: | Z-RTR0042 |
|---|---|
| RC-auton tyyppi: | Crawler (hitaat maastoautot) |
| Käyttövoima: | Sähkökäyttöiset |
| Vetotapa: | Nelivetoinen |
| RC-auton skaala: | 1/10 - pituus n. 40cm |
| Vaikeusaste: | Helppo-keskivaikea RC |
| Sähkömoottorin tyyppi: | Harjallinen moottori |
| Valmiusaste (RTR, Kit): | Valmiiksi koottu (RTR) |

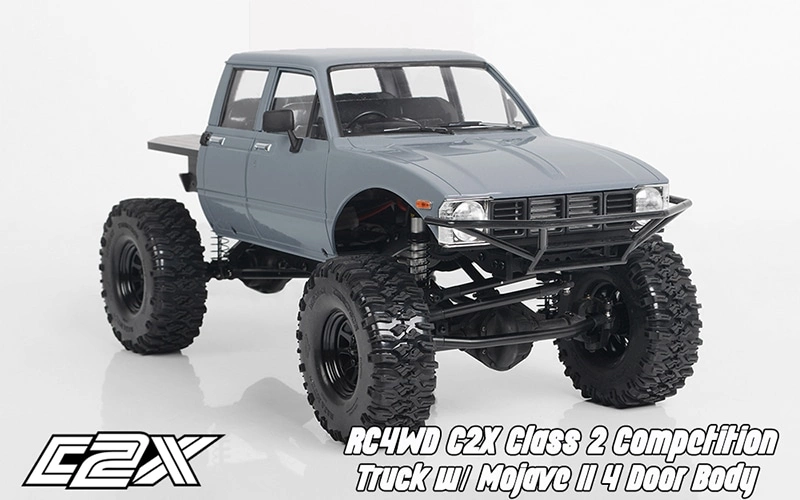

Built from the ground up to be one of the most capable scale trucks RC4WD has created, the C2X was designed with performance and looks in mind. Whether you are an experienced competitor or a casual Trail driver this truck is ready right out of the box.
The C2X features the classic styling of the 4 Door Mojave body mated with the Marlin style grille and machined delrin bed. Underneath, the chassis is 3mm thick CNC aluminum offering multiple mounting positions for the suspension links and rear shocks. Slide over obstacles with ease thanks to the machined delrin skid plate. The heart of the chassis is made up of our trusted R3 Single Speed Transmission with the Hammer Transfer Case.
Whether you're driving for competition or just out trailing on the weekends, the C2X is sure to exceed your expectations.
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears
R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio = 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
D44 Plastic Complete Rear Axle
Ratio: 38/13 = 2.92:1
Width at pin: 182.5mm
C2X Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops
Drive Shafts
High Quality Plastic Material, Ultra Durable High Quality Steel Yokes
Wheels
Name: OEM 1.9" Stamped Steel Beadlock Wheels
Hub: 12mm Hex
Width: 24.3mm
OD: 48.3mm
Features: Stamped Steel, Aluminum Hubs, Internal Beadlock, Scale 6 Lug Design
Truck Dimensions
Wheelbase: 318mm (12.5")
Length: 499mm( 19.6")
Width: 239mm (9.4")
Height: 236mm (9.3")
Ground Clearance: 74mm (2.9")
Final Drive Ratio: 34.9:1
Weight: 7.60Lbs/3.45Kg
