Serie Wire Harness, 6.5mm Polarized

Valmistaja: Castle Creations
RC Adapteri
27,03 €
star star star star star
Tuotteen lähetysaika 4-6 arkipäivää
-
+
Lisää ostoskoriin Lisää ostoskoriin

wishlist Lisää toivelistalle


Tuotekoodi: 011-0087-00
Numero: CC011-0087-00
Varastopaikka: A288
Tuotemerkki: Castle Creations

Tekniset tiedot Arvostelut

Tekniset tiedot

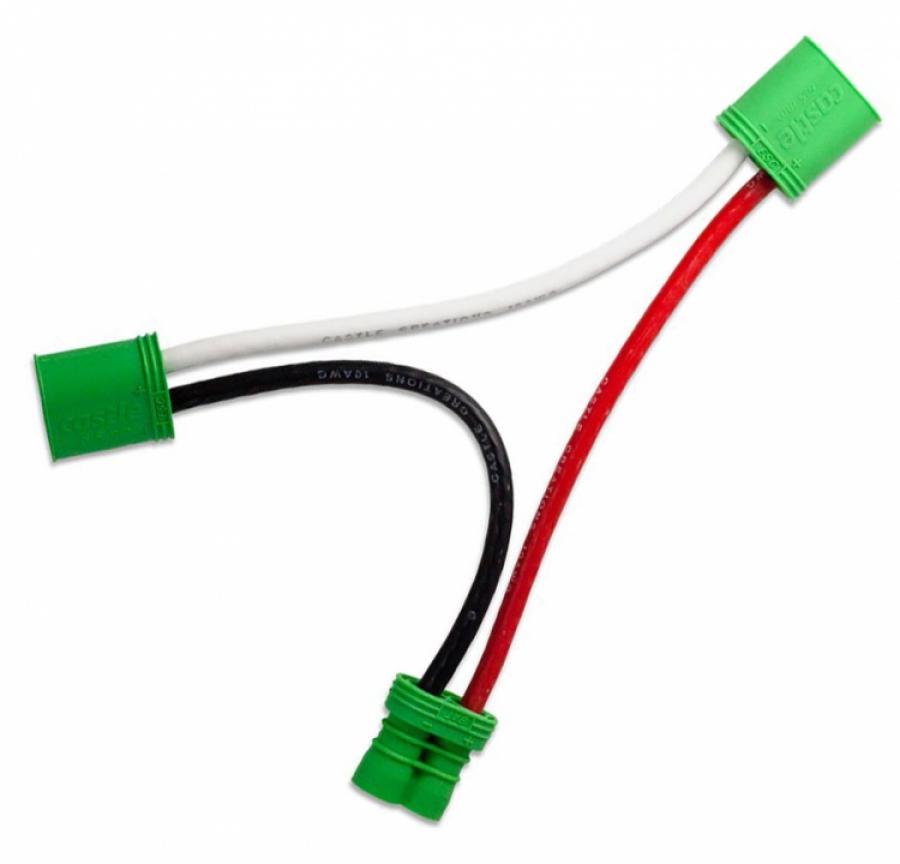

Polarized Series Wire Harness with 6.5 mm Castle Connectors - Double up on power!

The Polarized Series Wire Harness allows you to connect two battery packs in series, combining the voltage of your batteries. For example: two 3S (11.1v) packs will have the output voltage of 6S (22.2v) when connected with this harness.

This harness is factory-fitted with 6.5mm Polarized Castle Connectors. You will need a matching polarized male connector soldered to your ESC and matching polarized female connectors soldered to your batteries.

Castle Connector features:
  • Side ridges on the housing to make them easier to grip
  • Marked for “Battery” and “ESC” for easy reference

Technical Specs:
  • Connector Size: 6.5 mm
  • Wire gauge: 10AWG
  • Connector to connector wire length: 127 mm
  • Overall length: 171 mm
  • Weight: 57 g

Note: Always ensure that your ESC and motor are capable of handling the combined voltage of both batteries. You must always use identically prepared packs with this harness. Both packs must be fully charged and properly balanced. Both packs must be by the same manufacturer, have the same C ratings, and both must have the same capacity and level of charge at all times. Failure to observe this warning will result in damage to your batteries and/or ESC. Castle Creations is not responsible for any damage as a result of misuse of this product.
