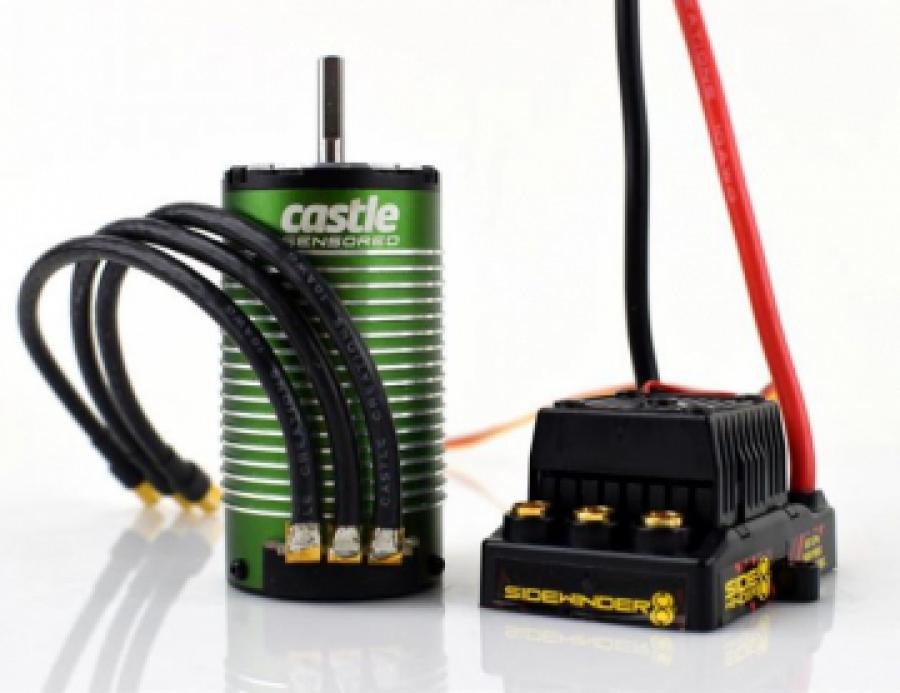

Sidewinder 8th ESC & Castle 1515-2200KV Motor

Sidewinder 8th ESC & Castle 1515-2200KV Motor

Valmistaja: Castle Creations

301,29 €

Tuotteen lähetysaika 1-24h

Lisää ostoskoriin

Lisää toivelistalle

Tuotekoodi:	CC-010-0139-01
Numero:	CC010-0139-01
Varastopaikka:	B063
Tuotetyyppi:	Moottori ja Säädin Combot
Tuotemerkki:	Castle Creations

Tekniset tiedot Arvostelut

Tekniset tiedot ∨

Sidewinder 8th is a sport 1:8 scale waterproof combo capable of 2-6S LiPo, with an 8 amp peak BEC. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 11 lbs. It can also work as a great upgrade for some 4WD short course trucks for 3s or 4s operation. It also comes standard with a highly efficient ESC cooling fan.

Features:

2-6S LiPo (25.2V) use in vehicles up to 5Kg (11.lbs) with battery, ready-to-run.
Smooth sensorless motor operation with included 1515-2200kv sensored brushless motor
Large 6.5mm female motor bullet connectors (male connectors sold separately)
Waterproof design ESC and splash resistant 30MM fan
Powerful 5.5 volts fixed, 8 amps Peak BEC
LED error codes for common error conditions
Convenient transmitter programming for nine common adjustable settings
Full compatible with the Castle Link Programming Suite to modify settings and download software updates available via Windows®-based Castle Link software and USB adapter (sold separately), Field Link Card (sold separately), or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)

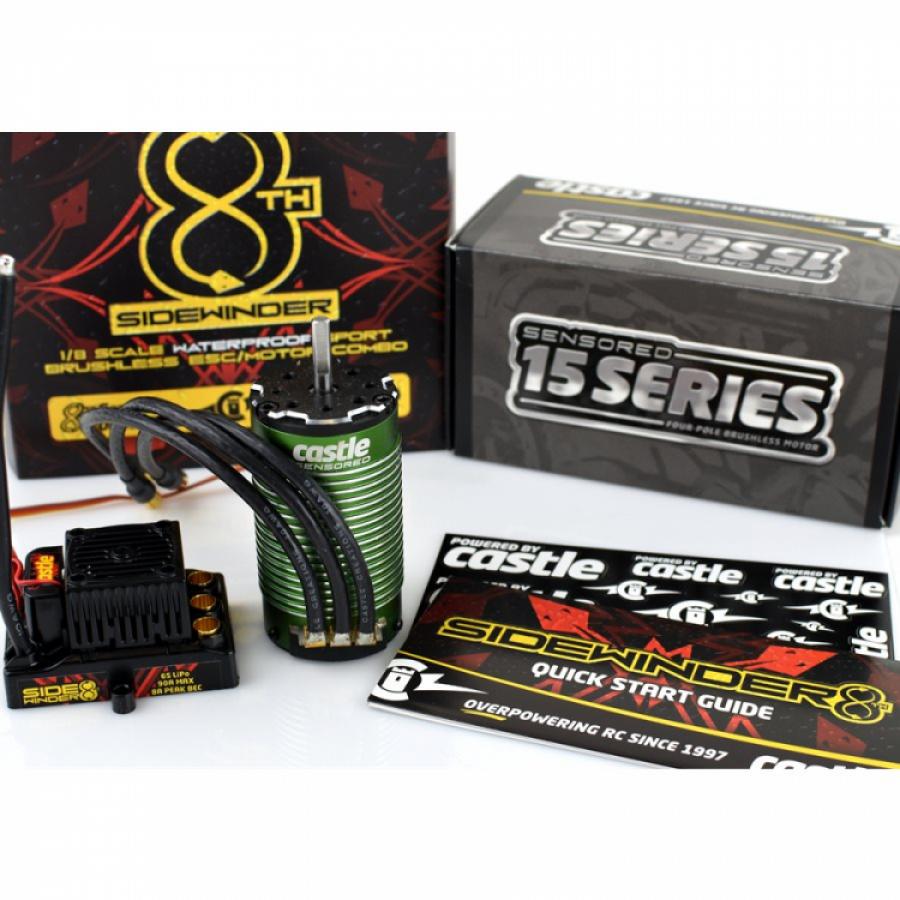

Sidewinder 8 Combo includes:

Sidewinder 8th ESC
Castle 2200Kv brushless sensored motor
Drivers Ed and Quick Start Guide
Castle decal sheet

Sidewinder 8th ESC Specs:

Input voltage: MIN: 2S LiPo; MAX: 6S LiPo
BEC specifications: 5.5V fixed; 8A peak
Operating environment: Waterproof design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes - with lockout
Size: L62.2 x W56 x H34 mm
Weight (without battery connector soldered to ESC): 100 g
Motor connectors: 6.5 mm CC Bullets

Motor 2200kV Specs:

KV: 2200
Max RPM: 60,000
Max Input Volts: 25.2
Weight: 429 g
Motor Length: 75.3 mm
Motor Diameter: 40 mm
Shaft diameter: 5.0 mm
Connector: Gold 6.5mm male bullets

Legal mumbo jumbo that we need you to read:
Although Sidewinder 8th and Castle brushless motors are waterproof, they can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
