Sidewinder Micro ESC & Castle 0808-8200KV Motor

Sidewinder Micro ESC & Castle 0808-8200KV Motor

Valmistaja: Castle Creations

Säädin- ja moottoricombo RC-autolle

130,60 €

Tuote tilapäisesti loppu

Tuote on tilapäisesti loppu varastostamme ja maahantuojaltamme. Tuotteen saatavuudesta ei tällä hetkellä ole tietoa.

Voit jättää sähköpostiosoitteesi alle, niin saat sähköpostia kun tuote on taas saatavilla.

Lähetä

Lisää toivelistalle

Tuotekoodi:	CC010-0150-03
Numero:	CC010-0150-03
Varastopaikka:	0.0
Tuotetyyppi:	Moottori ja Säädin Combot
Tuotemerkki:	Castle Creations

Tekniset tiedot Arvostelut

Tekniset tiedot ∨

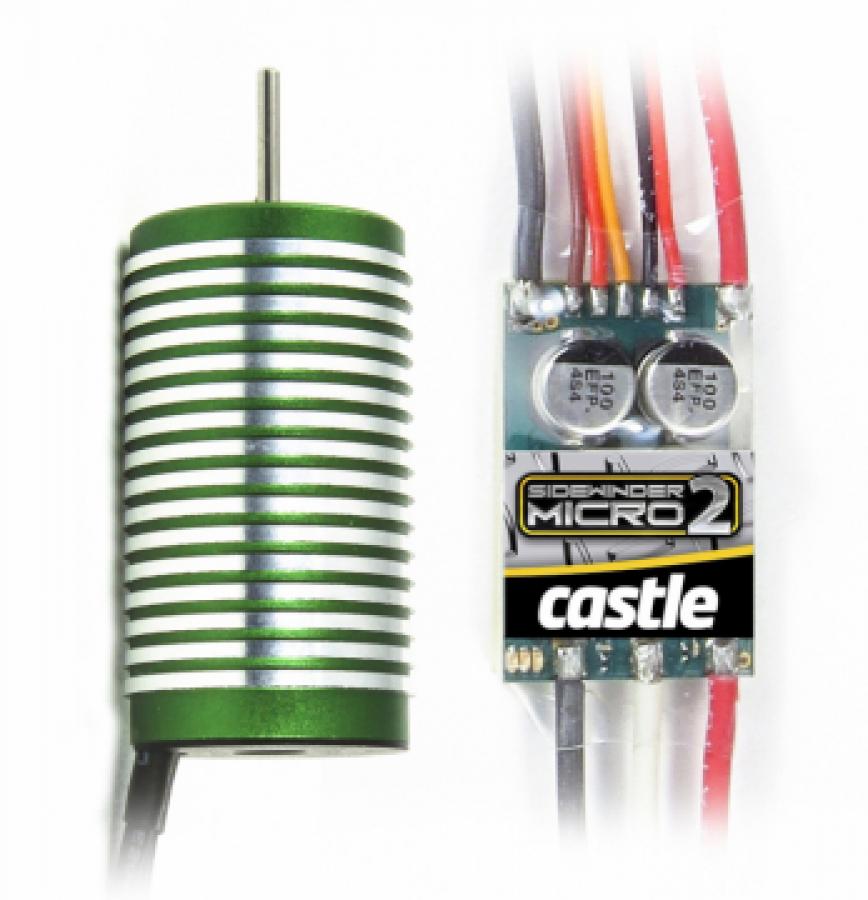

Castle Sidewinder Micro 2 Sport 1/18 ESC + 0808-8200KV Motor Combo

Awesome, Affordable Micro Performance!

Sidewinder Micro 2 is our entry level 1/18 scale controller capable of 2S - 3S LiPo, with a 2 amp peak BEC, and is perfect for 1/18 scale 2WD vehicles and smaller 4WD (up to 900g) such as the Team Associated RC18B2 or Dromida SC4. Whether you are converting to a brushless setup or simply want more power than your current brushless power system is putting out, Sidewinder Micro 2 is the perfect controller to fit your needs.

Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo)

Sidewinder Micro 2 features:

Adjustable BEC functionality: 5.5V or 7.5V (default 5.5V)
The ability to diagnose and resolve problems in the field are made easy as this ESC will communicate with audible tones when certain conditions are present. Alerts are present for start fail, voltage cutoff, radio glitch, over-temperature, over-current and excessive load detections.
Updated circuitry and refined software makes for ultra-smooth starts.
Link Live to communicate power system information to an external device. This feature, when enabled, will allow users to experience real-time telemetry data such as battery voltage, ESC temperature, motor power output and battery ripple. Compatibility with the Futaba S.BUS® T4PX transmitter (requires purchase of Castle Telemetry Link for S.BUS2).
Manual programming settings include Brake/Reverse Type, Voltage Cutoff, Brake Amount, Drag Brake and Motor Type.

Waterproof: No
Telemetry Capable: Yes
Data Logging: No
Auxiliary Wire: No
Minimum Input Voltage: 2S
Maximum Input Voltage: 2S
Sensored Capable: No
Recon G6 Certified ESC: No
ROAR Certified ESC: No
CRYO-DRIVE: No

ESC Specs:

Input Voltage Range: MIN: 2S LiPo / MAX: 3S LiPo / 4-9 cell NiMH (max 2S in this combo)
BEC Specifications: 2A Peak BEC, Adjustable: 5.5V or 7.5V, default 5.5V
Operating Environment: N/A
Brake: Proportional
Reversible: Yes, but can be disabled for racing
On/Off Switch: Yes
Cooling Fan: No
Length: 38mm
Width: 22mm
Height: 12.7mm
Weight (w/wires): 26g
Connectors: 3.5mm bullet connectors on the motor wires
Items Needed for Operation: Battery connectors
Product Use Statements: Not intended for use in wet conditions, the ESC is not waterproof
Application Guidelines: 1/18th scale RC hobby vehicles weighing up to 0.9kg
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
Telemetry Link Capable: Yes
Tech Notes: The Sidewinder Micro 2 has 3.5mm bullet connectors on the motor wires and the battery input wires are bare. You must add the connector of your choice to the battery leads. We recommend a high current connector rated for at least 40 amps.

Motor Specs:

Input Voltage Range: 2S LiPo, 4-7 cell NiMH
Kv: 8200
Max. RPM: N/A
Length: 38.1mm
Diameter: 20mm
Shaft Diameter: 2mm
Shaft Length: 12mm
Weight: 50g
Mounting Hole Specifications: 2.5mm holes @ 1/2”, 14MM, 5/8”
Cooling Fan: No
Connectors: 3.5mm male bullets
Items Needed for Operation: N/A
Product Use Statements: N/A
Application Guidelines: Intended for 2WD and lighter 4WD vehicles (<0.9kg)
Max. Recommended Vehicle Weight: 900g
Tech Notes: Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 82°C on the the motor or ESC.
