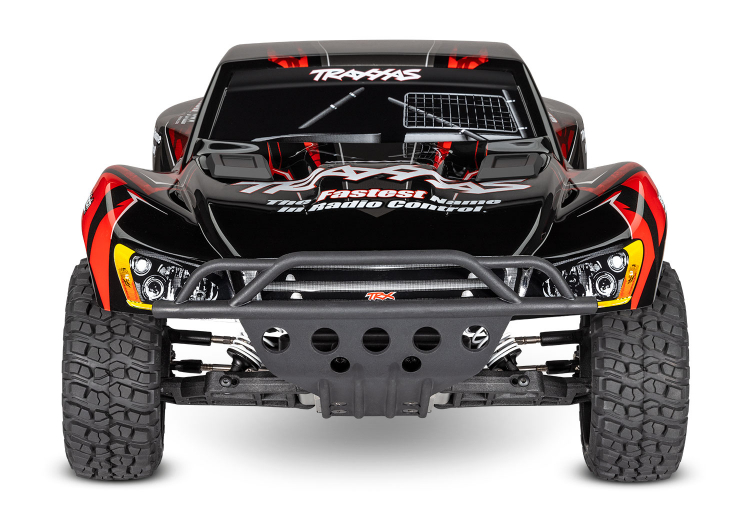

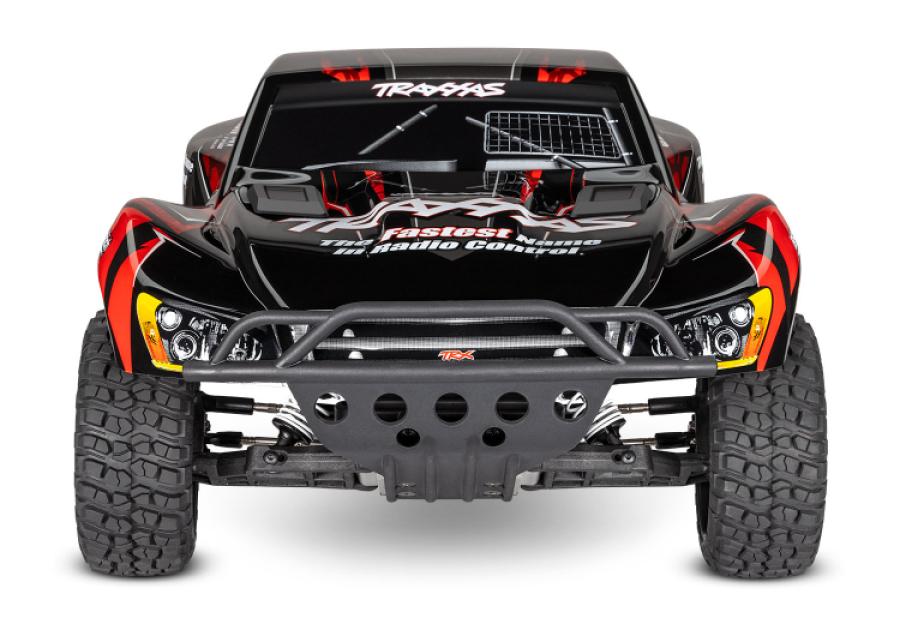

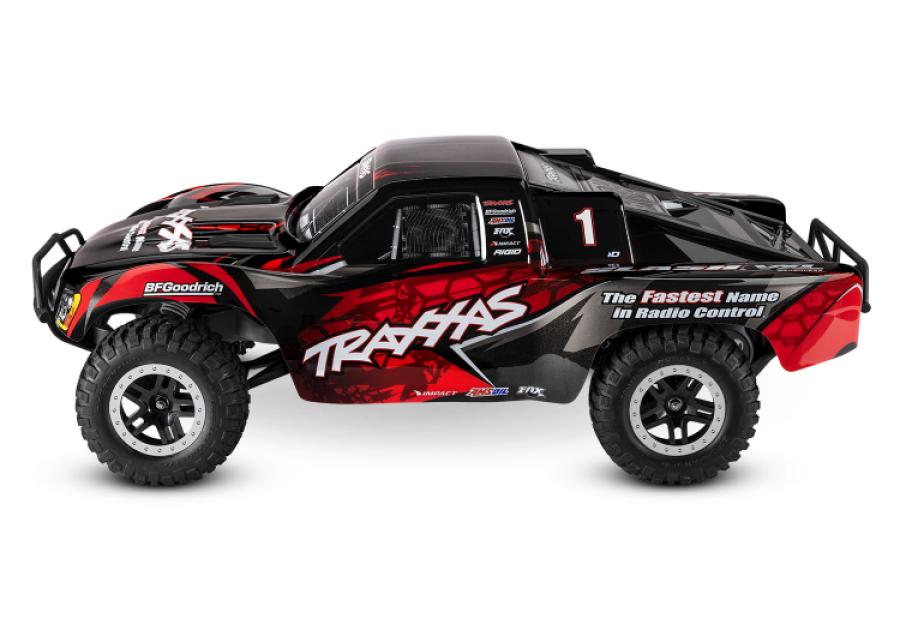

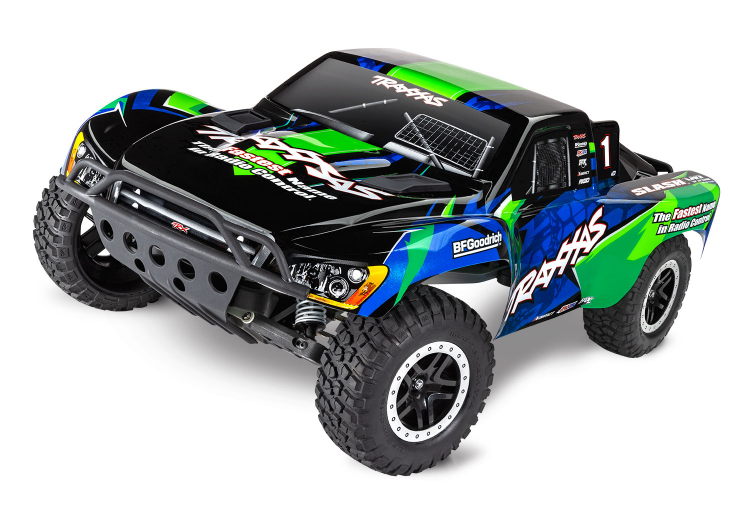

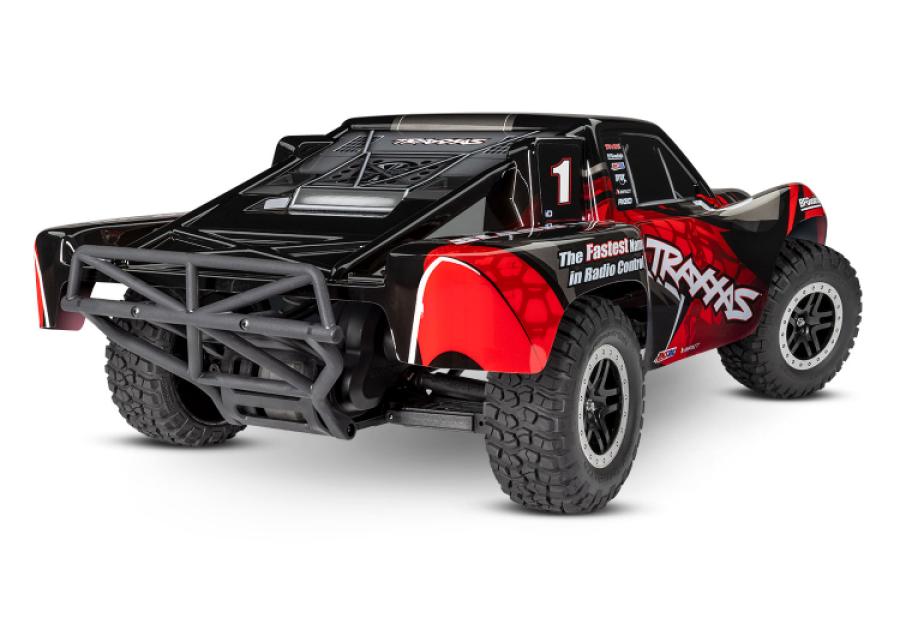

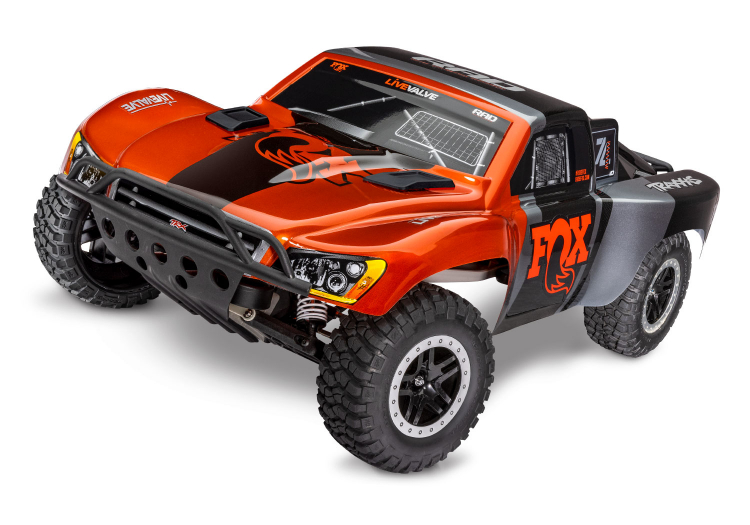

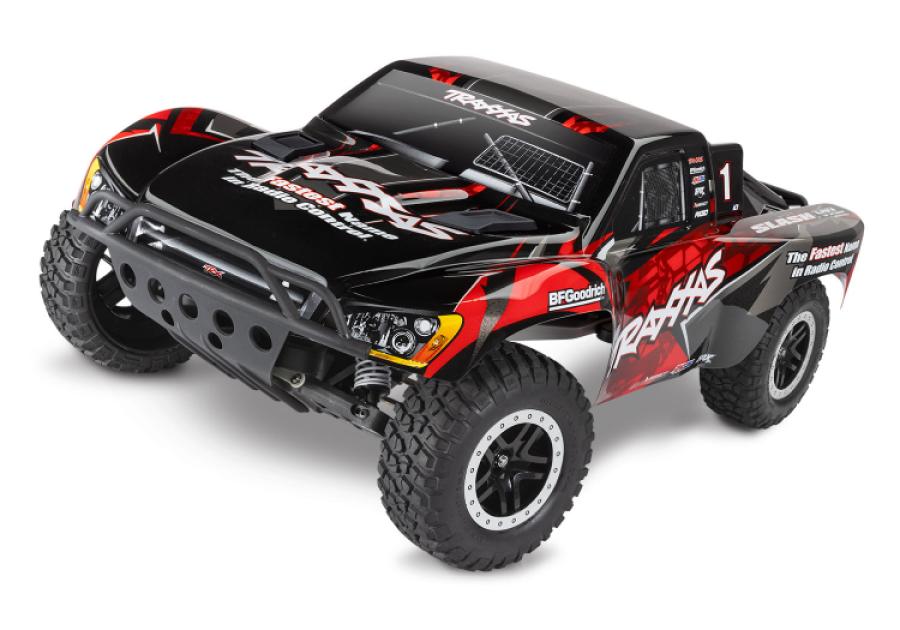

Slash VXL 2WD Clipless 1/10 RTR TQi TSM Fox 272R w/o Battery & Charger

Traxxas 58276-74-FOX - Slash 2WD VXL Clipless - FOX

The Traxxas Slash VXL puts you in the driver’s seat for intense fender-to-fender, high-flying off-road action. Since its introduction, the Slash has set the standard for durability, performance, and technology. Traxxas Stability Management® puts Slash VXL’s tire-shredding power to the ground while making it incredibly agile and easily controllable. Extreme Velineon® brushless power provides screaming 96+kph† speed while the advanced TQ™ radio system keeps everything under precise control. With just one drive you will see why the Traxxas Slash VXL elevates short course performance to a whole new level.

FEATURES ON SLASH VXL (58276-74):

• ­Pre-painted clipless race replica body
• Magnum 272R™ transmission
• Aluminum motor plate
• All-metal internal gears
• Sealed beveled-gear differential
• Velineon® brushless power system
• Traxxas Stability Management TSM®
• TQi™ 2.4 GHz transmitter and receiver
• Waterproof electronics
• Digital high-torque waterproof steering servo
• Precision steel turnbuckles with heavy-duty rod ends
• 100% Fully assembled and Ready-To-Race®
• Battery and charger sold separately

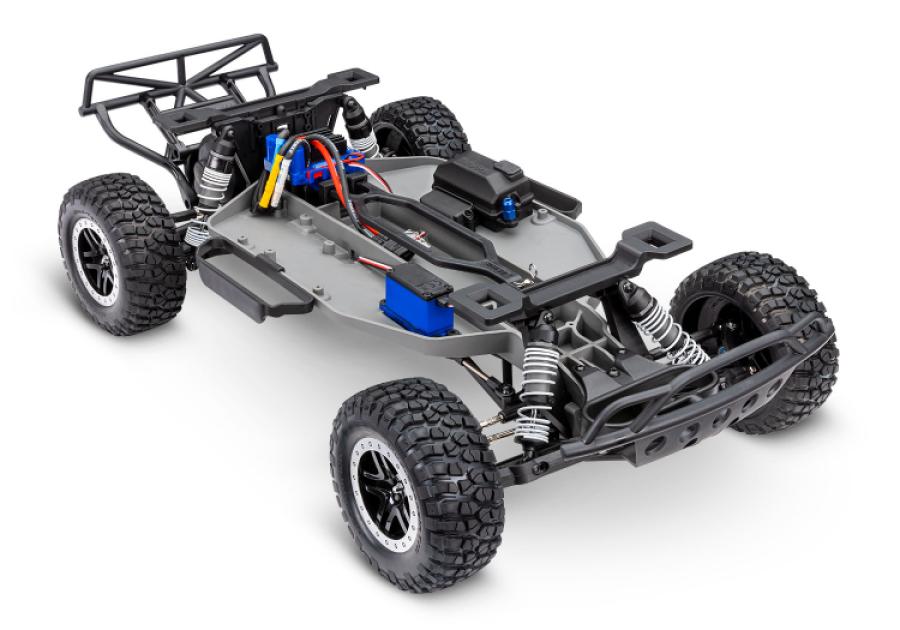

Clipless Body Mounting
Slash's innovative clipless body features secure mounting with quick and easy removal. No posts, no clips—just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift up to access the chassis in just seconds.


Pro Series Magnum 272R™ Transmission
The Magnum 272R uses a new low-profile housing with a rock-solid 3.2 mm aluminum motor plate. A hardened steel top shaft and all-metal gears send power to a sealed, silicone-filled 4-gear differential for maximum traction. A removable panel gives you easy access to the differential for tuning with different viscosity fluids. Originally developed for the hard-hitting Drag Slash, the Magnum 272R delivers competition-grade performance for your Slash VXL.




Class-Leading Velineon Brushless Power
The Velineon brushless motor and electronic speed control deliver the ultimate in efficiency, speed, and run time. With the Slash VXL, your battery selection determines your speed and skill level. Velineon accepts a wide range of batteries, including powerful 3-cell LiPo packs. These packs pump out over 11 volts of power for intense, skill level 5 speeds beyond 100 kph! Built-in low-voltage detection in the VXL-3s™ ESC helps you maintain your LiPo packs in top condition.





SLASH VXL (58276-74) SPECS:

• Length: 568 mm
• Width: 296 mm
• Weight: 2.56 kg
• Height (overall): 214 mm
• Wheelbase: 335 mm
• Front Shock Length: Long
• Rear Shock Length: XX-long
• Front Tires: Slash 2.2/3" (pre-glued with inserts)
• Rear Tires: Slash 2.2/3" (pre-glued with inserts)
• Front Wheels: 2.2/3" satin or chrome-finish
• Rear Wheels: 2.2/3" satin or chrome-finish
• Speed Control: VXL-3s™
• Motor (electric): Velineon® 3500 brushless
• Gear Ratio (internal): 2.72 (final drive: 10.2)
• Differential Type: Steel composite planetary
• Gear Pitch: 48-pitch
• Transmission: Metal gear Magnum 272™
• Steering: Bellcrank

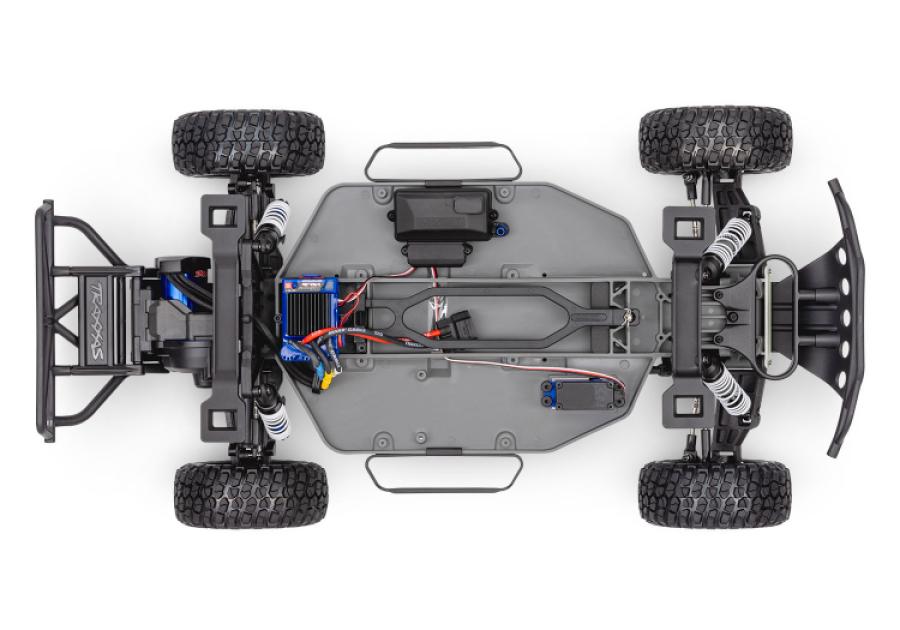

• Chassis Type: Long-wheelbase fiber-composite chassis
• Chassis Material: Composite Nylon
• Center Ground Clearance: 89 mm
• Top Speed: 96+kph*
• Skill Level: 1
• Radio System (transmitter): TQi™ 2.4 GHz (2-channel)
• Radio System (receiver): Traxxas Stability Management (TSM)® (6533)
• Battery Tray Dimensions**: 165 x 49.5 x 23/25 mm
• Required: ­ NiMH or LiPo battery, charger, 4 "AA" batteries (transmitter)

**Battery expansion kit available (5827X).

VXL-3s WATERPROOF ESC SPECIFICATIONS:

• Input Voltage: NiMH 6-9 Cells (7.2 to 10.8 volts); LiPo 2-3 Cells (7.4 to 11.1 volts DC)
• Case Size: 39 x 55  x 33 mm
• Weight: 90 gr
• Motor Limit (Brushless): No motor limit
• On Resistance Forward: 0.00075 ohms
• On Resistance Reverse: 0.00075 ohms
• BEC Voltage: 6.0 volts
• BEC Current: 2.5 amps
• Power Wire: 12-gauge Maxx® Cable
• Input Harness Wire: 26 gauge
• Low Voltage Detection: 2-stage indicators, switchable (on or off)
• Thermal Protection: 2-stage thermal shutdown
• Single-Button Setup: Traxxas EZ-Set®
• Battery Input Connector : Traxxas High-Current Connector
• Motor Types : Brushless
• Ports: RX input, auxiliary fan

Profile selection:

• Sport Mode: 100% FWD, 100% BRAKES, 100% REV
• Race Mode: 100% FWD, 100% BRAKES, NO REV
• Training Mode:* 50% FWD, 100% BRAKES, 50% REV

*Patented
