Tamiya 1/10 R/C TOYOTA GR SUPRA (TT-02) / NO ESC rc-auto

Valmistaja: Tamiya
120,90 €
star star star star star
Tuotteen lähetysaika 4-10 arkipäivää
-
+
Lisää ostoskoriin Lisää ostoskoriin

wishlist Lisää toivelistalle


Tuotekoodi: 58674
Numero: V545159
RC-auton tyyppi: Rata-auto
Käyttövoima: Sähkökäyttöiset
Vetotapa: Nelivetoinen
RC-auton skaala: 1/10 - pituus n. 40cm
Sähkömoottorin tyyppi: Harjallinen moottori
Valmiusaste (RTR, Kit): Rakennettava sarja
Vaikeusaste: Keskitason haastavuus
Tuotemerkki: Tamiya

Tekniset tiedot Optio- ja lisäosat Arvostelut

Tekniset tiedot

1/10 R/C TOYOTA GR SUPRA (TT-02)



A Real Beauty
Upon its global debut in January 2019, the TOYOTA GR Supra created a worldwide buzz.

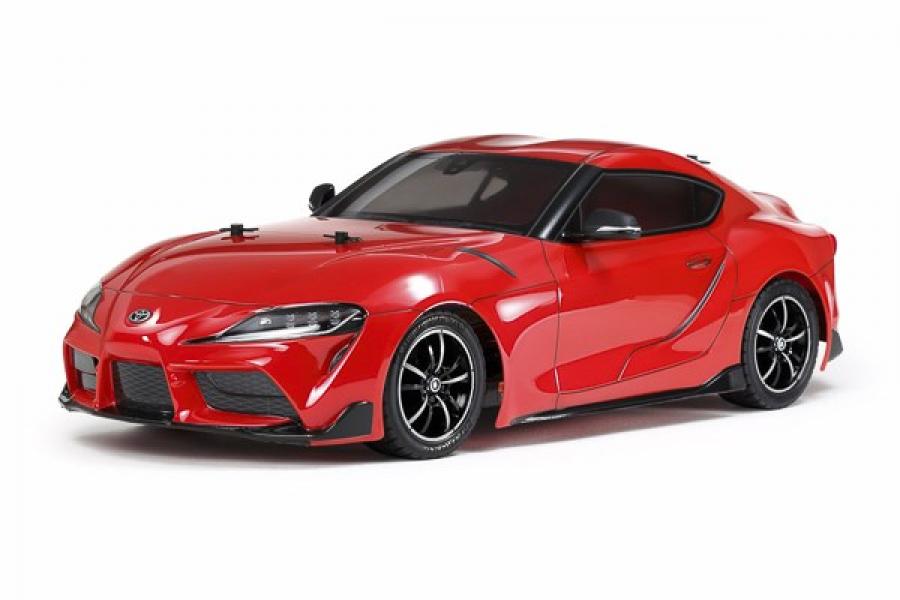

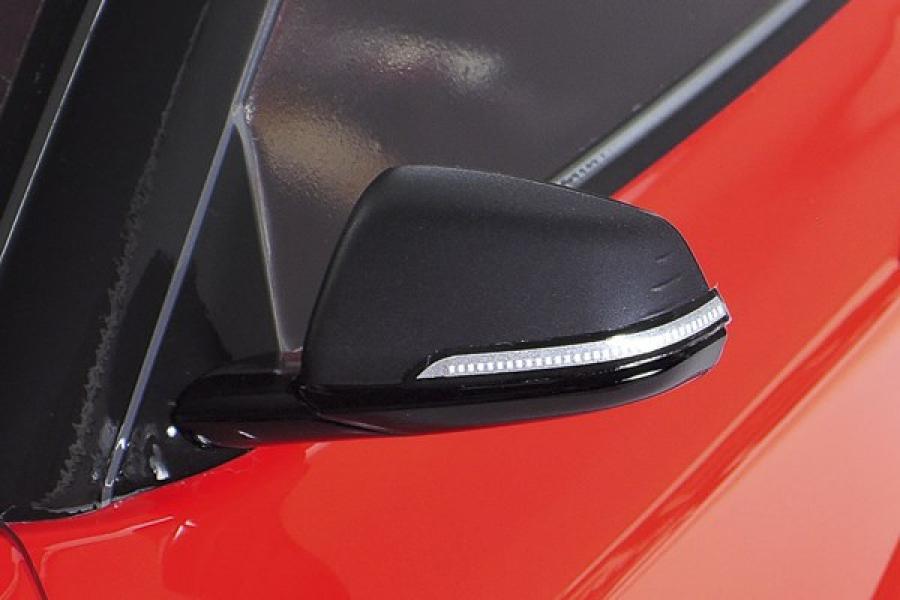

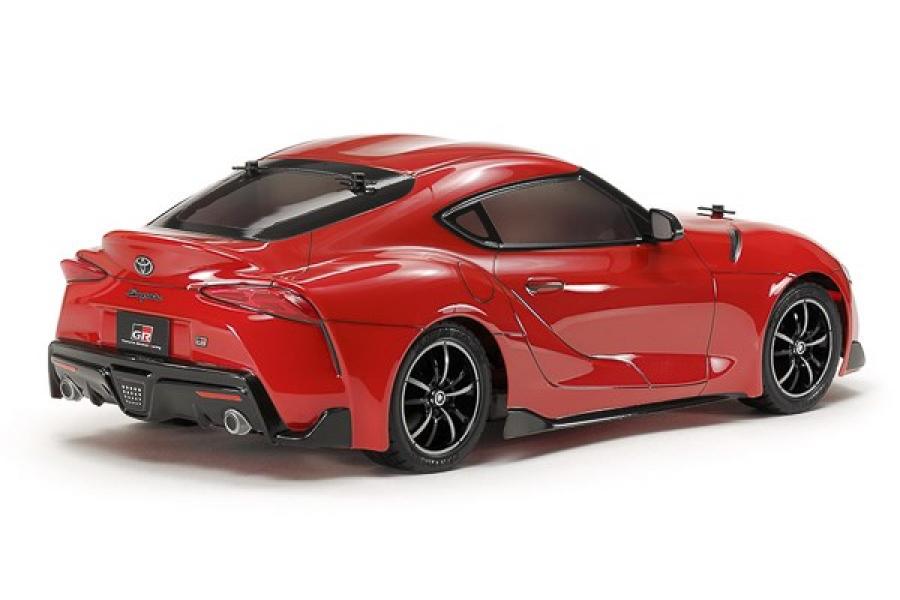

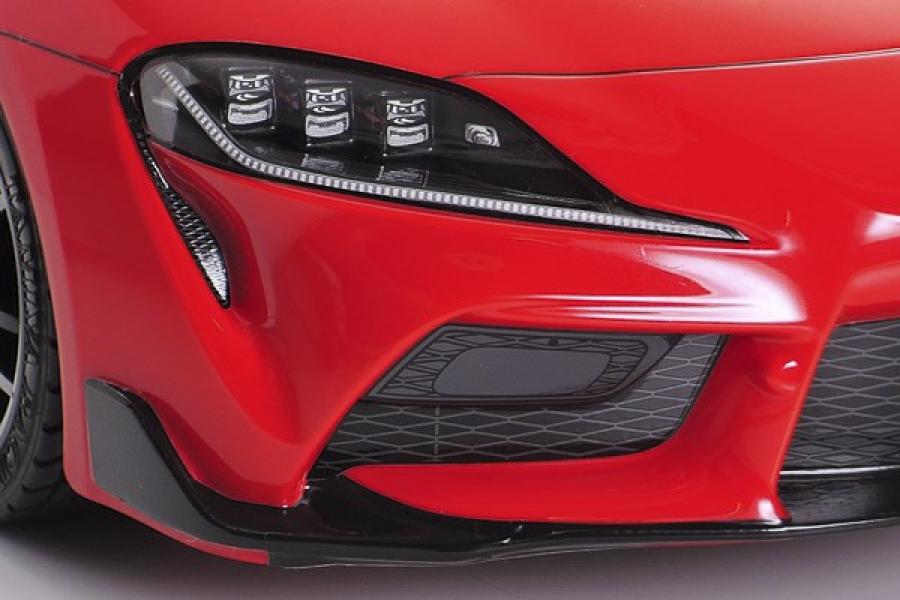

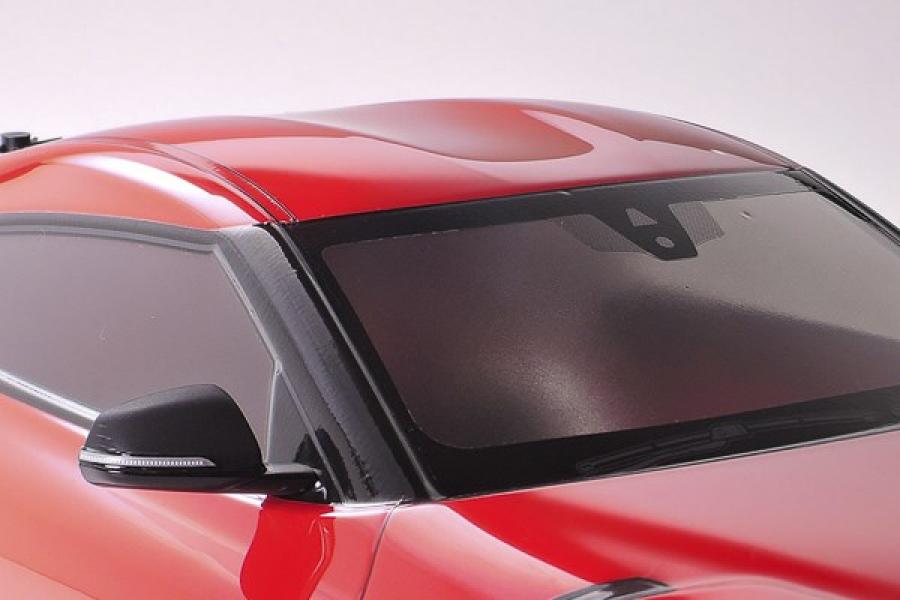

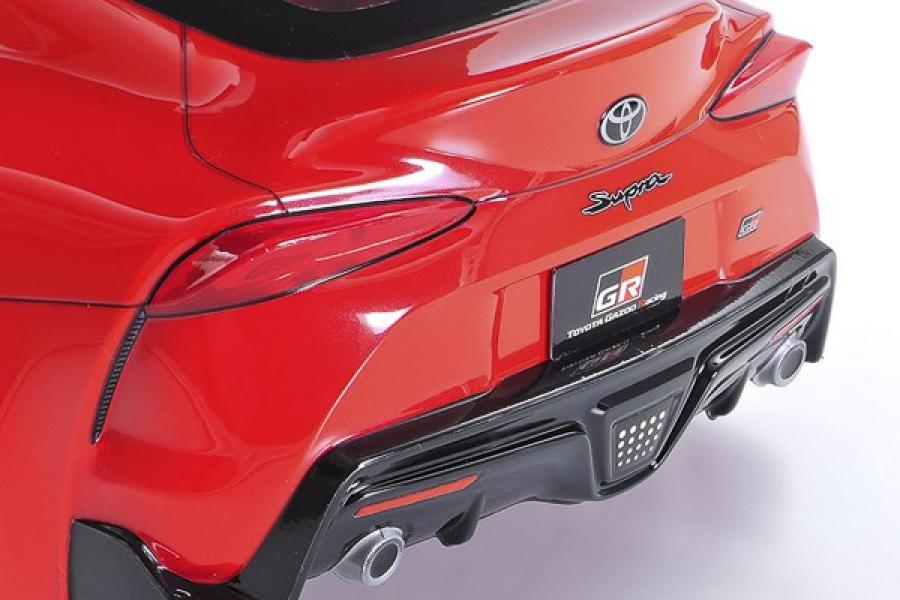

Now, it appears as an R/C model assembly kit. The sensuous long nose, short deck form with striking double-bubble roof is recreated in lightweight and durable polycarbonate, with separate polycarbonate front and rear light cases, plus molded plastic side mirrors. Stickers are included in the kit to depict details such as wipers and emblems, and the car is based upon the reliable and beginner-friendly TT-02 chasssis.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes.

It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. 10-spoke wheels feature rim stickers and are paired with tread-patterned racing radial tires.



TT-02: Adaptable, balanced shaft driven 4WD


The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes.

It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports



TT-02 Tech Spec Images

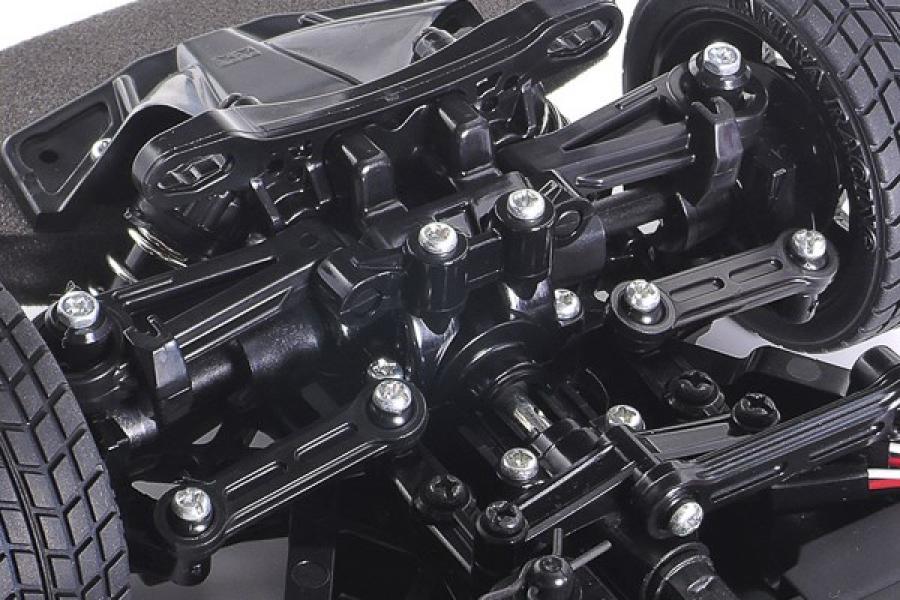

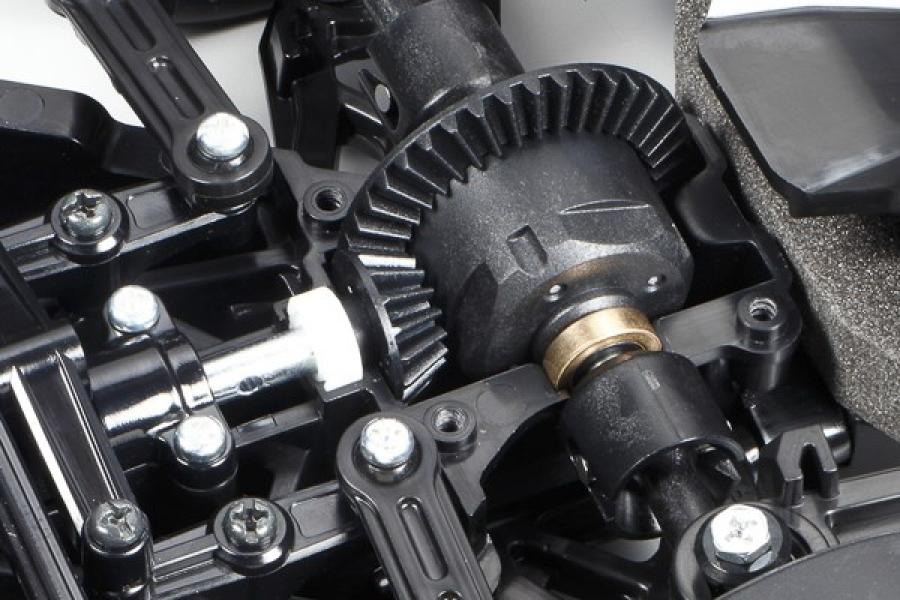

Gearbox cover can be removed simply with the loosening of screws on the frame. Molded 4-bevel differential gears ensure that the model offers smooth drive and cornering. Resin ball links in the steering linkage joints make for smooth, comfortable motion.

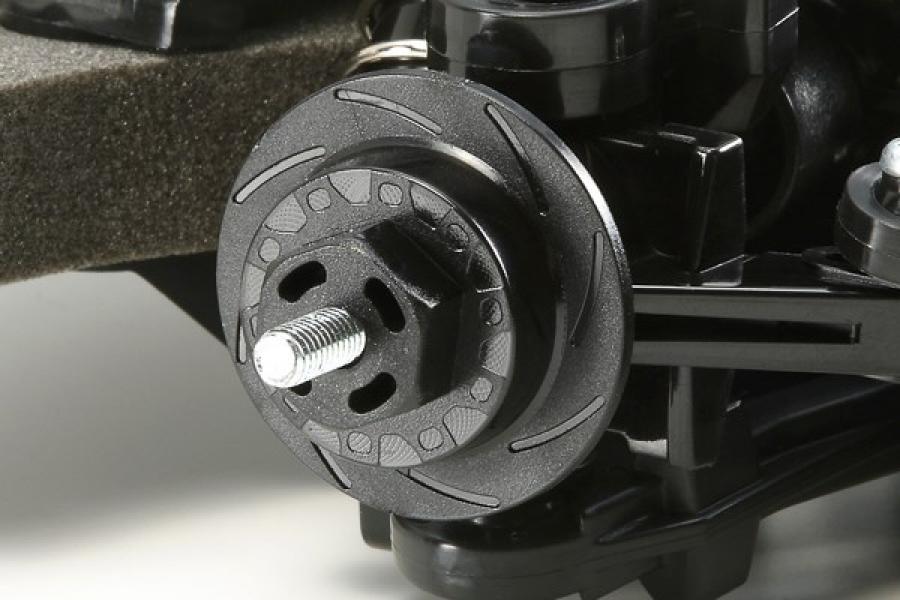

Wheel hubs are designed to look like brake discs for a realistic and stylish appearance. 4-wheel double wishbone suspension utilizes friction dampers for a controllable ride.  Motor cover includes removable cooling duct (not attached in above image).


Specifications

  • Length: 457mm, Width: 188mm, Height: 133mm
  • Wheelbase: 257mm
  • Tire Width/Diameter: 26/66mm (Front & Rear)
  • Bathtub-type Frame
  • Shaft-Driven 4WD
  • Front/Rear 4-Bevel Resin Differentials
  • 3-Piece Steering Tie-Rod
  • 4-Wheel Double Wishbone Suspension
  • Front/Rear Friction Dampers
  • Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
  • Type 540 Motor
  • Electronic Speed Controller (ESC) is sold separately.



Separately Required Items

  • 2-channel R/C system w/ESC
  • Battery pack & charger
