Traxxas ESC Xl-5 Wp (4,8-8,4V) TRX3018R

Valmistaja: Traxxas
Traxxas varaosa ESC Xl-5 Wp (4,8-8,4V): Koodi 3018R
79,10 €
star star star star star
Tuote tilapäisesti loppu
Tuote on tilapäisesti loppu varastostamme ja maahantuojaltamme. Tuotteen saatavuudesta ei tällä hetkellä ole tietoa.

Voit jättää sähköpostiosoitteesi alle, niin saat sähköpostia kun tuote on taas saatavilla.
Lähetä

wishlist Lisää toivelistalle


Tuotekoodi: 3018R
Numero: 423018R
Varastopaikka: B058
Tuotetyyppi: Säädin harjalliselle moottorille
Tuotemerkki: Traxxas
RC-autojen varaosalistaus: Traxxas Stampede 36054-8

Tekniset tiedot Arvostelut

Tekniset tiedot

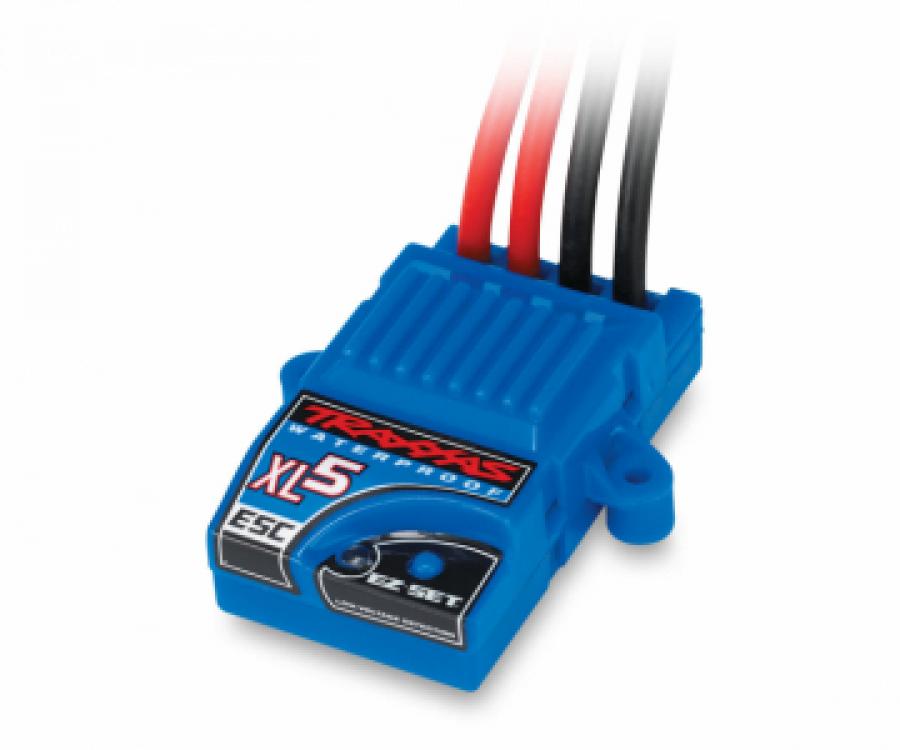

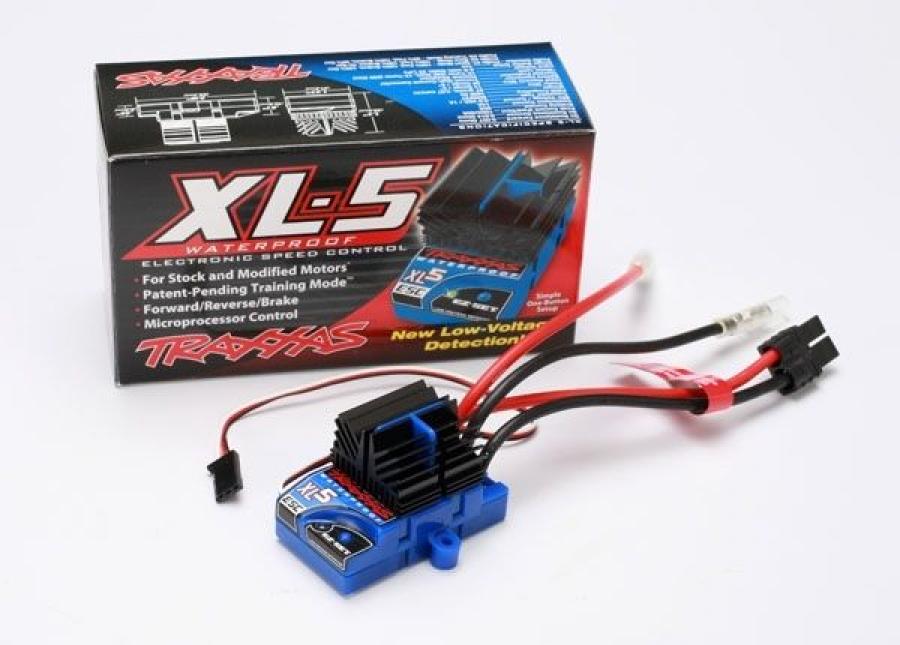

XL-5™ Waterproof FWD/REV ESC
with Low Voltage Detection (LVD)

XL-5 Waterproof Electronic Speed ControlDesigned and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, Thermal Shutdown Protection, 4-7 cell compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patented Training Mode™. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. XL-5 is equipped with two-stage low-voltage detection (LVD) to allow LiPo battery use. The XL-5 is manufactured by Traxxas to ensure the highest level of quality and support. The XL-5 is backed by the Traxxas Lifetime Electronics Warranty.

Traxxas High-Current Connector


Traxxas High-Current Connector*
The XL-5 ESC is equipped with the patented Traxxas high-current connectors for restriction-free current flow.

Click here for more info about the patented Traxxas High-Current Connertor.





Patented Training Mode™
An exclusive feature that places the XL-5 ahead of the pack is the patented Training Mode. This feature reduces the overall power output of the XL-5 by 50% making it easier for new drivers to control their model.  When they're ready, simply change profiles to unleash full-throttle action.  Only Traxxas has it!

XL-5 LVD Waterproof ESC Features

  • Built-in two-stage low voltage detection (LVD)
    for Lithium Polymer (LiPo) battery use
  • Innovative watersealed design
  • 15-turn motor limit for 540 size motors
  • 12-turn motor limit for 550 size motors
  • Fully-proportional forward, reverse, and braking control
  • Programmable with three drive profiles:
    • Sport Mode – Fwd / Brake / Rev
    • Race Mode – Fwd / Brake
    • Training Mode* – 50% Fwd / Brake / 50% Rev
  • EZ-Set® push-button setup
  • Multi-color LED
  • Thermal shutdown protection
  • Efficient, low-loss MOSFET design
  • Smooth, high-frequency operation
  • Easy installation in Traxxas models
  • Backed by the Traxxas Lifetime Electronics warranty



XL-5 LVD WATERPROOF ESC SPECIFICATIONS
Input voltage:­4-7 Cells (4.8 to 8.4 Volts DC)
Case Size:­1.23"W x 2.18"D x 0.61" H
Weight:­2.44 Ounce
Motor Limit:­15-turns** (540 Size)
12-turns** (550 Size)
On Resistance Forward:­0.007 Ohms
On Resistance Reverse:­0.014 Ohms
BEC Voltage:­6.0 VDC
BEC Current:­1A
Power Wire:­14 Gauge / 5"
Input Harness Wire:­26 Gauge / 9"
PWM Frequency:­1600 Hz
Low Voltage Detection (LVD):­2-Stage indicators, switchable (on or off)
Thermal Protection:­Thermal shutdown
Profile selection:­Sport Mode:
    100% FWD, 100% brakes, 100% REV
Race Mode:
    100% FWD, 100% brakes, no REV
Training Mode:*
    50% FWD, 100% brakes, 50% REV
Single-button setup:­Yes, Traxxas EZ-Set®
­
